Are there any limitations to using super elastic nitinol springs?

Understanding the Nature of Super Elastic Nitinol Springs

Composition and Structure of Nitinol

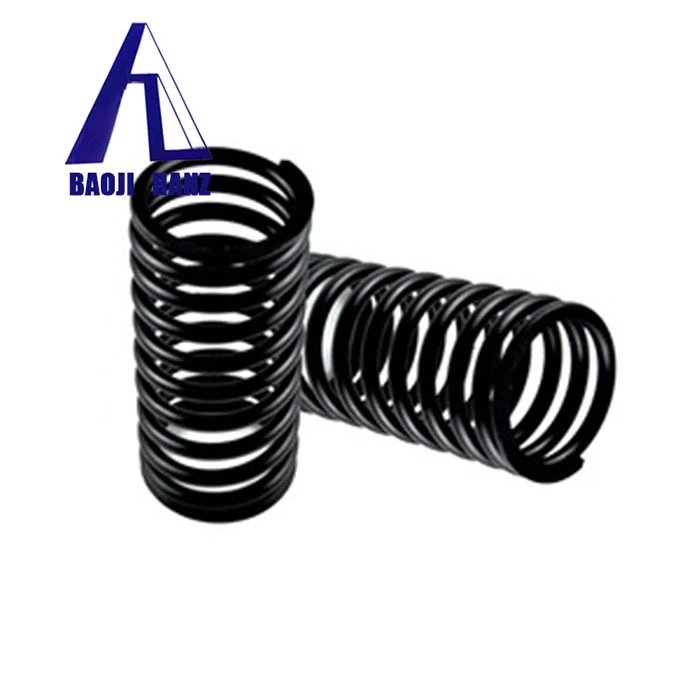

Super elastic nitinol springs are composed of a near-equiatomic alloy of nickel and titanium. This unique composition gives rise to its extraordinary properties, including shape memory and superelasticity. The crystal structure of nitinol undergoes a reversible phase transformation between austenite and martensite, which is the key to its behavior. At higher temperatures, nitinol exists in the austenite phase, while at lower temperatures or under stress, it transforms into the martensite phase. This phase transformation is responsible for the material's ability to recover large strains and return to its original shape.

Superelasticity Phenomenon

The superelasticity of nitinol springs is a result of stress-induced martensite formation. When a load is applied to a nitinol spring in its austenitic state, it undergoes a phase transformation to martensite. This allows the spring to accommodate large deformations without permanent plastic deformation. Upon removal of the load, the material reverts to its austenitic phase, recovering its original shape. This unique behavior enables nitinol springs to withstand strains up to 8%, significantly higher than conventional spring materials like stainless steel or copper alloys.

Advantages of Super Elastic Nitinol Springs

Super elastic nitinol springs offer numerous advantages over traditional spring materials. Their ability to recover from large deformations makes them ideal for applications requiring high flexibility and resilience. These springs exhibit excellent corrosion resistance, biocompatibility, and fatigue resistance. They also possess a high strength-to-weight ratio, making them suitable for lightweight designs. The shape memory effect of nitinol allows for the creation of actuators and adaptive structures. These properties have led to the widespread use of nitinol springs in medical devices, aerospace applications, and consumer electronics.

Limitations of Super Elastic Nitinol Springs

Temperature Sensitivity

One of the primary limitations of super elastic nitinol springs is their temperature sensitivity. The superelastic behavior of nitinol is highly dependent on the ambient temperature. The transformation temperatures of nitinol can vary depending on its composition and processing history. If the operating temperature falls below the austenite finish temperature (Af), the spring may not exhibit its full superelastic properties. Conversely, if the temperature exceeds the martensite deformation temperature (Md), the material may undergo plastic deformation instead of reversible martensitic transformation. This temperature dependence can limit the use of nitinol springs in environments with extreme or fluctuating temperatures.

Stress-Induced Martensite Stabilization

Another limitation of super elastic nitinol springs is the phenomenon of stress-induced martensite stabilization. When nitinol is subjected to cyclic loading or held under stress for extended periods, some of the stress-induced martensite may become stabilized. This can result in incomplete shape recovery and a gradual degradation of the superelastic properties. The extent of this effect depends on factors such as the magnitude of stress, duration of loading, and the number of cycles. In applications requiring long-term stability or frequent cycling, this limitation must be carefully considered and mitigated through proper design and material selection.

Fatigue Behavior

While nitinol generally exhibits good fatigue resistance, the fatigue behavior of super elastic nitinol springs can be complex and challenging to predict. The cyclic loading of nitinol involves repeated phase transformations, which can lead to localized stress concentrations and the accumulation of defects. Factors such as surface finish, heat treatment, and loading conditions can significantly influence the fatigue life of nitinol springs. Additionally, the fatigue behavior of nitinol is sensitive to the mean stress and strain amplitude. Designing for long-term reliability in applications involving cyclic loading requires careful consideration of these factors and extensive fatigue testing.

Practical Considerations for Using Super Elastic Nitinol Springs

Cost and Availability

The cost of super elastic nitinol springs is generally higher than that of conventional spring materials. The complex processing required to produce nitinol with specific properties contributes to its higher price point. Additionally, the availability of nitinol in various forms and compositions may be limited compared to more common materials. These factors can impact the economic feasibility of using nitinol springs in certain applications, particularly in high-volume or cost-sensitive products. However, the unique properties and performance advantages of nitinol often justify the higher cost in specialized applications where conventional materials fall short.

Manufacturing and Processing Challenges

The manufacturing and processing of super elastic nitinol springs present several challenges. The shape memory and superelastic properties of nitinol are highly sensitive to the material's composition, heat treatment, and mechanical processing. Achieving consistent and reproducible properties requires precise control over these parameters. Machining and forming nitinol can be difficult due to its high strength and work-hardening tendency. Specialized techniques such as electrical discharge machining (EDM) or laser cutting are often necessary for complex geometries. Heat treatment processes must be carefully optimized to achieve the desired transformation temperatures and mechanical properties. These manufacturing complexities can lead to longer lead times and higher production costs compared to conventional spring materials.

Design Considerations

Designing with super elastic nitinol springs requires a thorough understanding of the material's unique behavior. The non-linear stress-strain relationship of nitinol differs significantly from that of conventional elastic materials. This necessitates specialized design approaches and analysis techniques. Factors such as the operating temperature range, expected strain levels, and cyclic loading conditions must be carefully considered. The shape memory effect of nitinol can also be utilized in certain designs, but it requires precise control of the transformation temperatures. Designers must account for the potential variations in material properties and ensure that the spring's performance remains consistent across the expected range of operating conditions. Collaboration with nitinol material experts and extensive prototyping and testing are often necessary to optimize the design of nitinol spring-based components.

Conclusion

Super elastic nitinol springs offer remarkable properties that enable innovative solutions in various fields. However, their use comes with certain limitations that must be carefully considered. By understanding these constraints and implementing appropriate design strategies, engineers can harness the full potential of nitinol springs while mitigating potential drawbacks. As research in this field continues to advance, we can expect further improvements in nitinol spring technology, expanding their applications and overcoming current limitations. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
