Can high tension Nitinol springs be customized for specific applications?

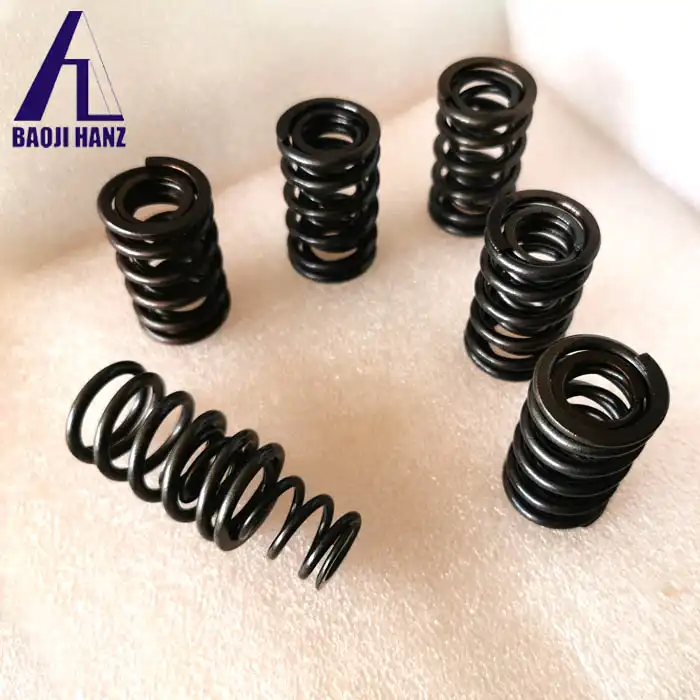

Understanding High Tension Nitinol Springs

Composition and Properties of Nitinol

Nitinol, an equiatomic alloy of nickel and titanium, exhibits remarkable properties that set it apart from conventional spring materials. Its shape memory effect allows it to return to a predetermined shape when heated, while its superelasticity enables it to undergo large deformations without permanent damage. These characteristics make Nitinol springs ideal for applications requiring high tension and resilience, especially in environments where traditional materials may fail due to fatigue or deformation.Additionally, the alloy's ability to function reliably over a wide range of temperatures further enhances its suitability for diverse industries, including medical devices, robotics, and aerospace.

Advantages of High Tension Nitinol Springs

High tension Nitinol springs offer numerous advantages over traditional spring materials. They possess excellent fatigue resistance, biocompatibility, and corrosion resistance, making them suitable for demanding environments such as in the human body or underwater. Their ability to store large amounts of elastic energy in a compact form factor makes them particularly suitable for applications with space constraints, such as miniaturized devices or compact mechanical systems. Moreover, their unique properties allow for the creation of springs with variable spring rates and non-linear force-displacement characteristics, providing engineers with enhanced control over system behavior. These attributes are particularly advantageous in fields such as robotics, automotive engineering, and consumer electronics, where precise performance is critical.

Limitations and Considerations

Despite their many benefits, high tension Nitinol springs have certain limitations that must be considered during customization. The material's sensitivity to temperature changes can affect its performance in extreme environments, necessitating careful thermal management to ensure consistent function. Additionally, the complex manufacturing process and higher material costs compared to conventional spring materials may impact the overall design and production of customized Nitinol springs. The alloy’s processing requires specific conditions to achieve the desired mechanical properties, and any variation can lead to suboptimal performance. These factors must be carefully considered when evaluating Nitinol for specific applications to ensure cost-effectiveness and reliability in the final product.

Customization Possibilities for High Tension Nitinol Springs

Tailoring Geometric Parameters

Customizing high tension Nitinol springs often begins with adjusting their geometric parameters. Engineers can modify the wire diameter, coil diameter, pitch, and number of active coils to achieve desired spring characteristics. By fine-tuning these parameters, it's possible to create springs with specific force-deflection profiles, natural frequencies, and energy storage capacities tailored to the application's requirements. Additionally, adjusting the geometry can influence the spring's stability, durability, and resistance to deformation under high loads, providing a critical advantage in precision applications such as medical devices or aerospace systems where reliability is essential. The flexibility in geometry ensures that the springs meet both performance and space constraints.

Modifying Material Composition

The composition of Nitinol can be adjusted to alter its transformation temperatures and mechanical properties. By varying the nickel-titanium ratio or introducing ternary elements, manufacturers can create high tension springs with customized activation temperatures and stress-strain behaviors. This level of material customization allows for the development of springs that perform optimally under specific operating conditions, whether in extreme temperatures or high-stress environments. The ability to fine-tune the alloy's phase transition characteristics, such as the temperature at which the shape memory effect activates, allows for better performance in applications ranging from robotics to medical stents, where precise control over mechanical behavior is essential.

Thermo-mechanical Processing

Thermo-mechanical processing plays a crucial role in customizing high tension Nitinol springs. Heat treatments, such as shape-setting and aging, can be employed to program the desired shape memory effect and adjust the spring's mechanical properties. Cold working and subsequent annealing processes can also be used to fine-tune the superelastic behavior and strength of the springs, enabling precise control over their performance characteristics. By carefully controlling the processing parameters, engineers can optimize the spring's response to different loads and temperatures, ensuring consistent behavior and performance over its lifecycle. This processing flexibility is vital for applications requiring springs to maintain their functionality under challenging conditions, such as in medical devices or aerospace components, where reliability and performance are non-negotiable.

Applications of Customized High Tension Nitinol Springs

Medical Devices and Implants

The biocompatibility and unique properties of Nitinol make it an excellent choice for medical applications. Customized high tension Nitinol springs are widely used in minimally invasive surgical instruments, orthodontic archwires, and cardiovascular stents. These springs can be tailored to provide gentle, constant forces for tissue manipulation or to expand and contract in response to body temperature, enhancing the functionality and efficacy of medical devices. The shape memory effect of Nitinol allows these springs to return to their original form after deformation, which is especially beneficial in stents, where the material can expand once implanted to hold blood vessels open. Similarly, in orthodontics, Nitinol archwires apply constant pressure to teeth, aiding in gradual alignment with minimal discomfort. These springs' ability to operate in dynamic, biological environments further ensures their versatility and dependability in medical fields.

Aerospace and Automotive Industries

In aerospace and automotive applications, weight reduction and reliability are paramount. Customized high tension Nitinol springs offer solutions for vibration damping, thermal actuation, and energy absorption systems. Their ability to withstand high stresses and operate in extreme temperatures makes them ideal for use in aircraft landing gear, engine mounts, and automotive suspension systems, where they can be tailored to provide specific performance characteristics under varying conditions. The superelasticity of Nitinol also allows for greater shock absorption and resistance to fatigue, key attributes in applications that undergo repetitive loads, like vehicle suspension systems or aircraft components. Moreover, Nitinol’s shape memory properties make it an ideal candidate for thermal actuators, where temperature changes can drive mechanical movements without additional power sources, contributing to the energy efficiency of aerospace and automotive systems.

Consumer Electronics and Robotics

The miniaturization trend in consumer electronics and the growing field of robotics benefit greatly from customized high tension Nitinol springs. These springs can be designed to provide precise actuation in compact spaces, making them suitable for camera autofocus mechanisms, haptic feedback devices, and microrobotic applications. By customizing the spring properties, engineers can create innovative solutions for energy-efficient actuators and adaptive structures in next-generation electronic devices and robotic systems. Nitinol's ability to change shape in response to small temperature variations or electrical inputs is being leveraged in applications such as mobile devices, wearables, and small robotic motors, where space is limited, but precision and reliability are essential. The material's superelastic properties also make it ideal for creating adaptive and self-repairing components, which can automatically recover from deformations in consumer electronics and robotic systems, ensuring longevity and reducing maintenance.

Conclusion

High tension Nitinol springs offer unparalleled customization possibilities, enabling engineers to tailor their properties for specific applications across various industries. From medical devices to aerospace components, these springs provide innovative solutions to complex engineering challenges. As research in Nitinol technology continues to advance, we can expect even more sophisticated customization techniques and applications to emerge in the future. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
