Can Nitinol sheets be actuated with electricity?

Understanding Shape Memory Nitinol Sheets

The Composition and Structure of Nitinol

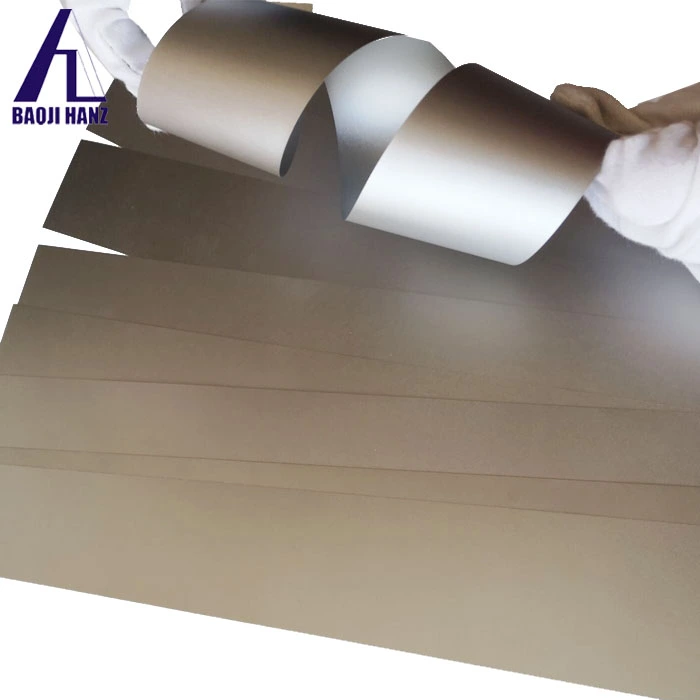

Shape memory Nitinol sheets are composed of nearly equal parts nickel and titanium. This unique alloy exhibits a crystalline structure that can transition between two distinct phases: austenite and martensite. The austenite phase occurs at higher temperatures and is characterized by a more rigid, cubic crystal structure. Conversely, the martensite phase, present at lower temperatures, features a more flexible, monoclinic crystal structure. This phase transition is the key to Nitinol's shape memory and superelastic properties.

The Shape Memory Effect Explained

The shape memory effect in Nitinol sheets is a result of the material's ability to "remember" its original shape after deformation. When a Nitinol sheet is cooled below its transformation temperature, it enters the martensite phase and becomes easily deformable. Upon heating above the transformation temperature, the material reverts to its austenite phase, recovering its original shape. This remarkable property allows Nitinol sheets to be programmed with specific shapes that can be triggered by temperature changes.

Superelasticity in Nitinol Sheets

Superelasticity is another notable characteristic of Nitinol sheets. This property allows the material to undergo large deformations without permanent damage. When stress is applied to a Nitinol sheet in its austenite phase, it can transform into the martensite phase, accommodating significant strain. Upon removal of the stress, the material immediately reverts to its original austenite structure and shape. This behavior makes Nitinol sheets ideal for applications requiring high flexibility and resilience.

Electrical Actuation of Nitinol Sheets

The Principle of Joule Heating

Electrical actuation of shape memory Nitinol sheets primarily relies on the principle of Joule heating. When an electric current passes through a Nitinol sheet, it encounters electrical resistance, which generates heat. This heat causes the temperature of the Nitinol to rise, potentially triggering the shape memory effect. The amount of heat generated is proportional to the square of the current and the electrical resistance of the material. By controlling the applied current, it's possible to precisely regulate the temperature and, consequently, the shape transformation of the Nitinol sheet.

Factors Affecting Electrical Actuation

Several factors influence the electrical actuation of Nitinol sheets. The Shape memory nitinol sheet's dimensions, particularly its thickness and length, play a crucial role in determining its electrical resistance and heat distribution. The ambient temperature and thermal conductivity of the surrounding environment also affect the efficiency of electrical actuation. Furthermore, the specific composition and processing history of the Nitinol alloy can impact its transformation temperatures and response to electrical stimulation. Engineers must carefully consider these factors when designing electrically actuated Nitinol sheet systems.

Control Mechanisms for Electrical Actuation

Precise control of electrical actuation in Nitinol sheets requires sophisticated mechanisms. Pulse Width Modulation (PWM) is a commonly employed technique that allows for fine-tuning of the applied current. By rapidly switching the current on and off at varying intervals, PWM can regulate the average power delivered to the Nitinol sheet, enabling precise temperature control. Feedback systems incorporating temperature sensors or strain gauges can provide real-time data on the sheet's state, allowing for closed-loop control of the actuation process. These control mechanisms are essential for achieving reliable and repeatable actuation in practical applications.

Applications and Implications of Electrically Actuated Nitinol Sheets

Aerospace and Aviation Innovations

The aerospace industry has shown significant interest in electrically actuated Nitinol sheets. These materials offer potential for creating morphing aircraft structures that can adapt to different flight conditions. For instance, Shape memory nitinol sheets could be used in adaptive wing designs that change shape in response to electrical signals, optimizing aerodynamic performance across various flight regimes. Additionally, Nitinol-based actuators could replace heavier and more complex hydraulic or pneumatic systems in aircraft control surfaces, leading to weight reduction and improved fuel efficiency.

Medical Devices and Bioengineering

In the medical field, electrically actuated Nitinol sheets present exciting possibilities. Minimally invasive surgical tools utilizing Nitinol sheets can be designed to change shape upon electrical stimulation, allowing for precise navigation through complex anatomical structures. Stents made from Nitinol sheets could be electrically activated to expand or contract, providing dynamic support to blood vessels or other bodily passages. The biocompatibility of Nitinol, coupled with its electrical actuation capability, opens avenues for developing advanced implantable devices that can adapt to physiological changes in real-time.

Robotics and Automation Advancements

The field of robotics stands to benefit greatly from electrically actuated Nitinol sheets. Soft robotics, in particular, can leverage the flexibility and controllability of these materials to create highly adaptable and compliant robotic structures. Nitinol sheet-based actuators could enable the development of robotic grippers that can delicately handle objects of varying shapes and sizes. In automation systems, Nitinol sheets could serve as compact, low-profile actuators for precise positioning and movement control, offering advantages over traditional motor-based systems in certain applications.

Conclusion

Shape memory nitinol sheets represent a frontier in smart materials technology. Their unique ability to change shape in response to electrical stimulation opens up a myriad of possibilities across diverse industries. As research in this field progresses, we can anticipate increasingly sophisticated applications that harness the full potential of these remarkable materials, pushing the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
