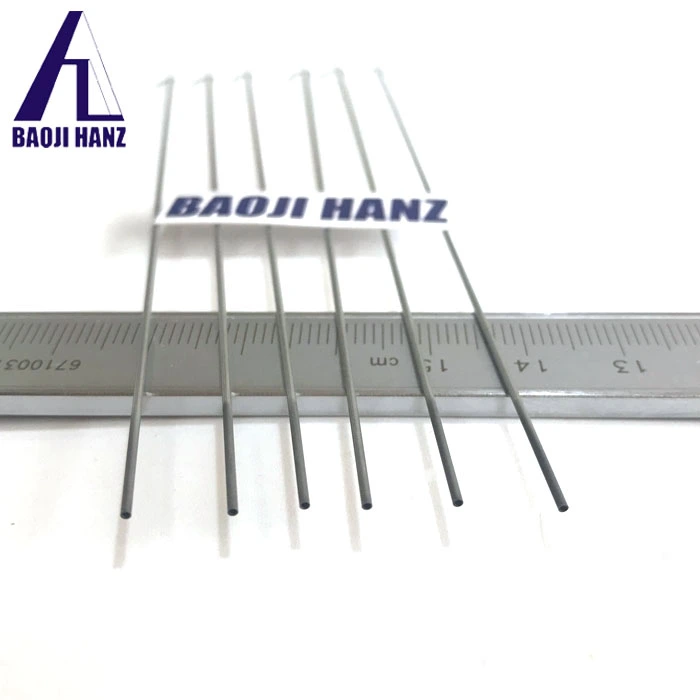

Can Ti-Ni1 Super Elastic Nitinol Tubes be used in high-temperature environments?

Ti-Ni1 Super Elastic Nitinol Tubes, renowned for their unique properties, have garnered significant attention in various industries. When considering their application in high-temperature environments, it's crucial to understand their thermal limitations. While these tubes exhibit exceptional superelasticity and shape memory effects at lower temperatures, their performance can be affected by elevated heat. Typically, it maintain their superelastic properties up to approximately 100°C (212°F). Beyond this temperature, the material's crystal structure begins to change, potentially altering its mechanical behavior. However, it's worth noting that certain heat treatments and alloying techniques can enhance the high-temperature stability of Nitinol, allowing for use in moderately elevated temperature applications. For extreme high-temperature environments, alternative materials or specialized Nitinol compositions may be more suitable. The specific requirements of the application, including the exact temperature range and duration of exposure, should be carefully evaluated when considering Ti-Ni1 Super Elastic Nitinol Tubes for high-temperature use.

Thermal Characteristics of Ti-Ni1 Super Elastic Nitinol Tubes

Crystal Structure and Phase Transformations

The remarkable properties of Ti-Ni1 Super Elastic Nitinol Tubes stem from their unique crystal structure and phase transformations. At room temperature, these tubes typically exist in the austenite phase, characterized by a cubic crystal structure. As the temperature decreases or stress is applied, the material undergoes a martensitic transformation, shifting to a monoclinic crystal structure. This phase change is responsible for the superelastic behavior and shape memory effect observed in Nitinol alloys.The transformation temperatures, including the austenite start (As), austenite finish (Af), martensite start (Ms), and martensite finish (Mf) temperatures, play a crucial role in determining the behavior of it. These temperatures can be tailored through composition adjustments and thermomechanical treatments, allowing for customization of the material's properties for specific applications.

Temperature-Dependent Mechanical Properties

The mechanical properties of Ti-Ni1 Super Elastic Nitinol Tubes exhibit significant temperature dependence. As the temperature increases, the yield strength and elastic modulus of the material tend to decrease. This phenomenon is attributed to the increased mobility of atoms and dislocations at higher temperatures, which facilitates plastic deformation.Furthermore, the superelastic behavior of Nitinol is closely linked to the material's temperature relative to its transformation temperatures. The superelastic effect is most pronounced when the material is slightly above its Af temperature. As the temperature rises further above Af, the stress required to induce the martensitic transformation increases, potentially leading to a reduction in the superelastic strain recovery.

Thermal Stability and Aging Effects

When exposed to elevated temperatures for extended periods, Ti-Ni1 Super Elastic Nitinol Tubes may experience thermal aging effects. This aging process can result in changes to the material's microstructure, such as the formation of precipitates or the growth of existing precipitates. These microstructural changes can alter the transformation temperatures and mechanical properties of the Nitinol tubes.Prolonged exposure to high temperatures may lead to a phenomenon known as "functional fatigue," where the material's ability to undergo repeated shape recovery or superelastic cycles diminishes over time. This effect is particularly relevant in applications where the Nitinol tubes are subjected to cyclic loading at elevated temperatures.

High-Temperature Applications and Limitations

Current High-Temperature Use Cases

Despite the challenges associated with high-temperature environments, Ti-Ni1 Super Elastic Nitinol Tubes have found applications in several industries where moderate heat resistance is required. In the aerospace sector, these tubes are utilized in hydraulic and pneumatic systems, where their superelasticity and fatigue resistance offer advantages over conventional materials. The automotive industry has also adopted Nitinol tubes for various components, including thermal actuators and engine mounts, which may be exposed to elevated temperatures during operation.In the medical field, Ti-Ni1 Super Elastic Nitinol Tubes are employed in devices that may be subjected to sterilization processes, such as autoclaving. While these procedures typically involve temperatures around 121°C (250°F), the exposure time is relatively short, allowing the Nitinol components to maintain their functionality. Additionally, certain oil and gas exploration tools incorporate Nitinol tubes for their unique properties, even in environments with moderately elevated temperatures.

Temperature Thresholds and Performance Degradation

The performance of Ti-Ni1 Super Elastic Nitinol Tubes begins to degrade as temperatures approach and exceed certain thresholds. The austenite finish temperature (Af) serves as a critical reference point, as it marks the temperature at which the material fully transforms into the austenite phase. For many commercial Nitinol alloys, the Af temperature typically ranges from 0°C to 100°C (32°F to 212°F), depending on the specific composition and processing history.As the operating temperature surpasses the Af temperature, the stress required to induce the martensitic transformation increases, potentially reducing the material's superelastic strain recovery. Furthermore, at temperatures above approximately 150°C to 200°C (302°F to 392°F), the risk of permanent deformation and microstructural changes becomes more pronounced. These changes can lead to alterations in the material's mechanical properties and functional characteristics.

Strategies for Enhancing High-Temperature Performance

To expand the high-temperature capabilities of Ti-Ni1 Super Elastic Nitinol Tubes, researchers and engineers have developed several strategies. One approach involves alloying Nitinol with ternary elements such as hafnium, zirconium, or palladium. These additions can increase the transformation temperatures and improve the material's stability at elevated temperatures.Another method for enhancing high-temperature performance is through specialized heat treatments and thermomechanical processing. By carefully controlling the material's microstructure and precipitation behavior, it is possible to optimize its properties for specific temperature ranges. Additionally, surface treatments and coatings can be applied to Nitinol tubes to provide an extra layer of protection against high-temperature environments, potentially extending their operational range.

Considerations for Implementing Ti-Ni1 Super Elastic Nitinol Tubes in High-Temperature Environments

Material Selection and Composition Optimization

When considering the use of Ti-Ni1 Super Elastic Nitinol Tubes in high-temperature environments, careful material selection and composition optimization are paramount. The specific Nitinol alloy should be chosen based on the intended operating temperature range and desired mechanical properties. Fine-tuning the nickel-titanium ratio and incorporating small amounts of tertiary elements can significantly influence the material's transformation temperatures and high-temperature stability.Collaborating with material scientists and Nitinol suppliers, such as Baoji Hanz Metal Material Co., Ltd., can provide valuable insights into selecting the most appropriate alloy composition for a given high-temperature application. These experts can offer guidance on tailoring the material's properties to meet specific performance requirements while maximizing its temperature resistance.

Design Considerations and Safety Factors

Implementing Ti-Ni1 Super Elastic Nitinol Tubes in high-temperature environments requires careful consideration of design parameters and safety factors. Engineers must account for potential changes in material properties at elevated temperatures, such as reduced yield strength and elastic modulus. Incorporating appropriate safety margins in the design can help mitigate risks associated with these property changes.Furthermore, the thermal expansion behavior of Nitinol should be taken into account, particularly in applications where the material interfaces with other components. Proper accommodation of thermal expansion differences can prevent undue stresses and potential failure modes in high-temperature assemblies.

Testing and Validation Protocols

Rigorous testing and validation protocols are essential when evaluating the suitability of Ti-Ni1 Super Elastic Nitinol Tubes for high-temperature applications. These protocols should include both short-term and long-term exposure tests to assess the material's performance under various thermal conditions. Cyclic loading tests at elevated temperatures can provide valuable insights into the material's fatigue resistance and functional stability over time.Advanced characterization techniques, such as differential scanning calorimetry (DSC) and dynamic mechanical analysis (DMA), can be employed to monitor changes in transformation temperatures and mechanical properties as a function of temperature exposure. Additionally, microstructural analysis using techniques like transmission electron microscopy (TEM) can reveal any structural changes or precipitation phenomena that may occur during high-temperature service.

Conclusion

Ti-Ni1 Super Elastic Nitinol Tubes offer unique properties that make them attractive for various applications, including those involving moderate temperature elevations. While their use in extreme high-temperature environments is limited, ongoing research and development efforts continue to expand their operational range. By carefully considering material selection, design parameters, and conducting thorough testing, engineers can effectively leverage the advantages of Nitinol tubes in select high-temperature applications. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1. Otsuka, K., & Ren, X. (2005). Physical metallurgy of Ti–Ni-based shape memory alloys. Progress in Materials Science, 50(5), 511-678.

2. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical uses of nitinol. Materials Science Forum, 327, 63-70.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

4. Miyazaki, S., Kim, H. Y., & Hosoda, H. (2006). Development and characterization of Ni-free Ti-base shape memory and superelastic alloys. Materials Science and Engineering: A, 438, 18-24.

5. Favier, D., Liu, Y., Orgéas, L., Sandel, A., Debry, L., & Charveteau, P. (2006). Influence of thermomechanical processing on the superelastic properties of a Ni-rich Nitinol shape memory alloy. Materials Science and Engineering: A, 429(1-2), 130-136.

6. Elahinia, M. H., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2012). Manufacturing and processing of NiTi implants: A review. Progress in Materials Science, 57(5), 911-946.
