Can you bend and reshape a nitinol SMA rod?

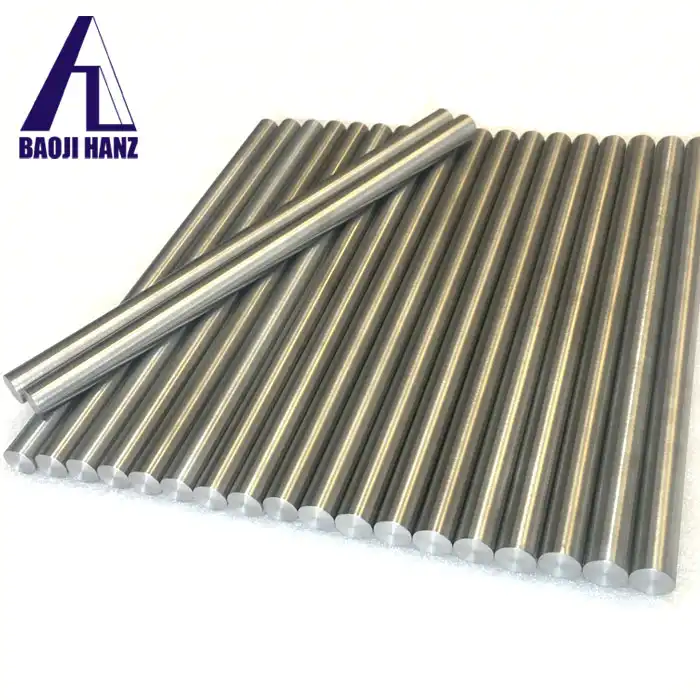

Understanding Nitinol SMA Rods: Composition and Properties

The Chemistry Behind Nitinol

Nitinol, an acronym for Nickel Titanium Naval Ordnance Laboratory, is a remarkable alloy composed of nearly equal atomic percentages of nickel and titanium. This unique composition gives nitinol its extraordinary properties, including shape memory and superelasticity. The intermetallic compound NiTi forms the basis of nitinol, with slight variations in composition affecting its performance characteristics. The crystal structure of nitinol is key to its shape memory behavior. At higher temperatures, nitinol exists in an austenite phase with a cubic crystal structure. When cooled below a critical temperature, it transforms into a martensite phase with a monoclinic crystal structure. This phase transformation is the foundation of nitinol's shape memory effect and its ability to be bent and reshaped.

Superelasticity: A Unique Trait of Nitinol SMA Rods

One of the most striking properties of nitinol SMA rods is their superelasticity. This characteristic allows nitinol to undergo large deformations without permanent plastic deformation. When stress is applied to a nitinol rod in its austenite phase, it can transform into stress-induced martensite. Upon removal of the stress, the material reverts to its original austenite structure, recovering its initial shape. This superelastic behavior enables nitinol niti sma rod to be bent and twisted to a much greater extent than conventional metal alloys. The recovery strain of nitinol can be up to 8%, which is significantly higher than the typical 0.5% elastic strain limit of most metals. This exceptional elasticity makes nitinol ideal for applications requiring large, reversible deformations.

Temperature-Dependent Shape Memory Effect

The shape memory effect of nitinol SMA rods is intrinsically linked to temperature. When a nitinol rod is deformed at a lower temperature in its martensite phase, it retains the deformed shape. However, upon heating above its transformation temperature, the rod "remembers" and returns to its original, pre-deformed shape. This temperature-dependent behavior is due to the reversible austenite-martensite phase transformation. The transformation temperatures can be fine-tuned by adjusting the nickel-titanium ratio and through heat treatment processes. This allows for the creation of nitinol SMA rods with specific activation temperatures tailored to various applications, from body-temperature activated medical devices to high-temperature aerospace components.

Bending and Reshaping Techniques for Nitinol SMA Rods

Cold Working: Shaping at Room Temperature

Cold working is a common method for bending and reshaping nitinol SMA rods at room temperature. This technique takes advantage of the material's superelastic properties, allowing for significant deformation without fracture. When bending a nitinol rod, it's crucial to avoid sharp bends or kinks that could lead to stress concentration and potential failure points. To cold work a nitinol SMA rod, specialized tools and fixtures are often employed to ensure precise and controlled deformation. The process may involve gradual bending around mandrels of various radii or using custom-designed jigs. It's important to note that while cold working can impart new shapes to nitinol rods, the material will still attempt to return to its original shape when heated above its transformation temperature unless properly heat-treated.

Heat Treatment: Setting New Shapes

Heat treatment is a crucial process for permanently setting new shapes in nitinol niti sma rod. This method involves heating the rod to a specific temperature, typically between 400°C and 550°C, while constraining it in the desired shape. The duration of heat treatment can vary from a few minutes to several hours, depending on the thickness of the rod and the desired properties. During heat treatment, the crystal structure of the nitinol is reorganized, effectively "programming" the new shape into the material's memory. After cooling, the rod will now remember this new shape as its austenite phase configuration. Precise control of temperature and time is critical during this process, as overheating can lead to loss of shape memory properties or changes in transformation temperatures.

Annealing for Stress Relief and Property Adjustment

Annealing is another important heat treatment process used in the manipulation of nitinol SMA rods. This technique is employed to relieve internal stresses that may have accumulated during cold working or previous heat treatments. Annealing can also be used to fine-tune the transformation temperatures and mechanical properties of the nitinol rod. The annealing process typically involves heating the nitinol rod to temperatures between 300°C and 800°C, followed by controlled cooling. The specific temperature and duration depend on the desired outcome. Lower temperature annealing can be used for stress relief without significantly altering the shape memory properties, while higher temperature annealing can be employed to adjust transformation temperatures or increase the rod's ductility.

Applications and Limitations of Bending Nitinol SMA Rods

Medical Devices: Precision and Biocompatibility

The ability to bend and reshape nitinol SMA rods has revolutionized the medical device industry. Nitinol's superelasticity and shape memory properties make it ideal for creating minimally invasive surgical instruments, stents, and orthodontic archwires. In these applications, nitinol rods can be bent to navigate complex anatomical structures and then return to their predetermined shapes when deployed or activated by body temperature. For instance, in the field of endodontics, nitinol files can be pre-bent to match the curvature of root canals, providing better access and more efficient cleaning. In cardiovascular applications, nitinol stents can be compressed into a small diameter for insertion through blood vessels and then expand to their full size once in place. The biocompatibility of nitinol further enhances its suitability for long-term implantation in the human body.

Aerospace and Robotics: Smart Structures and Actuators

In aerospace and robotics, the bendability and shape memory properties of nitinol niti sma rod are harnessed to create smart structures and actuators. These rods can be integrated into aircraft wings or spacecraft components to allow for shape changes in response to environmental conditions, improving aerodynamic performance or deployment mechanisms. Robotic systems benefit from nitinol SMA rods as compact, lightweight actuators. By bending the rods into specific shapes and utilizing their temperature-activated shape memory effect, engineers can create silent, smooth-operating joints and grippers. This technology has been applied in everything from miniature surgical robots to large-scale industrial automation systems, showcasing the versatility of bent and reshaped nitinol rods.

Limitations and Considerations in Bending Nitinol SMA Rods

While nitinol SMA rods offer remarkable bendability and reshaping capabilities, there are limitations and considerations to keep in mind. The fatigue life of nitinol can be affected by repeated bending and shape recovery cycles, especially if the material is strained beyond its recoverable limit. This fatigue behavior must be carefully considered in applications where long-term cyclic loading is expected. Another consideration is the potential for changes in transformation temperatures and mechanical properties after extensive bending or heat treatment. These changes can affect the performance of the nitinol rod in its intended application. Additionally, the cost of nitinol and the specialized equipment required for precise shaping and heat treatment can be prohibitive for some applications, necessitating a careful cost-benefit analysis.

Conclusion

The ability to bend and reshape nitinol niti sma rod opens up a world of possibilities in various industries. From medical innovations to aerospace advancements, the unique properties of nitinol continue to push the boundaries of material science. As research progresses, we can expect even more sophisticated applications and refined techniques for manipulating this extraordinary alloy. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
