How are high tension Nitinol springs manufactured?

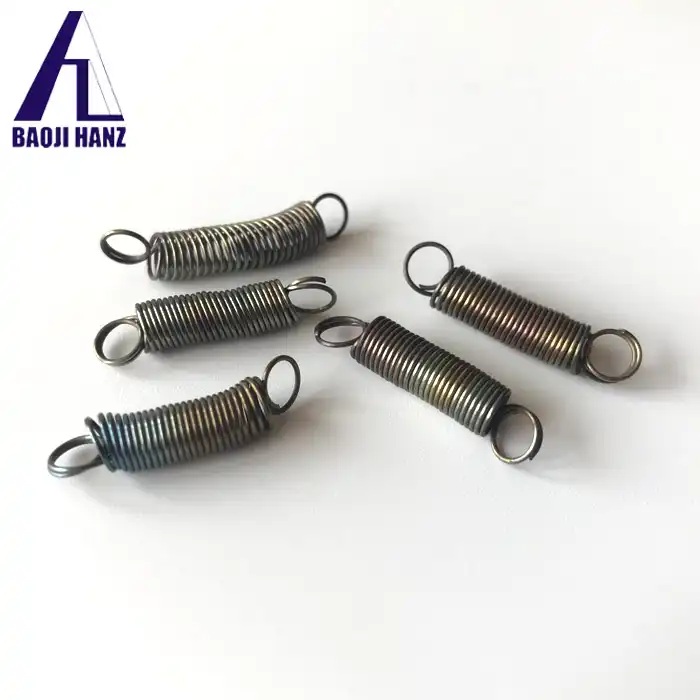

The Nitinol Advantage: Understanding the Material

Composition and Properties of Nitinol

Nitinol, a portmanteau of Nickel Titanium Naval Ordnance Laboratory, is an extraordinary alloy composed of nearly equal parts nickel and titanium. This unique composition endows Nitinol with its remarkable properties, including shape memory and superelasticity. The atomic structure of Nitinol allows it to undergo a reversible phase transformation between austenite and martensite, which is the foundation of its shape memory behavior. This transformation occurs in response to temperature changes or applied stress, enabling Nitinol to "remember" and return to its original shape after deformation.

Superelasticity and Shape Memory Effect

The superelasticity of Nitinol is particularly crucial for high tension springs. This property allows Nitinol to undergo large deformations without permanent damage, recovering its original shape upon removal of the applied stress. The shape memory effect, on the other hand, enables Nitinol to return to a predetermined shape when heated above its transformation temperature. These characteristics make Nitinol springs capable of withstanding extreme tension and repetitive stress cycles, outperforming traditional spring materials in demanding applications.

Advantages Over Conventional Spring Materials

Compared to conventional spring materials like steel or copper alloys, Nitinol offers several distinct advantages. Its superior fatigue resistance allows for longer service life and improved reliability in high-stress environments. The biocompatibility of Nitinol makes it suitable for medical applications, while its corrosion resistance enhances durability in harsh conditions. Additionally, the unique thermomechanical properties of Nitinol enable the creation of springs with variable spring rates and temperature-dependent behaviors, opening up new possibilities in spring design and functionality.

Manufacturing Process: From Raw Material to Finished Spring

Material Preparation and Purification

The manufacturing process of high tension Nitinol springs begins with the careful preparation of raw materials. High-purity nickel and titanium are precisely measured and combined in a vacuum or inert atmosphere to prevent contamination. The melting process typically employs vacuum induction melting (VIM) or vacuum arc remelting (VAR) techniques to ensure homogeneity and minimize impurities. The resulting ingot undergoes multiple remelting cycles to further enhance purity and consistency, as even small variations in composition can significantly affect the alloy's properties.

Wire Drawing and Heat Treatment

Once the Nitinol ingot is formed, it undergoes a series of hot working and cold drawing processes to produce wire of the desired diameter. This step is crucial in developing the microstructure necessary for optimal spring performance. The wire drawing process involves passing the material through progressively smaller dies, which work-hardens the alloy and improves its strength. Intermittent annealing treatments are performed to relieve internal stresses and maintain workability. The final wire diameter is achieved through precise control of drawing forces and heat treatments, ensuring the material possesses the required mechanical properties for high tension spring applications.

Spring Forming and Shape Setting

The Nitinol wire is then formed into the desired spring shape using specialized winding machines. Unlike conventional spring materials, Nitinol requires careful consideration of forming temperatures and stresses to achieve the desired shape memory characteristics. The spring is typically wound at a temperature above its austenite finish temperature to ensure proper shape retention. Following the winding process, the spring undergoes a critical shape-setting heat treatment. This treatment, performed at temperatures typically ranging from 450°C to 550°C, imparts the "memory" of the spring shape into the Nitinol's crystal structure. The duration and temperature of this heat treatment are meticulously controlled to optimize the spring's performance characteristics, including its transition temperatures and force output.

Quality Control and Performance Optimization

Testing and Characterization

Rigorous testing and characterization are essential components in the manufacture of high tension Nitinol springs. Each batch of springs undergoes a battery of tests to ensure compliance with stringent quality standards. Differential scanning calorimetry (DSC) is employed to verify the alloy's transformation temperatures, while tensile testing evaluates mechanical properties such as ultimate tensile strength and elongation. Fatigue testing simulates real-world conditions to assess the spring's longevity and performance under repeated stress cycles. Advanced imaging techniques, including scanning electron microscopy (SEM), may be used to examine the microstructure and surface quality of the springs, ensuring freedom from defects that could compromise performance.

Surface Treatment and Finishing

The surface quality of high tension Nitinol springs plays a crucial role in their performance and durability. Various surface treatments may be applied to enhance specific properties or meet application requirements. Electropolishing is a common technique used to improve corrosion resistance and reduce surface roughness, thereby minimizing potential stress concentration points. For medical applications, passivation treatments may be employed to form a stable oxide layer, further enhancing biocompatibility. In some cases, specialized coatings may be applied to modify friction characteristics or provide additional protection against environmental factors.

Performance Tuning and Customization

The final stage in manufacturing high tension Nitinol springs involves fine-tuning their performance to meet specific application requirements. This may include adjusting the spring's force output, transition temperatures, or fatigue resistance through precise modifications to the heat treatment process or alloy composition. Advanced computer modeling and simulation tools are often employed to predict and optimize spring behavior under various operating conditions. For highly specialized applications, custom alloy formulations may be developed to achieve specific performance characteristics. This level of customization allows manufacturers to produce high tension Nitinol springs tailored to the unique demands of diverse industries, from aerospace to medical devices.

Conclusion

The manufacture of high tension Nitinol springs is a sophisticated process that combines advanced materials science with precision engineering. From careful material selection to innovative forming techniques and rigorous quality control, each step is crucial in producing springs that harness the full potential of Nitinol's remarkable properties. As research in shape memory alloys continues to advance, we can expect further innovations in the manufacturing and application of these extraordinary components. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
