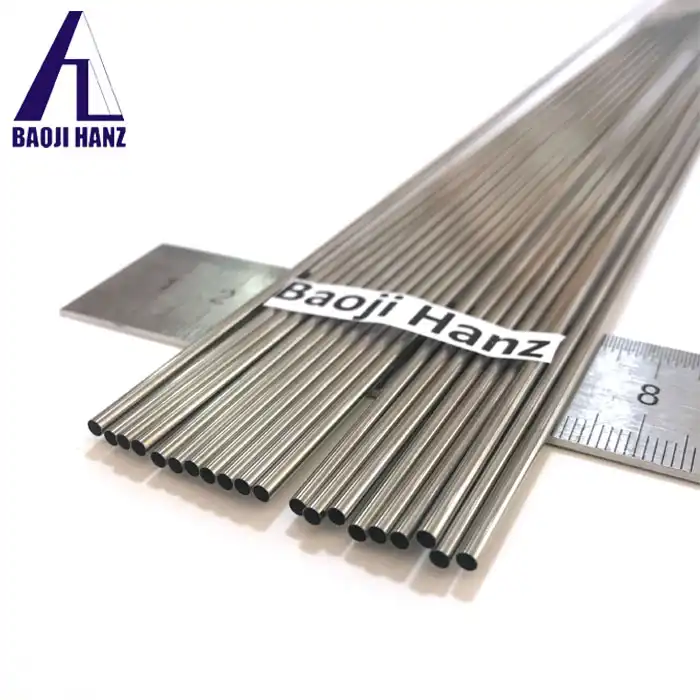

How are Nitinol SMA Tubes manufactured?

Nitinol Shape Memory Alloy (SMA) tubes are manufactured through a sophisticated process that combines precision engineering and advanced metallurgy. The production of these remarkable tubes begins with the careful selection and melting of nickel and titanium in specific proportions, typically around 55% nickel and 45% titanium. This molten alloy is then cast into ingots, which undergo multiple stages of hot working, cold working, and heat treatment to achieve the desired shape and properties. The tube formation process often involves extrusion or drawing techniques, where the material is forced through dies to create hollow cylindrical shapes. Throughout the manufacturing process, strict control of temperature, pressure, and composition is maintained to ensure the unique shape memory and superelastic properties of Nitinol are preserved. The final steps involve precision cutting, surface finishing, and rigorous quality control to meet the exacting standards required for various applications in medical devices, aerospace, and other high-tech industries.

The Unique Properties of Nitinol SMA Tubes

Shape Memory Effect

One of the most fascinating properties of Nitinol SMA tubes is their ability to "remember" and return to a predetermined shape when heated. This phenomenon, known as the shape memory effect, occurs due to the material's unique crystalline structure. At lower temperatures, Nitinol exists in a martensite phase, which is easily deformable. When heated above its transformation temperature, it transitions to the austenite phase, reverting to its original shape. This property makes Nitinol SMA tubes invaluable in applications such as actuators, stents, and temperature-responsive safety devices.

Superelasticity

Another remarkable characteristic of Nitinol SMA tubes is their superelasticity or pseudoelasticity. This property allows the material to undergo large deformations and return to its original shape upon unloading, without permanent damage. Superelastic Nitinol can withstand strains up to 10 times greater than ordinary spring steels. This extraordinary flexibility and resilience make Nitinol SMA tubes ideal for applications in medical devices, orthodontics, and flexible frameworks in various industries.

Biocompatibility

Nitinol SMA tubes possess excellent biocompatibility, making them a preferred choice for medical implants and devices. The material's resistance to corrosion and its ability to form a stable oxide layer contribute to its compatibility with biological tissues. This property, combined with its shape memory and superelastic behavior, has revolutionized minimally invasive medical procedures, enabling the development of self-expanding stents, guidewires, and other innovative medical tools.

Manufacturing Process of Nitinol SMA Tubes

Raw Material Preparation

The manufacturing process of Nitinol SMA tubes begins with the careful selection and purification of nickel and titanium. These elements are combined in precise proportions, typically through vacuum arc remelting (VAR) or vacuum induction melting (VIM) techniques. The melting process is crucial for achieving the desired composition and eliminating impurities that could affect the alloy's properties. The resulting ingot serves as the starting point for the subsequent forming operations.

Hot Working and Cold Working

The Nitinol ingot undergoes a series of hot working processes, such as forging and rolling, to break down its cast structure and improve its mechanical properties. This stage is followed by cold working techniques, including drawing and swaging, which further refine the material's grain structure and enhance its strength. The cold working process is particularly critical in imparting the shape memory and superelastic properties to the Nitinol alloy.

Tube Formation and Heat Treatment

To create Nitinol SMA tubes, the processed material is typically extruded or drawn through specialized dies. This step requires precise control of temperature and pressure to maintain the alloy's unique properties. After forming, the tubes undergo carefully controlled heat treatments, which are essential for setting the shape memory effect and fine-tuning the transformation temperatures. These heat treatments, often performed in vacuum or inert atmospheres, involve complex cycles of heating and cooling that determine the final performance characteristics of the Nitinol SMA tubes.

Applications and Future Prospects of Nitinol SMA Tubes

Medical Devices

Nitinol SMA tubes have found extensive applications in the medical field, revolutionizing minimally invasive procedures. Their use in self-expanding stents for cardiovascular and peripheral vascular treatments has significantly improved patient outcomes. The superelastic nature of Nitinol allows these stents to be compressed into a small diameter for insertion and then expand to their pre-set shape once deployed in the body. Other medical applications include guidewires for catheters, orthodontic archwires, and orthopedic implants, where the material's flexibility and shape memory properties offer unique advantages.

Aerospace and Automotive Industries

In the aerospace sector, Nitinol SMA tubes are utilized in various innovative applications. They serve as actuators in aircraft control surfaces, providing lightweight and compact alternatives to traditional hydraulic systems. The automotive industry is also exploring the potential of Nitinol SMA tubes for smart suspension systems, engine mounts, and climate control components. The material's ability to respond to temperature changes and recover from large deformations makes it an attractive option for creating adaptive and energy-efficient vehicle systems.

Emerging Technologies and Research

The unique properties of Nitinol SMA tubes continue to inspire new applications and research directions. In the field of robotics, these materials are being investigated for creating soft, flexible actuators that mimic biological movements. Environmental sensors utilizing the temperature-sensitive properties of Nitinol are being developed for various monitoring applications. Additionally, researchers are exploring the potential of Nitinol SMA tubes in energy harvesting devices, leveraging their ability to convert thermal energy into mechanical work. As manufacturing techniques advance and our understanding of these materials deepens, the potential applications for Nitinol SMA tubes are likely to expand even further, promising exciting developments across multiple industries.

Conclusion

The manufacturing of Nitinol SMA tubes represents a pinnacle of metallurgical engineering, combining advanced materials science with precision fabrication techniques. These remarkable components, with their shape memory effect, superelasticity, and biocompatibility, continue to drive innovation across medical, aerospace, and emerging technology sectors. As research progresses and manufacturing processes evolve, Nitinol SMA tubes are poised to play an increasingly vital role in shaping the future of smart materials and adaptive systems. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1.Johnson, A.D., "State-of-the-Art of Shape Memory Alloys for Biomedical Applications," Journal of Materials Engineering and Performance, Vol. 18, No. 5-6, 2009.

2.Pelton, A.R., et al., "Medical Uses of Nitinol," Materials Science Forum, Vol. 327-328, 2000.

3.Otsuka, K. and Ren, X., "Physical metallurgy of Ti–Ni-based shape memory alloys," Progress in Materials Science, Vol. 50, No. 5, 2005.

4.Mohd Jani, J., et al., "A review of shape memory alloy research, applications and opportunities," Materials & Design, Vol. 56, 2014.

5.Lagoudas, D.C., "Shape Memory Alloys: Modeling and Engineering Applications," Springer Science & Business Media, 2008.

6.Duerig, T.W., et al., "Engineering Aspects of Shape Memory Alloys," Butterworth-Heinemann, 1990.
