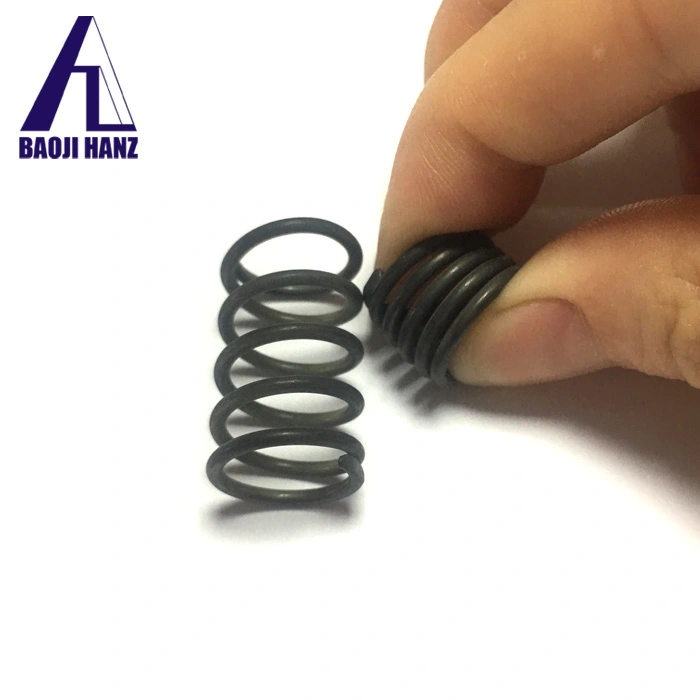

How are OEM Nitinol compression springs manufactured?

Material Selection and Preparation for OEM Nitinol Compression Springs

Choosing the Right Nitinol Composition

The manufacturing process of OEM Nitinol compression springs begins with selecting the appropriate Nitinol alloy composition. Nitinol, a portmanteau of Nickel and Titanium, typically consists of approximately 55-56% nickel and 44-45% titanium. However, the exact composition can be fine-tuned to achieve specific properties required for the intended application. Factors such as transformation temperatures, superelasticity, and fatigue resistance are carefully considered when determining the ideal alloy ratio. Manufacturers often work closely with metallurgists to develop custom Nitinol formulations that meet the unique requirements of OEM compression springs. This may involve adding trace elements like copper, iron, or niobium to modify the alloy's characteristics. The goal is to create a material that exhibits the desired balance of shape memory effect, superelasticity, and mechanical strength for the specific spring application.

Nitinol Wire Drawing and Cold Working

Once the appropriate Nitinol composition is selected, the raw material is processed into wire form through a series of drawing operations. This process involves pulling the Nitinol through progressively smaller dies to reduce its diameter and increase its length. The wire drawing process is crucial in achieving the desired mechanical properties and dimensional accuracy of the final spring. Cold working techniques, such as wire drawing and swaging, are employed to strengthen the Nitinol wire and impart specific mechanical characteristics. These processes alter the material's microstructure, increasing its yield strength and modifying its superelastic behavior. The degree of cold work applied to the Nitinol wire is carefully controlled, as it significantly influences the spring's performance and shape memory properties.

Heat Treatment and Shape Setting

Heat treatment is a critical step in the manufacturing of OEM Nitinol compression springs. This process involves heating the Nitinol wire to a specific temperature, typically between 400°C and 550°C, for a predetermined duration. The heat treatment serves multiple purposes, including relieving internal stresses induced during cold working, setting the desired shape of the spring, and establishing the transformation temperatures at which the shape memory effect occurs. During the shape-setting process, the Nitinol wire is wound into its final spring configuration and secured on a mandrel or fixture. The assembly is then subjected to the heat treatment process, which "programs" the spring's shape into the material's crystal structure. This step is crucial for ensuring that the spring retains its intended form and exhibits the desired shape memory or superelastic behavior when subjected to deformation or temperature changes in its final application.

Precision Manufacturing Techniques for OEM Nitinol Compression Springs

Advanced Spring Winding Technologies

The winding of Nitinol compression springs requires specialized equipment and expertise due to the unique properties of the material. Advanced CNC (Computer Numerical Control) spring coiling machines are often employed to achieve precise control over the winding process. These machines can accommodate the high spring-back effect of Nitinol wire and maintain consistent coil diameter and pitch throughout the spring length. Manufacturers may utilize various winding techniques, such as hot coiling or stress-relief coiling, to optimize the spring's performance characteristics. Hot coiling involves winding the spring at elevated temperatures, which can help reduce residual stresses and improve the spring's fatigue resistance. Stress-relief coiling incorporates intermediate heat treatments during the winding process to alleviate internal stresses and enhance the spring's dimensional stability.

Surface Treatments and Finishing Operations

After winding, OEM Nitinol compression springs often undergo surface treatments to enhance their performance and appearance. Electropolishing is a common finishing technique used to remove surface imperfections and create a smooth, oxide-free surface. This process not only improves the spring's corrosion resistance but also enhances its biocompatibility, making it suitable for medical applications. Other surface treatments may include passivation to further improve corrosion resistance, or the application of specialized coatings to modify the spring's friction characteristics or electrical properties. These finishing operations are tailored to meet the specific requirements of the OEM application and can significantly impact the spring's functionality and longevity.

Quality Control and Performance Testing

Rigorous quality control measures are implemented throughout the manufacturing process of OEM Nitinol compression springs. Non-destructive testing techniques, such as X-ray fluorescence (XRF) spectroscopy, are used to verify the composition and purity of the Nitinol material. Dimensional inspections are performed using high-precision measuring equipment to ensure compliance with tight tolerances. Performance testing is a critical aspect of OEM Nitinol compression spring manufacturing. Springs undergo cyclic loading tests to evaluate their fatigue resistance and ensure consistent performance over repeated compressions. Thermal cycling tests are conducted to verify the shape memory effect and transformation temperatures. Additionally, specialized tests may be performed to assess specific properties such as corrosion resistance, biocompatibility, or magnetic susceptibility, depending on the intended application.

Customization and Optimization of OEM Nitinol Compression Springs

Tailoring Spring Parameters for Specific Applications

OEM Nitinol compression springs can be customized to meet a wide range of performance requirements. Manufacturers work closely with engineers to optimize spring parameters such as wire diameter, coil diameter, free length, and number of active coils. These parameters are carefully adjusted to achieve the desired spring rate, load-bearing capacity, and deflection characteristics. Advanced finite element analysis (FEA) software is often employed to simulate the behavior of Nitinol compression springs under various loading conditions. This allows engineers to predict the spring's performance and make necessary adjustments before physical prototypes are produced. The use of computational modeling tools helps streamline the design process and reduces the time and cost associated with iterative prototyping.

Addressing Unique Challenges in Nitinol Spring Design

Designing OEM Nitinol compression springs presents unique challenges due to the material's non-linear stress-strain behavior and temperature-dependent properties. Engineers must account for factors such as the Austenite finish temperature (Af), which determines the temperature at which the spring fully recovers its programmed shape. The design process also considers the stress-induced martensite transformation, which occurs when the spring is subjected to loads beyond its superelastic range. To overcome these challenges, manufacturers may employ specialized design methodologies and proprietary algorithms that account for the complex behavior of Nitinol. These tools enable the creation of springs with precise force-deflection characteristics and predictable shape memory responses across a range of operating temperatures and loading conditions.

Integrating Nitinol Springs into OEM Assemblies

The integration of Nitinol compression springs into OEM assemblies requires careful consideration of factors such as mounting methods, environmental conditions, and potential material interactions. Manufacturers provide guidance on proper installation techniques to ensure optimal performance and prevent damage to the spring during assembly. In some cases, custom end configurations or attachment features may be incorporated into the spring design to facilitate integration into complex assemblies. This may include forming hooks, loops, or specialized end coils to provide secure attachment points or interface with other components. The manufacturing process is adapted to accommodate these custom features while maintaining the spring's critical performance characteristics.

Conclusion

The manufacturing of OEM Nitinol compression springs is a complex process that combines advanced materials science, precision engineering, and specialized production techniques. By carefully controlling every aspect of the manufacturing process, from material selection to final testing, manufacturers can produce springs that harness the unique properties of Nitinol to meet the demanding requirements of various industries and applications. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
