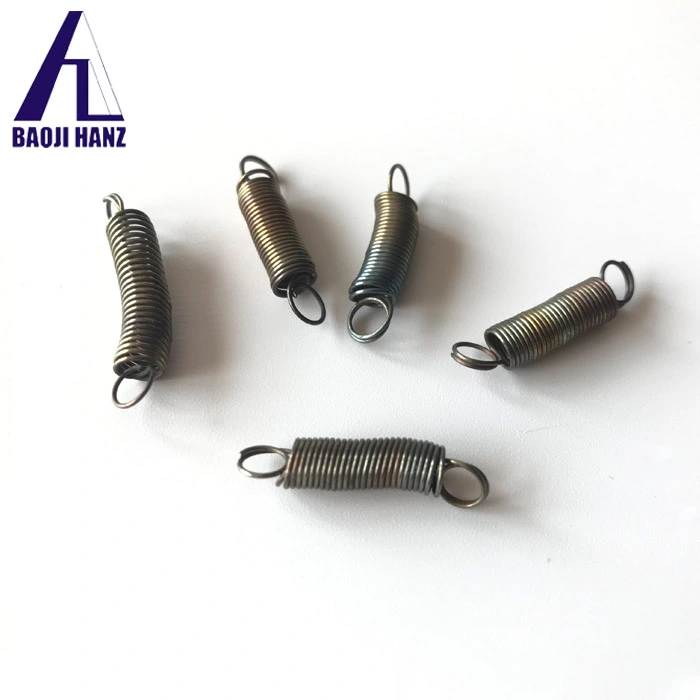

How are super elastic nitinol springs manufactured?

Raw Material Preparation and Alloy Composition

Selecting High-Purity Nickel and Titanium

The manufacturing process of super elastic nitinol springs begins with the careful selection of high-purity nickel and titanium. These raw materials must meet stringent quality standards to ensure the final product's performance and consistency. Manufacturers typically source medical-grade nickel and titanium with purities exceeding 99.9%. The precise ratio of nickel to titanium is crucial, as it directly influences the alloy's properties and behavior.

Melting and Alloying Process

Once the raw materials are selected, they undergo a sophisticated melting and alloying process. This step involves using vacuum induction melting (VIM) or vacuum arc remelting (VAR) techniques to create a homogeneous nitinol alloy. These advanced melting methods prevent contamination and ensure uniform composition throughout the material. The molten alloy is carefully monitored and controlled to achieve the desired chemical composition, typically consisting of approximately 55-56% nickel and 44-45% titanium by weight.

Ingot Formation and Hot Working

After the melting process, the nitinol alloy is cast into ingots. These ingots then undergo hot working procedures, such as forging or extrusion, to refine the material's grain structure and improve its mechanical properties. Hot working helps eliminate any internal defects and enhances the alloy's overall strength and ductility. The resulting material serves as the foundation for creating super elastic nitinol springs with exceptional performance characteristics.

Wire Drawing and Heat Treatment

Cold Drawing Process

The next crucial step in manufacturing super elastic nitinol springs involves transforming the processed ingot into wire form. This is achieved through a series of cold drawing operations, where the material is pulled through progressively smaller dies to reduce its diameter and increase its length. The cold drawing process imparts significant work hardening to the nitinol, altering its microstructure and mechanical properties. Manufacturers must carefully control the drawing parameters, including speed and reduction ratio, to maintain the material's integrity and avoid excessive stress-induced martensite formation.

Intermediate Annealing

As the nitinol wire undergoes multiple drawing passes, it becomes increasingly work-hardened and brittle. To restore its ductility and facilitate further processing, intermediate annealing steps are performed. This heat treatment process involves heating the wire to specific temperatures for controlled durations, followed by rapid cooling. Annealing helps relieve internal stresses, recrystallize the microstructure, and optimize the material's super elastic properties. The precise annealing parameters are carefully tailored to achieve the desired balance between strength and flexibility in the final spring product.

Final Wire Dimensions and Surface Treatment

Once the nitinol wire reaches its target diameter, it undergoes final surface treatments to enhance its performance and appearance. These treatments may include electropolishing to remove surface imperfections and create a smooth finish, or the application of protective coatings to improve corrosion resistance. The wire's surface quality is crucial for ensuring consistent spring performance and preventing premature failure due to surface defects. Manufacturers employ advanced inspection techniques, such as eddy current testing or optical microscopy, to verify the wire's dimensional accuracy and surface integrity before proceeding to spring formation.

Spring Formation and Shape Setting

Coiling and Winding Techniques

With the nitinol wire prepared to the desired specifications, the actual spring formation process begins. Manufacturers employ specialized coiling and winding equipment to shape the wire into the required spring configuration. This step demands precise control over factors such as coil diameter, pitch, and number of turns to achieve the desired spring characteristics. Advanced CNC (Computer Numerical Control) machines are often utilized to ensure consistency and accuracy in the spring geometry. The coiling process must be carefully managed to prevent excessive stress on the nitinol wire, which could adversely affect its super elastic properties.

Shape Memory Annealing

One of the most critical stages in manufacturing super elastic nitinol springs is the shape memory annealing process. This heat treatment step imparts the spring with its characteristic shape memory and super elastic behavior. The coiled spring is subjected to a specific heat treatment regimen, typically involving temperatures ranging from 400°C to 550°C for carefully controlled durations. This process aligns the crystal structure of the nitinol alloy, setting the spring's "memory" of its desired shape. The exact parameters of the shape memory annealing process are closely guarded trade secrets, as they directly influence the spring's performance and reliability.

Quenching and Stabilization

Following the shape memory annealing, the nitinol springs undergo rapid quenching to lock in their microstructure and properties. This quenching process, often performed using water or oil baths, is crucial for achieving the desired phase transformation temperatures and super elastic behavior. After quenching, the springs are subjected to a series of stabilization treatments. These treatments involve cycling the springs through their full range of motion multiple times under controlled conditions. This process helps to "train" the nitinol, ensuring consistent performance and reducing the likelihood of functional fatigue over the spring's lifetime.

Conclusion

The manufacture of super elastic nitinol springs is a complex and highly specialized process that combines advanced materials science with precision engineering. From raw material selection to final testing, each step plays a crucial role in creating springs with exceptional super elastic properties. The unique characteristics of nitinol, coupled with meticulous manufacturing techniques, result in springs that offer unparalleled performance across various applications. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
