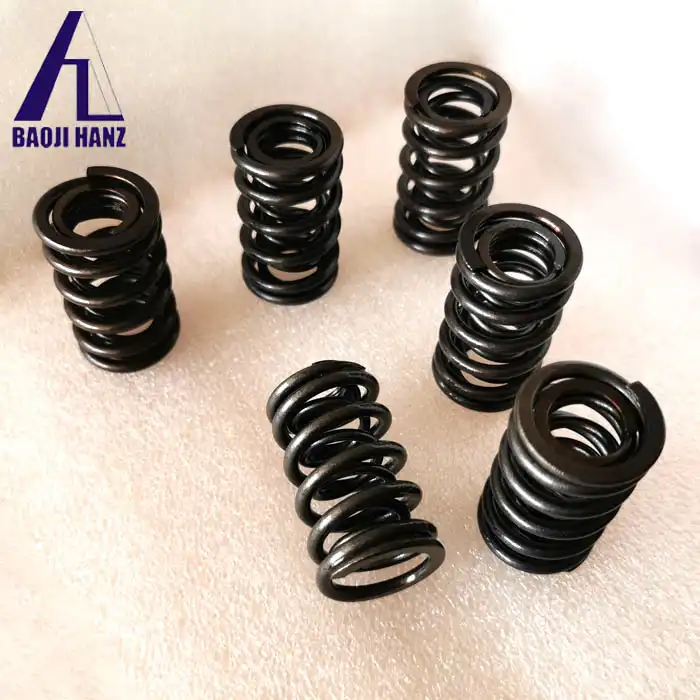

How do high tension Nitinol springs work?

The Science Behind Nitinol Springs

Shape Memory Effect in Nitinol

The shape memory effect is the cornerstone of Nitinol's exceptional properties. This phenomenon allows Nitinol to "remember" and return to its original shape after deformation when heated above a specific transition temperature. In high tension Nitinol springs, this effect is harnessed to create springs that can undergo significant deformation and still recover their initial form. The shape memory effect occurs due to a solid-state phase transformation between two crystal structures: austenite and martensite. At lower temperatures, Nitinol exists in its martensite phase, which is relatively soft and easily deformable. When heated above its transition temperature, it transforms into the austenite phase, reverting to its pre-set shape with considerable force. This unique behavior allows high tension Nitinol springs to exert substantial forces during shape recovery, making them ideal for applications requiring high energy storage and release. The transition temperature can be fine-tuned through precise control of the Nitinol alloy composition, enabling engineers to design springs that activate at specific temperatures suited to their intended application.

Superelasticity in Nitinol Springs

Superelasticity is another crucial property of Nitinol that contributes to the performance of high tension springs. This characteristic allows Nitinol to undergo large elastic deformations without permanent damage, far exceeding the elastic limits of conventional spring materials. In its superelastic state, Nitinol can be strained up to 10 times more than ordinary spring steels before yielding. This extraordinary elasticity stems from a stress-induced phase transformation between austenite and martensite, which occurs at temperatures above the alloy's transition temperature. When a superelastic Nitinol spring is subjected to stress, it transforms from austenite to martensite. Upon removal of the stress, it immediately reverts to austenite, recovering its original shape. This process can be repeated numerous times without fatigue, resulting in springs with exceptional durability and consistent performance over many cycles.

Stress-Strain Behavior of Nitinol Springs

The stress-strain behavior of high tension Nitinol springs is markedly different from that of conventional spring materials. While traditional springs exhibit a linear relationship between stress and strain, Nitinol springs display a non-linear, hysteretic behavior due to their phase transformation characteristics. This unique stress-strain curve consists of several distinct regions. Initially, the spring behaves elastically like a conventional material. As stress increases, it reaches a plateau where the phase transformation occurs, allowing for large strains with minimal increase in stress. Upon unloading, the spring follows a different path, creating a hysteresis loop that represents energy dissipation. This non-linear behavior provides high tension Nitinol springs with several advantages. They can store and release more energy than conventional springs of similar size, exhibit excellent vibration damping properties, and maintain a nearly constant force over a wide range of deflections. These characteristics make them invaluable in applications requiring precise force control or energy absorption.

Manufacturing and Design Considerations

Alloy Composition and Heat Treatment

The performance of high tension Nitinol springs is heavily influenced by the precise composition of the alloy and its subsequent heat treatment. Nitinol typically consists of approximately 55% nickel and 45% titanium by weight, but small variations in this ratio can significantly affect its properties. The addition of small amounts of other elements, such as copper or niobium, can fine-tune the alloy's transformation temperatures and mechanical properties. This allows manufacturers to tailor the springs' behavior to specific application requirements, such as activation temperature or force output. Heat treatment plays a crucial role in setting the shape memory and superelastic properties of Nitinol springs. The process typically involves heating the material to high temperatures (around 500°C) for a specific duration, followed by rapid cooling. This treatment establishes the austenite crystal structure that the material will "remember" and return to when heated.

Spring Geometry and Design Optimization

Designing high tension Nitinol springs requires a deep understanding of both traditional spring mechanics and the unique properties of Nitinol. The geometry of the spring, including its wire diameter, coil diameter, and number of active coils, must be carefully optimized to achieve the desired force-deflection characteristics. Unlike conventional springs, where linear elastic theory suffices for design, Nitinol springs require more complex modeling due to their non-linear behavior. Finite element analysis (FEA) and other advanced simulation techniques are often employed to predict spring performance accurately. Designers must also consider the strain limitations of Nitinol. While it can undergo larger strains than conventional spring materials, exceeding certain limits can lead to permanent deformation or fatigue failure. Careful balancing of wire diameter and coil geometry is necessary to maximize performance while ensuring long-term reliability.

Manufacturing Processes and Challenges

Manufacturing high tension Nitinol springs presents unique challenges due to the material's properties and the precision required. The process typically begins with Nitinol wire or strip, which is wound into the desired spring shape using specialized equipment. One of the primary challenges is maintaining precise control over the material's temperature during forming and heat treatment. Even small variations can significantly affect the spring's properties. Advanced temperature control systems and specialized furnaces are often employed to ensure consistency. Surface finish is another critical consideration. Nitinol is prone to surface oxidation, which can impact its biocompatibility and corrosion resistance. Various surface treatments, such as electropolishing or passivation, may be applied to enhance these properties and ensure long-term performance.

Applications and Future Prospects

Medical Devices and Implants

High tension Nitinol springs have found extensive use in the medical field, particularly in minimally invasive devices and implants. Their combination of biocompatibility, superelasticity, and shape memory makes them ideal for applications where controlled force application and space constraints are critical. In cardiovascular medicine, Nitinol springs are used in stents, which can be compressed into a small diameter for insertion into blood vessels and then expand to their pre-set shape once in place. The superelastic properties allow these stents to conform to vessel walls and maintain patency under dynamic physiological conditions. Orthodontic archwires made from Nitinol provide consistent, gentle forces for tooth movement over extended periods. The temperature-dependent shape memory effect allows these wires to activate at body temperature, providing precise control over tooth alignment.

Aerospace and Automotive Industries

The aerospace and automotive sectors have embraced high tension Nitinol springs for their unique combination of high energy density and reliability. In aircraft, these springs are used in vibration damping systems, helping to reduce fatigue and improve passenger comfort. Nitinol springs find applications in automotive safety systems, such as impact-absorbing structures and deployable pedestrian protection devices. Their ability to undergo large deformations and recover quickly makes them ideal for these safety-critical applications. In both industries, the temperature-activated shape memory effect of Nitinol springs is exploited for thermal actuators and self-deploying structures. These can be used for tasks such as adjusting aerodynamic surfaces or deploying solar panels in space applications.

Emerging Applications and Research Directions

The potential of high tension Nitinol springs continues to expand as researchers explore new applications and refine existing ones. In the field of robotics, these springs are being investigated for use in soft actuators, providing gentle yet powerful movement for delicate manipulation tasks. Energy harvesting is another promising area. Researchers are developing systems that use Nitinol springs to convert low-grade waste heat or mechanical vibrations into useful electrical energy, potentially opening up new avenues for sustainable power generation. Advancements in materials science are also pushing the boundaries of what's possible with Nitinol springs. Work is ongoing to develop new alloy compositions with improved properties, such as wider temperature ranges for shape memory effects or enhanced fatigue resistance for high-cycle applications.

Conclusion

High tension Nitinol springs represent a remarkable convergence of materials science and engineering design. Their unique properties of shape memory and superelasticity enable solutions to complex problems across various industries. As research continues and new applications emerge, these innovative components are poised to play an increasingly important role in shaping the future of technology and engineering. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
