How do you handle and process super elastic nitinol strips?

Understanding Super Elastic Nitinol Strips

Composition and Properties

Super elastic nitinol strips are composed of a near-equiatomic mixture of nickel and titanium. This unique alloy exhibits remarkable properties, including shape memory effect and superelasticity. The superelastic behavior allows the material to undergo large deformations and return to its original shape upon removal of the applied stress. This characteristic is attributed to the reversible phase transformation between austenite and martensite crystal structures.

Applications in Various Industries

The exceptional properties of super elastic nitinol strips have led to their widespread adoption across numerous industries. In the medical field, they are used in minimally invasive surgical instruments, orthodontic wires, and cardiovascular stents. Aerospace applications include actuators and vibration dampers. Consumer electronics benefit from nitinol's durability in components like antenna wires and eyeglass frames. The automotive industry utilizes nitinol strips in temperature-sensitive valves and connectors.

Challenges in Handling and Processing

Despite their remarkable properties, super elastic nitinol strips present unique challenges in handling and processing. The material's high strength and tendency to work harden make conventional machining techniques ineffective. Additionally, the shape memory effect can cause unexpected deformations during processing if proper precautions are not taken. Precise temperature control is crucial throughout the manufacturing process to maintain desired properties. These challenges necessitate specialized techniques and equipment for successful nitinol strip production.

Handling Super Elastic Nitinol Strips

Safety Precautions

When handling super elastic nitinol strips, safety is paramount. Personal protective equipment (PPE) such as cut-resistant gloves, safety glasses, and dust masks should be worn at all times. Nitinol can produce fine particles during processing, which may be harmful if inhaled. Proper ventilation systems should be in place to remove any airborne particles. It's also essential to be aware of the potential for sudden shape changes due to the material's superelastic properties, which could cause injury if not properly controlled.

Storage and Transportation

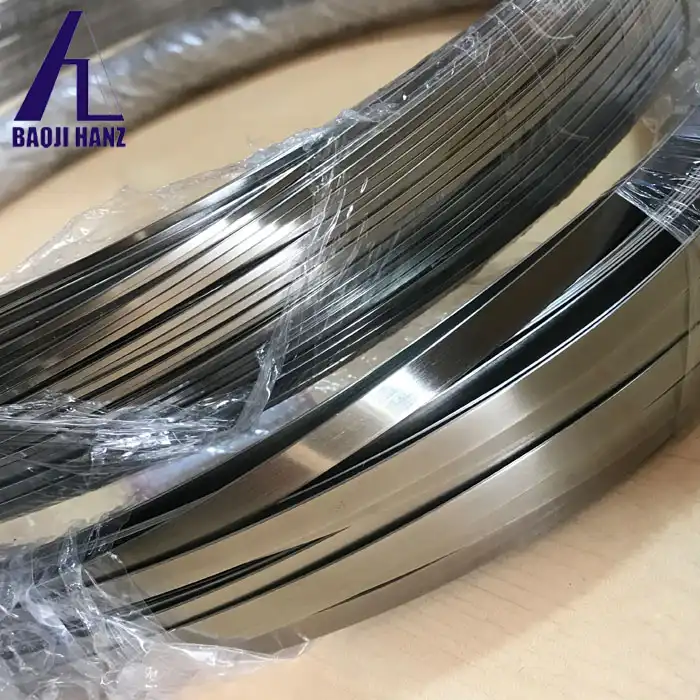

Proper storage and transportation of super elastic nitinol strips are crucial to maintain their properties and prevent damage. The strips should be stored in a clean, dry environment with controlled temperature and humidity. Exposure to extreme temperatures or moisture can affect the material's performance. During transportation, nitinol strips should be securely packaged to prevent bending or deformation. For longer strips, spooling onto appropriate-sized reels can help maintain their shape and facilitate easier handling.

Quality Control Measures

Implementing rigorous quality control measures is essential when working with super elastic nitinol strips. Regular inspections should be conducted to check for surface defects, dimensional accuracy, and consistency in mechanical properties. Non-destructive testing methods such as X-ray fluorescence (XRF) can be used to verify the composition of the alloy. Differential scanning calorimetry (DSC) is valuable for determining transformation temperatures and ensuring the material meets specified requirements. Maintaining detailed documentation of batch numbers, processing parameters, and test results is crucial for traceability and quality assurance.

Processing Techniques for Super Elastic Nitinol Strips

Heat Treatment

Heat treatment is a critical step in processing super elastic nitinol strips to achieve the desired properties. The process typically involves heating the material to a specific temperature, holding it for a predetermined time, and then rapidly cooling or quenching. This heat treatment, known as shape setting, allows the nitinol to "remember" its desired shape. The exact temperature and duration depend on the specific composition and desired properties of the nitinol strip. Precise temperature control and uniformity are essential during this process to ensure consistent results across the entire strip length.

Cutting and Shaping

Cutting and shaping super elastic nitinol strips require specialized techniques due to the material's unique properties. Traditional cutting methods like shearing or stamping can cause work hardening and affect the strip's performance. Instead, advanced cutting techniques such as laser cutting, water jet cutting, or electrical discharge machining (EDM) are preferred. These methods minimize heat-affected zones and maintain the material's properties. For shaping, cold forming techniques can be employed, but care must be taken to account for the material's springback and shape memory effects. In some cases, shaping may be performed at elevated temperatures to reduce the required force and improve formability.

Surface Treatment and Finishing

Surface treatment and finishing are crucial steps in the processing of super elastic nitinol strips. These processes enhance the material's performance, appearance, and biocompatibility. Electropolishing is a common technique used to remove surface imperfections and create a smooth, corrosion-resistant finish. This process also helps to remove the oxide layer formed during heat treatment. For medical applications, passivation treatments may be applied to further improve corrosion resistance and biocompatibility. In some cases, coatings such as Teflon or parylene may be applied to modify surface properties or provide additional functionality. Proper surface treatment not only improves the aesthetic appeal of the nitinol strips but also enhances their longevity and performance in various applications.

Conclusion

Handling and processing super elastic nitinol strips require specialized knowledge, techniques, and equipment. By understanding the material's unique properties and following proper procedures, manufacturers can harness the full potential of this remarkable alloy. As research continues and new applications emerge, the importance of mastering nitinol processing will only grow, opening up exciting possibilities across numerous industries. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
