How does a shape memory nitinol sheet work?

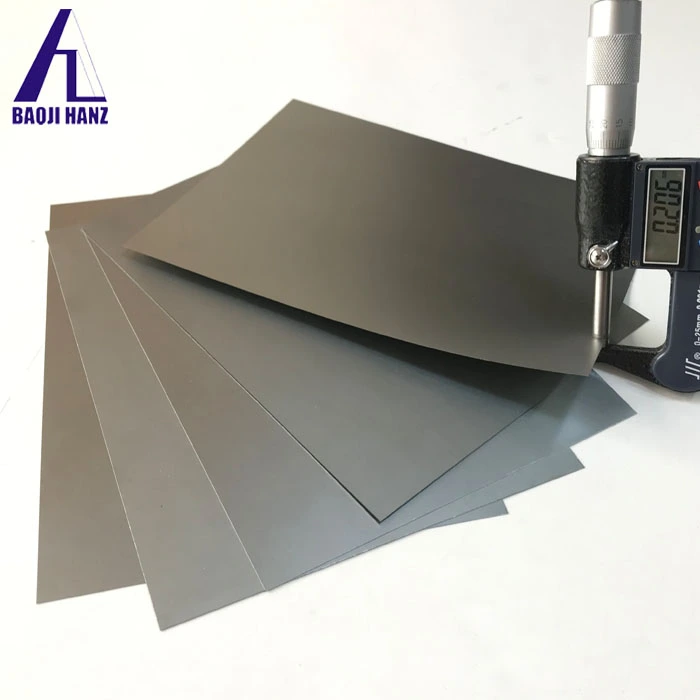

The Composition and Structure of Shape Memory Nitinol Sheets

Chemical Composition of Nitinol

Shape memory nitinol sheets are composed of a unique alloy known as Nitinol. This material is a near-equiatomic combination of nickel and titanium, typically containing about 55-56% nickel by weight. The precise ratio of these elements plays a crucial role in determining the shape memory properties of the alloy. The name "Nitinol" itself is derived from its constituents: Nickel Titanium Naval Ordnance Laboratory, where it was first discovered in the 1960s.

Crystal Structure and Phase Transformations

The remarkable behavior of shape memory nitinol sheets stems from their ability to undergo reversible phase transformations at the atomic level. At higher temperatures, nitinol exists in an austenite phase, characterized by a cubic crystal structure. As the temperature decreases, it transforms into a martensite phase with a monoclinic crystal structure. This phase transformation is the key to the shape memory effect and superelasticity exhibited by nitinol sheets.

Microstructural Features

The microstructure of shape memory nitinol sheets is complex and dynamic. When in the martensite phase, the material forms a twinned structure, where the crystal lattice is arranged in a zigzag pattern. This twinned structure allows the material to be easily deformed without breaking atomic bonds. Upon heating, the twinned martensite transforms back to austenite, recovering its original shape. The presence of dislocations, grain boundaries, and precipitates within the microstructure also influences the shape memory behavior of nitinol sheets.

The Mechanisms Behind Shape Memory in Nitinol Sheets

The Shape Memory Effect

The shape memory effect in nitinol sheets is a fascinating phenomenon that allows the material to "remember" and return to its original shape after deformation. This process occurs through a temperature-induced phase transformation. When a nitinol sheet is cooled below its transformation temperature, it enters the martensite phase and can be easily deformed. Upon heating above the austenite finish temperature, the material undergoes a reverse transformation, reverting to its original shape. This shape recovery can generate significant forces, making nitinol sheets valuable in various applications.

Superelasticity

Superelasticity is another remarkable property of shape memory nitinol sheets. This characteristic allows the material to undergo large elastic deformations without permanent damage. When stress is applied to a nitinol sheet in its austenite phase, it can induce a phase transformation to martensite. This stress-induced martensite can accommodate large strains. Upon removal of the stress, the material immediately reverts to austenite, recovering its original shape. This behavior enables nitinol sheets to withstand repeated cyclic loading without fatigue, making them ideal for applications requiring high flexibility and durability.

Two-Way Shape Memory Effect

While the standard shape memory effect involves a one-way transformation, some nitinol sheets can be trained to exhibit a two-way shape memory effect. In this case, the material can remember two different shapes: one at high temperatures and another at low temperatures. This behavior is achieved through a special thermomechanical treatment process that introduces internal stresses and dislocations in the material's microstructure. The two-way shape memory effect allows for more complex and controlled shape changes, expanding the potential applications of nitinol sheets in smart systems and actuators.

Applications and Future Prospects of Shape Memory Nitinol Sheets

Medical Applications

Shape memory nitinol sheets have found extensive use in the medical field, revolutionizing minimally invasive procedures and implant technologies. In cardiovascular applications, nitinol stents can be compressed into a small diameter for insertion into blood vessels and then expand to their predetermined shape once in place. Orthodontic archwires made from nitinol sheets provide constant, gentle forces for tooth movement due to their superelastic properties. Additionally, nitinol sheets are used in orthopedic implants, such as bone plates and spinal fixation devices, where their ability to change shape with body temperature can aid in proper alignment and healing.

Aerospace and Automotive Industries

The unique properties of shape memory nitinol sheets make them valuable in aerospace and automotive applications. In aircraft, nitinol-based actuators can be used for noise reduction in engine exhaust systems or for morphing wing structures that adapt to different flight conditions. The automotive industry utilizes nitinol sheets in thermal actuators for climate control systems and in impact absorption devices. The material's ability to recover from large deformations makes it ideal for creating lightweight, energy-absorbing structures that enhance vehicle safety.

Emerging Technologies and Future Directions

The potential of shape memory nitinol sheets continues to expand with ongoing research and development. Scientists are exploring ways to enhance the material's properties through alloying and processing techniques. One promising area is the development of high-temperature shape memory alloys based on nitinol, which could withstand more extreme environments. Another exciting prospect is the integration of nitinol sheets with smart materials and sensors to create adaptive structures for civil engineering applications. As our understanding of these remarkable materials deepens, we can expect to see shape memory nitinol sheets playing an increasingly important role in solving complex engineering challenges across various industries.

Conclusion

Shape memory nitinol sheets represent a remarkable advancement in materials science, offering unique properties that have transformed numerous industries. Their ability to remember and revert to their original shape, coupled with superelasticity, makes them invaluable in applications ranging from medical devices to aerospace technologies. As research continues, the potential for shape memory nitinol sheets to revolutionize future technologies remains boundless. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
