How does a shape memory nitinol strip work?

The Science Behind Shape Memory Nitinol Strips

Composition and Crystal Structure

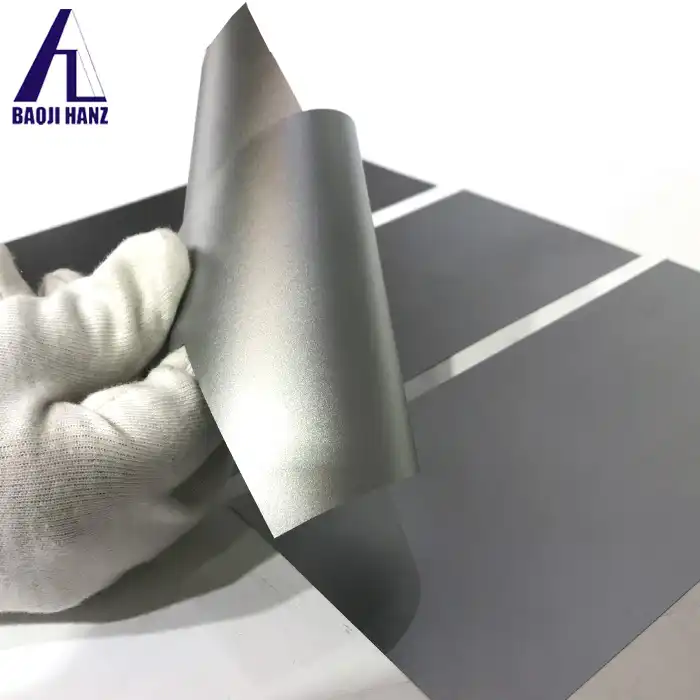

Shape memory nitinol strips are composed of a near-equiatomic alloy of nickel and titanium. This unique combination gives rise to their exceptional properties. The crystal structure of nitinol undergoes a reversible, temperature-dependent transformation between two distinct phases: austenite and martensite. Austenite, the high-temperature phase, exhibits a cubic crystal structure, while martensite, the low-temperature phase, has a more complex monoclinic structure. This phase transformation is the key to understanding the shape memory effect in nitinol strips.

Thermomechanical Behavior

The shape memory effect in nitinol strips is intimately linked to their thermomechanical behavior. When a nitinol strip is cooled below its transformation temperature, it transitions from austenite to martensite. In this state, the material can be easily deformed. However, upon heating above the transformation temperature, the nitinol strip "remembers" its original shape and returns to it. This process involves the rearrangement of atoms within the crystal lattice, resulting in a macroscopic shape change. The transformation temperatures can be fine-tuned through careful control of the alloy composition and processing techniques.

Superelasticity

Another remarkable property of shape memory nitinol strips is superelasticity. This phenomenon occurs when the material is above its transformation temperature and in the austenitic phase. When stress is applied, the nitinol strip undergoes a stress-induced transformation to martensite, allowing it to accommodate large strains without permanent deformation. Upon removal of the stress, the material reverts to austenite and recovers its original shape. This unique behavior makes nitinol strips ideal for applications requiring high flexibility and resilience.

Manufacturing and Processing of Shape Memory Nitinol Strips

Melting and Casting

The production of shape memory nitinol strips begins with the precise melting and alloying of nickel and titanium. This process requires exceptional control over composition and purity to ensure the desired properties. Vacuum induction melting or vacuum arc remelting techniques are often employed to achieve the necessary level of precision. Once melted, the alloy is cast into ingots, which serve as the starting material for subsequent processing steps.

Hot Working and Cold Drawing

After casting, the nitinol ingots undergo a series of hot working operations, such as forging or rolling, to break down the as-cast structure and improve the material's overall properties. This step is crucial in developing the desired microstructure and enhancing the shape memory characteristics. Following hot working, the material is typically subjected to cold drawing processes to further refine its structure and achieve the desired strip dimensions. These operations require careful control of temperature and deformation parameters to maintain the alloy's unique properties.

Heat Treatment and Shape Setting

Heat treatment plays a vital role in optimizing the performance of shape memory nitinol strips. Through carefully controlled heating and cooling cycles, manufacturers can fine-tune the transformation temperatures and shape memory behavior of the material. Additionally, a process known as shape setting is often employed to "program" the desired shape into the nitinol strip. This involves constraining the strip in the desired configuration and subjecting it to high temperatures, typically around 500°C, followed by rapid cooling. This process imparts the "memory" of the desired shape into the material's crystal structure.

Applications and Innovations in Shape Memory Nitinol Strips

Medical Devices

Shape memory nitinol strips have found extensive use in the medical field, particularly in the development of minimally invasive devices. Stents, guidewires, and orthodontic archwires are just a few examples of medical applications that leverage the unique properties of nitinol. The material's biocompatibility, combined with its ability to conform to complex anatomical structures and exert controlled forces, makes it invaluable in creating devices that can be inserted into the body in a compact form and then expand to their functional shape once in place.

Aerospace and Automotive Industries

The aerospace and automotive sectors have also embraced the potential of shape memory nitinol strips. In aircraft, these materials are used in adaptive structures that can change shape in response to environmental conditions, improving aerodynamic performance. Nitinol-based actuators and fasteners offer weight savings and simplified designs compared to traditional mechanical systems. In the automotive industry, shape memory nitinol strips are employed in applications ranging from self-repairing body panels to adaptive engine components that optimize performance based on temperature conditions.

Consumer Electronics and Smart Textiles

The versatility of shape memory nitinol strips extends to consumer electronics and smart textiles. In electronic devices, these materials are used in micro-actuators, haptic feedback systems, and thermal management solutions. The integration of nitinol strips into textiles has led to the development of smart fabrics that can change shape or texture in response to temperature or electrical stimuli. This technology opens up new possibilities for adaptive clothing, responsive architecture, and interactive consumer products.

Conclusion

Shape memory nitinol strips represent a remarkable fusion of materials science and engineering ingenuity. Their unique ability to remember and return to a predetermined shape has opened up a world of possibilities across various industries. As research continues to unlock new potential applications and refine existing ones, the future of shape memory nitinol strips looks brighter than ever. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
