How does a super elastic nitinol guide wire work?

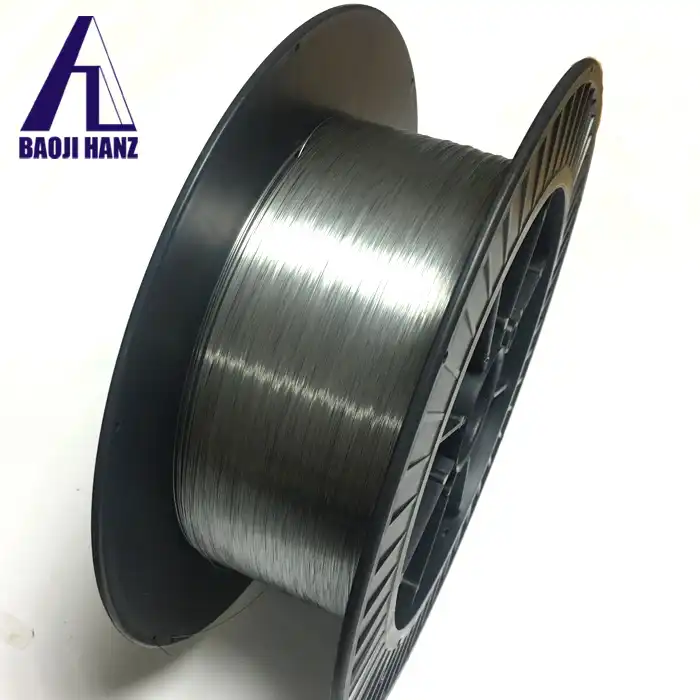

The Composition and Properties of Super Elastic Nitinol wire

Chemical Makeup of Nitinol

Nitinol, the foundation of super elastic guide wires, is a sophisticated alloy composed primarily of nickel and titanium. This unique combination yields a material with extraordinary properties, setting it apart from conventional metals. The precise ratio of nickel to titanium, typically near-equiatomic, is crucial in determining the alloy's behavior. Minor adjustments to this composition can significantly alter its characteristics, allowing manufacturers to tailor the material for specific medical applications.

Crystalline Structure and Phase Transformation

The remarkable properties of nitinol stem from its ability to undergo a reversible, solid-state phase transformation. At room temperature, nitinol exists in an austenite phase, characterized by a cubic crystal structure. When subjected to stress or cooling, it transitions to a martensite phase with a more complex, monoclinic crystal arrangement. This phase change occurs without diffusion, enabling rapid and reversible transformations that are key to nitinol's super elastic behavior.

Super Elasticity and Shape Memory Effect

Super elasticity, also known as pseudoelasticity, is the hallmark feature of nitinol guide wires. This property allows the material to undergo large deformations and return to its original shape upon removal of stress. Unlike conventional elastic materials, nitinol can recover from strains exceeding 10%, far surpassing the capabilities of stainless steel or other alloys. This exceptional elasticity is intimately linked to the shape memory effect, where the material "remembers" its original shape even after significant deformation, a phenomenon that finds extensive use in medical devices.

Mechanics of Super Elastic Nitinol Guide Wires

Stress-Induced Martensite Formation

When a super elastic nitinol guide wire encounters resistance within the body, it undergoes a stress-induced phase transformation. The applied stress causes the austenite crystal structure to shift into martensite, allowing the wire to bend and flex without permanent deformation. This transformation occurs at the atomic level, with the crystal lattice rearranging itself to accommodate the stress. As a result, the guide wire can navigate through tortuous blood vessels and complex anatomical structures with remarkable ease.

Load Plateau and Hysteresis

A distinctive feature of super elastic nitinol is its stress-strain curve, which exhibits a pronounced load plateau. During deformation, the stress remains nearly constant over a wide range of strain, creating a plateau in the stress-strain diagram. This plateau corresponds to the progressive transformation of austenite to martensite. Upon unloading, the material displays hysteresis, with the reverse transformation occurring at a lower stress level. This behavior provides a consistent, predictable force response, crucial for the controlled navigation of guide wires in delicate tissues.

Temperature Sensitivity and Body Heat Interaction

The performance of super elastic nitinol guide wires is intricately linked to temperature. The alloy's transformation temperatures can be engineered to fall below body temperature, ensuring that the wire remains in its austenitic, super elastic state when inserted into the patient. This temperature sensitivity allows the guide wire to adapt to the body's environment, maintaining its flexibility and responsiveness throughout the procedure. The interplay between the wire's properties and body heat contributes to its reliable and consistent performance in vivo.

Applications and Advantages in Medical Procedures

Vascular Navigation and Intervention

Super elastic nitinol guide wires excel in vascular procedures, where their unparalleled flexibility and kink resistance are paramount. These wires can navigate through complex vascular networks, including tight bends and bifurcations, with minimal risk of vessel damage. In interventional cardiology and radiology, nitinol guide wires facilitate the placement of stents, catheters, and other devices in precisely targeted locations. Their ability to maintain shape memory while conforming to vessel anatomy enhances procedural success rates and reduces complications.

Neurovascular Applications

The delicate nature of neurovascular interventions demands guide wires with exceptional finesse and control. Super elastic nitinol guide wires meet these exacting requirements, allowing neurointerventionalists to access and treat intracerebral aneurysms, arteriovenous malformations, and other complex cerebrovascular conditions. The wire's ability to navigate through the tortuous cerebral vasculature while maintaining tactile feedback is crucial for these high-precision procedures, where millimeters can make the difference between success and complication.

Orthopedic and Minimally Invasive Surgery

Beyond vascular applications, super elastic nitinol guide wires find use in orthopedic and minimally invasive surgical procedures. In orthopedics, these wires serve as flexible intramedullary nails, providing stable fixation while allowing for controlled micromotion that promotes healing. In laparoscopic and endoscopic surgeries, nitinol guide wires facilitate the precise placement of instruments and implants through small incisions. Their unique properties enable surgeons to perform complex maneuvers within confined spaces, enhancing the efficacy and safety of minimally invasive techniques.

Conclusion

Super elastic nitinol guide wires represent a pinnacle of materials science in medical technology. Their unique composition and remarkable properties enable unprecedented capabilities in minimally invasive procedures across various medical specialties. As research continues to refine and expand the applications of these innovative devices, they will undoubtedly play an increasingly vital role in advancing patient care and surgical outcomes. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
