How does shape memory Nitinol wire work?

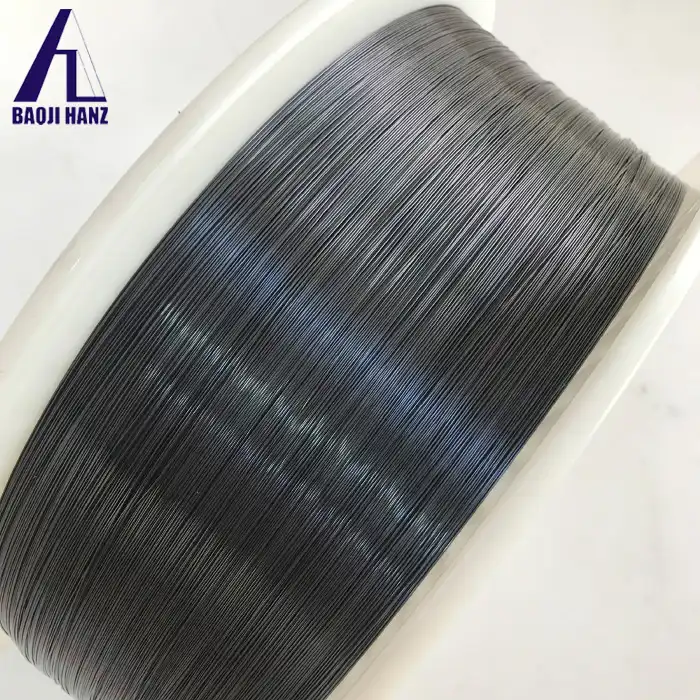

The Science Behind Shape Memory Nitinol Wire

Crystal Structure and Phase Transformations

The shape memory effect of Nitinol wire is intimately linked to its crystal structure and the phase transformations it undergoes. At high temperatures, Nitinol exists in an austenite phase, characterized by a cubic crystal structure. As the temperature decreases, the material transitions into a martensite phase, which has a more complex, twinned structure. This phase transformation is key to understanding the shape memory behavior of Nitinol wire. When Nitinol is in its martensite phase, it can be easily deformed. The twinned structure allows for a rearrangement of atoms without breaking atomic bonds, resulting in a macroscopic shape change. However, when the material is heated above its transformation temperature, it reverts to the austenite phase. This phase change triggers a dramatic reorganization of the atomic structure, causing the material to "remember" and return to its original shape.

Thermomechanical Processing

The shape memory properties of Nitinol wire are not inherent to the material but are imparted through careful thermomechanical processing. This process involves a series of heating, cooling, and deformation steps that program the desired shape into the material's memory. During this treatment, the atomic structure of the Nitinol is manipulated to create a preferred orientation that will be "remembered" when the material is heated. The specific parameters of the thermomechanical processing, such as temperature, duration, and applied stress, can be fine-tuned to achieve different shape memory characteristics. This allows manufacturers to tailor the properties of Nitinol wire for specific applications, controlling factors such as the transformation temperature, the force exerted during shape recovery, and the number of cycles the material can withstand.

One-Way vs. Two-Way Shape Memory Effect

Nitinol wire can exhibit either a one-way or two-way shape memory effect, depending on its processing and training. In the one-way effect, the material remembers only its high-temperature austenite shape. When cooled and deformed, it will remain in the new shape until heated again. The two-way effect, on the other hand, allows the material to remember both its high-temperature and low-temperature shapes, cycling between them as the temperature changes. The two-way effect is more complex to achieve and requires additional training of the material. This training involves repeating the shape memory cycle numerous times, which creates internal stresses and dislocations in the crystal structure. These microstructural changes allow the material to "remember" both its hot and cold shapes, enabling it to switch between them automatically with temperature changes.

Working Principles of Shape Memory Nitinol Wire

Temperature-Induced Shape Recovery

The most common way to activate the shape memory effect in Nitinol wire is through temperature change. When a Nitinol wire that has been deformed in its martensite phase is heated above its transformation temperature, it undergoes a rapid and forceful return to its pre-programmed austenite shape. This process, known as the shape memory effect, can generate significant force and displacement, making it useful for various actuator applications. The transformation temperature can be tailored during the manufacturing process by adjusting the nickel-titanium ratio and through heat treatment. This allows for the creation of Nitinol wires with transformation temperatures ranging from below room temperature to several hundred degrees Celsius, accommodating a wide range of application requirements.

Superelasticity

Another remarkable property of shape memory Nitinol wire is superelasticity, also known as pseudoelasticity. This phenomenon occurs when the material is at a temperature above its transformation temperature. In this state, the Nitinol wire can undergo large deformations and immediately return to its original shape upon removal of the stress, without the need for heating. The superelastic behavior is a result of stress-induced martensite formation. When stress is applied to the austenite phase, it transforms into martensite, allowing for large strains. Upon removal of the stress, the martensite becomes unstable at that temperature and immediately reverts to austenite, recovering its original shape. This property allows Nitinol wire to exhibit elastic strains up to 20 times greater than those of conventional metals.

Hysteresis and Energy Absorption

An important characteristic of shape memory Nitinol wire is the hysteresis associated with its phase transformation. Hysteresis refers to the difference between the transformation temperatures during heating (austenite formation) and cooling (martensite formation). This temperature difference results in a hysteresis loop when plotting stress or strain against temperature. The hysteresis loop represents energy dissipation during the transformation cycle. This property makes Nitinol wire an excellent material for damping applications, as it can absorb and dissipate significant amounts of energy. The width of the hysteresis loop can be tailored through alloying and processing, allowing engineers to optimize the material's behavior for specific applications.

Applications and Advancements in Shape Memory Nitinol Wire Technology

Medical Applications

Shape memory Nitinol wire has found extensive use in the medical field due to its biocompatibility and unique properties. In minimally invasive surgery, Nitinol wire is used to create self-expanding stents that can be compressed into a small diameter for insertion into blood vessels. Once in place, the stent expands to its pre-programmed shape, opening the vessel and restoring blood flow. The superelastic properties of Nitinol also make it ideal for orthodontic archwires, providing constant, gentle force for tooth movement. Another innovative application is in the development of surgical instruments. Nitinol's shape memory effect allows for the creation of tools that can change shape once inside the body, enabling complex procedures through small incisions. For example, Nitinol wires can be used in laparoscopic surgeries to create expandable graspers or scissors that can be inserted through tiny ports and then activated to their functional shape.

Aerospace and Automotive Industries

The unique properties of shape memory Nitinol wire have also found applications in aerospace and automotive industries. In aircraft, Nitinol actuators are used for noise reduction in jet engines, variable geometry airfoils, and vibration damping. The high power-to-weight ratio of Nitinol actuators makes them particularly attractive for aerospace applications where weight is a critical factor. In the automotive sector, Nitinol wire is being explored for use in adaptive headlights, self-repairing car bodies, and thermostatic control valves. The material's ability to respond to temperature changes autonomously makes it ideal for creating smart systems that can adapt to changing environmental conditions without the need for complex electronic controls.

Smart Textiles and Wearable Technology

The integration of shape memory Nitinol wire into textiles is opening up new possibilities in the field of smart fabrics and wearable technology. Nitinol wires can be woven into fabrics to create garments that can change shape or texture in response to temperature changes. This technology has potential applications in protective clothing that can adapt to environmental conditions, sportswear that enhances performance, and even fashion items that can change appearance on demand. In the realm of wearable technology, Nitinol wire is being used to create flexible, shape-changing interfaces. For example, researchers are developing haptic feedback systems using Nitinol actuators that can provide tactile sensations to users of virtual reality systems. The wire's ability to contract and expand quickly and silently makes it an excellent choice for creating subtle, natural-feeling haptic feedback.

Conclusion

Shape memory Nitinol wire stands as a testament to the incredible potential of smart materials in engineering and technology. Its unique ability to remember and return to a pre-programmed shape, combined with its superelastic properties, opens up a world of possibilities across various industries. As research continues and new applications emerge, shape memory Nitinol wire will undoubtedly play a crucial role in shaping the future of materials science and engineering. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
