How does shape memory work in nitinol?

The Science Behind Nitinol's Shape Memory Effect

Crystal Structure and Phase Transformations

At the heart of nitinol's shape memory effect lies its unique crystal structure and the ability to undergo phase transformations. Nitinol, an alloy of nickel and titanium, exists in two distinct crystal structures: austenite and martensite. The austenite phase, stable at higher temperatures, has a cubic crystal structure, while the martensite phase, stable at lower temperatures, has a monoclinic crystal structure. The shape memory effect occurs when the material transitions between these two phases. When shape memory nitinol capillary tube is cooled from the austenite phase, it transforms into twinned martensite. This twinned structure allows the material to be easily deformed without breaking atomic bonds. Upon heating, the material reverts to its austenite phase, recovering its original shape. This reversible phase transformation is the key to nitinol's shape memory capabilities.

Thermomechanical Processing

To imbue nitinol with shape memory properties, it must undergo specific thermomechanical processing. This involves a series of heating, cooling, and deformation steps that "train" the material to remember a particular shape. During this process, the nitinol is heated above its austenite finish temperature (Af) and held in the desired shape. It's then rapidly cooled to lock in this configuration. The thermomechanical processing creates a preferential orientation of the crystal structure, essentially programming the material to remember its high-temperature austenite shape. This process can be fine-tuned to adjust the transformation temperatures and the strength of the shape memory effect, allowing for customization based on specific application requirements.

The Role of Temperature in Shape Recovery

Temperature plays a crucial role in activating nitinol's shape memory effect. The material has four characteristic temperatures that define its behavior: martensite start (Ms), martensite finish (Mf), austenite start (As), and austenite finish (Af). When cooled below Mf, nitinol fully transforms into martensite and can be easily deformed. Upon heating above As, the transformation back to austenite begins, and the material starts to recover its original shape. Once heated above Af, the transformation is complete, and the material fully regains its pre-programmed shape. This temperature-dependent behavior allows for precise control over the shape recovery process. By carefully selecting the alloy composition and processing parameters, engineers can tailor the transformation temperatures to suit specific applications, ranging from body temperature for medical devices to higher temperatures for industrial uses.

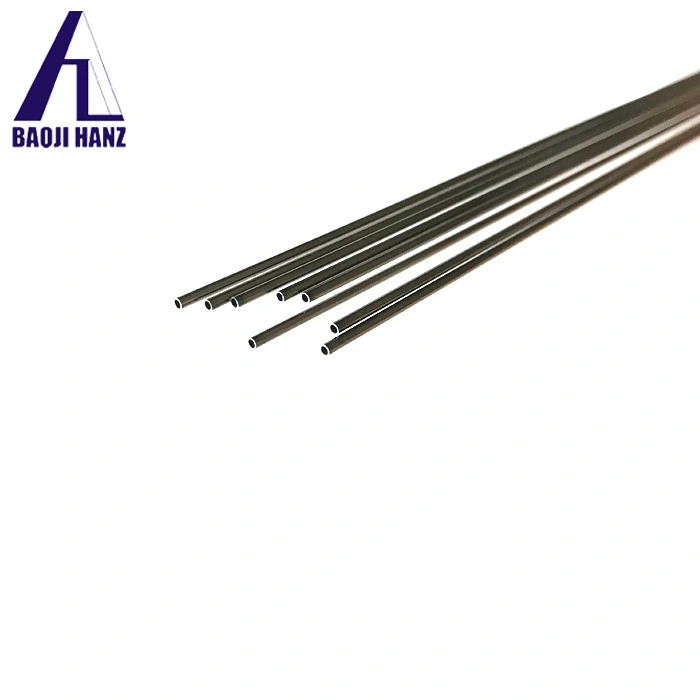

Mechanisms of Shape Memory in Nitinol Capillary Tubes

Microstructural Changes During Shape Recovery

In shape memory nitinol capillary tubes, the shape recovery process involves complex microstructural changes. When the tube is deformed in its martensitic state, the twinned martensite structure undergoes detwinning. This process allows the material to accommodate large strains without permanent deformation. Upon heating, the detwinned martensite transforms back to austenite, resulting in the recovery of the original tube shape. The shape memory effect in nitinol capillary tubes is not just a macroscopic phenomenon but also involves atomic-level rearrangements. During the phase transformation, atoms shift their positions in a coordinated manner, resulting in the overall shape change. This atomic-level precision is what allows nitinol tubes to recover their shape with remarkable accuracy.

Stress-Induced Martensite Formation

Another important aspect of shape memory in nitinol capillary tubes is the formation of stress-induced martensite. When a nitinol tube in its austenitic state is subjected to stress, it can undergo a phase transformation to martensite. This stress-induced martensite is responsible for the superelastic behavior of nitinol, allowing it to undergo large deformations and return to its original shape upon removal of the stress. In shape memory nitinol  tubes, this stress-induced martensite formation can be utilized to create complex, deployable structures. For example, a nitinol tube can be compressed into a compact form, relying on stress-induced martensite to maintain this shape. When the stress is removed or heat is applied, the tube will return to its original, expanded form.

One-Way vs. Two-Way Shape Memory Effect

Shape memory nitinol tubes can exhibit either a one-way or two-way shape memory effect. In the one-way effect, the tube remembers only its high-temperature austenite shape. It can be deformed when cool but will only recover its original shape upon heating. This is the most common form of shape memory effect used in applications. The two-way shape memory effect, on the other hand, allows the nitinol tube to remember both a high-temperature and a low-temperature shape. This is achieved through a special training process that creates preferential martensite variants. Two-way shape memory nitinol tubes can switch between two predefined shapes as they are heated and cooled, without the need for external forces. This property opens up possibilities for self-actuating devices and temperature-controlled switches.

Applications and Advantages of Shape Memory Nitinol Capillary Tubes

Medical Applications

Shape memory nitinol capillary tubes have found extensive use in the medical field, particularly in minimally invasive procedures. Their ability to change shape at body temperature makes them ideal for creating self-expanding stents, which can be inserted into blood vessels in a compressed form and then expand to their full size once in place. This property significantly reduces the invasiveness of vascular procedures. In orthodontics, nitinol wires are used to create arch wires that apply consistent, gentle force to teeth over extended periods. The shape memory effect allows these wires to maintain their effectiveness even as the teeth move, reducing the need for frequent adjustments. Additionally, nitinol capillary tubes are used in endoscopic instruments, allowing for the creation of tools that can navigate complex anatomical structures with minimal tissue damage.

Aerospace and Automotive Industries

The aerospace industry has embraced shape memory nitinol tubes for their unique properties. These tubes can be used to create deployable structures in spacecraft, such as antennas or solar panels that can be compactly stored during launch and then expanded once in orbit. The ability of nitinol to withstand repeated shape changes without fatigue makes it ideal for these applications. In the automotive sector, shape memory nitinol tubes are being explored for use in active aerodynamic components. These tubes can change shape in response to temperature or electrical stimuli, allowing for adaptive vehicle designs that optimize performance and fuel efficiency. Additionally, nitinol tubes are used in engine components and climate control systems, where their temperature-responsive properties can be harnessed for improved functionality.

Conclusion

The shape memory nitinol capillary tubes represents a remarkable fusion of materials science and engineering. This unique property, rooted in the material's crystal structure and phase transformations, enables a wide range of innovative applications across diverse industries. As research in this field continues to advance, we can expect to see even more creative and groundbreaking uses for shape memory nitinol tubes in the future. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
