How does super elastic nitinol work?

The Science Behind Super Elastic Nitinol

Crystal Structure and Phase Transformation

Super elastic nitinol's remarkable properties stem from its unique crystal structure and phase transformation capabilities. At the atomic level, nitinol consists of nickel and titanium atoms arranged in a specific lattice. When subjected to stress or temperature changes, these atoms can rearrange themselves, transitioning between two distinct crystal structures: austenite and martensite. This phase transformation is the key to nitinol's super elastic behavior, allowing it to undergo substantial deformation and recover its original shape.

Temperature-Dependent Behavior

The behavior of super elastic nitinol is highly temperature-dependent. At higher temperatures, typically above its austenite finish temperature (Af), nitinol exists in its austenitic phase. In this state, it exhibits its super elastic properties, capable of recovering large strains without permanent deformation. As the temperature drops below the martensite start temperature (Ms), the material begins to transform into its martensitic phase, which is more malleable and easily deformed.

Stress-Induced Transformation

One of the most fascinating aspects of super elastic nitinol is its ability to undergo stress-induced phase transformation. When a stress is applied to nitinol in its austenitic phase, it can transform into martensite without a change in temperature. This transformation allows the material to accommodate large strains, up to 8-10%, without permanent deformation. Upon removal of the stress, the material reverts to its austenitic structure, recovering its original shape.

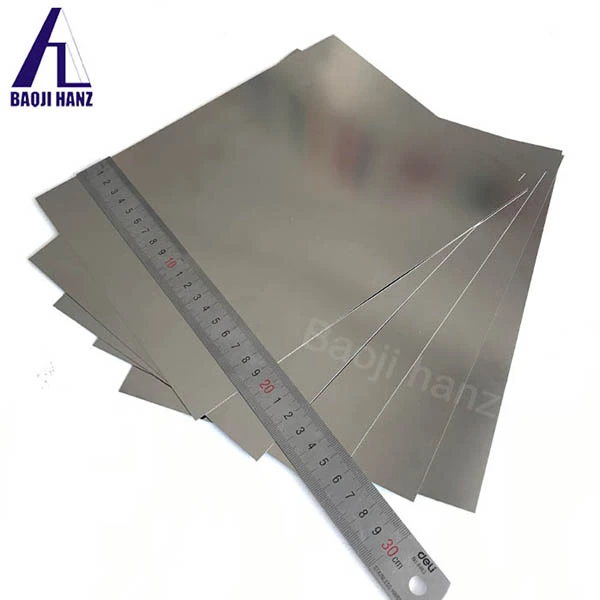

Properties and Characteristics of Super Elastic Nitinol Sheet

Exceptional Elasticity

Super elastic nitinol sheet exhibits an extraordinary elastic range, far surpassing that of conventional metals. While most metals have an elastic limit of less than 1%, super elastic nitinol can recover strains of up to 8-10%. This exceptional elasticity allows nitinol components to undergo significant deformation and return to their original shape without permanent damage, making it ideal for applications requiring flexibility and durability.

Biocompatibility

One of the most valuable properties of super elastic nitinol sheet is its excellent biocompatibility. The material's resistance to corrosion and its ability to form a stable oxide layer make it highly suitable for medical implants and devices. Nitinol's biocompatibility has led to its widespread use in cardiovascular stents, orthodontic archwires, and other medical applications where interaction with bodily tissues is crucial.

Shape Memory Effect

While super elastic nitinol is known for its ability to recover large strains at constant temperature, it also exhibits the shape memory effect. This phenomenon allows the material to be deformed at a lower temperature and then recover its original shape when heated above its transformation temperature. This dual capability of super elasticity and shape memory makes nitinol an incredibly versatile material for various engineering and medical applications.

Applications and Innovations in Super Elastic Nitinol Technology

Medical Devices and Implants

The medical field has greatly benefited from the unique properties of super elastic nitinol sheet. Its biocompatibility and ability to conform to complex anatomical structures have led to groundbreaking innovations in minimally invasive surgeries. Nitinol is extensively used in the production of self-expanding stents, guidewires, and catheter systems. These devices can be compressed into a small diameter for insertion into the body and then expand to their predetermined shape once in place, significantly reducing patient trauma and recovery time.

Aerospace and Automotive Industries

Super elastic nitinol has found numerous applications in the aerospace and automotive sectors. Its high fatigue resistance and ability to dampen vibrations make it an excellent material for aircraft components subjected to cyclic loading. In the automotive industry, nitinol actuators and sensors are used in various systems, from engine control to adaptive suspension systems. The material's ability to function reliably over a wide temperature range and withstand harsh environmental conditions makes it invaluable in these demanding applications.

Consumer Electronics and Wearable Technology

The consumer electronics industry has embraced super elastic nitinol for its durability and flexibility. Nitinol wires are used in the production of flexible antennas, headphone cables, and other components that require repeated bending without fatigue. In the realm of wearable technology, nitinol's super elasticity enables the creation of comfortable, form-fitting devices that can adapt to the user's body movements. From smartwatch bands to fitness trackers, nitinol is pushing the boundaries of wearable technology design and functionality.

Conclusion

Super elastic nitinol represents a remarkable advancement in materials science, offering unparalleled properties that continue to drive innovation across multiple industries. Its unique ability to undergo significant deformation and recover its original shape, combined with its biocompatibility and versatility, makes it an indispensable material in modern engineering and medical applications. As research and development in super elastic nitinol sheet technology progress, we can anticipate even more groundbreaking applications that will shape the future of various fields, from healthcare to aerospace. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
