How does temperature affect the behavior of Nitinol SMA Tubes?

Temperature plays a crucial role in the behavior of Nitinol Shape Memory Alloy (SMA) Tubes, significantly influencing their unique properties and performance characteristics. Nitinol, an alloy of nickel and titanium, exhibits remarkable shape memory and superelastic properties that are highly temperature-dependent. As the temperature changes, Nitinol SMA Tubes undergo phase transformations between austenite and martensite structures, altering their mechanical and physical properties. At lower temperatures, the material exists in its martensite phase, which is more malleable and easily deformed. As the temperature increases, the Nitinol transitions to its austenite phase, recovering its original shape and becoming more rigid. This temperature-induced phase transformation is the foundation of Nitinol's shape memory effect, allowing SMA tubes to remember and return to a predetermined shape when heated above their transition temperature. Additionally, temperature fluctuations affect the superelastic behavior of Nitinol tubes, influencing their stress-strain characteristics and recovery capabilities. Understanding these temperature-dependent behaviors is crucial for designing and implementing Nitinol SMA Tubes in various applications, from medical devices to aerospace technologies.

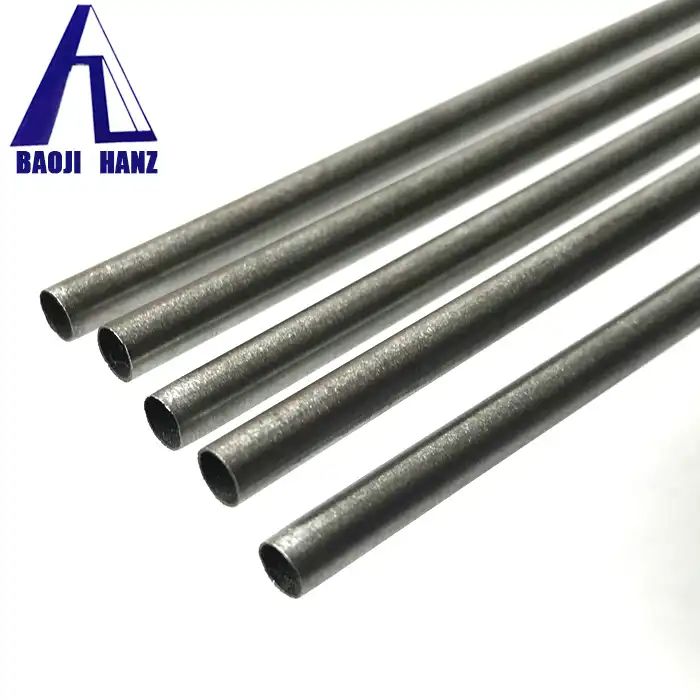

Temperature-Induced Phase Transformations in Nitinol SMA Tubes

Austenite to Martensite Transition

The austenite to martensite transition in Nitinol SMA Tubes is a fundamental process that occurs as the temperature decreases. This transformation is characterized by a shift in the crystal structure of the alloy, resulting in significant changes to its mechanical properties. As the temperature drops, the austenite phase, which has a cubic crystal structure, begins to transform into the martensite phase, which has a monoclinic crystal structure. This transition is not instantaneous but occurs over a temperature range, known as the transformation temperature range.

During this transition, Nitinol SMA Tubes become more malleable and easily deformed. The martensite phase allows for greater flexibility and strain accommodation, making it possible to shape and manipulate the tubes without permanent deformation. This property is particularly valuable in applications where the tube needs to be inserted into confined spaces or navigate through complex geometries, such as in minimally invasive medical devices.

The temperature at which this transition begins is called the martensite start temperature (Ms), and the temperature at which the transformation is complete is referred to as the martensite finish temperature (Mf). These temperatures can be tailored during the manufacturing process to suit specific application requirements, allowing for precise control over the behavior of the products in various temperature environments.

Martensite to Austenite Transition

The martensite to austenite transition is the reverse process that occurs when Nitinol SMA Tubes are heated. As the temperature increases, the martensite phase begins to transform back into the austenite phase. This transformation is the key to the shape memory effect of Nitinol alloys. When the tube is in its martensite phase and has been deformed, heating it above a certain temperature triggers the transformation to austenite, causing the tube to recover its original, pre-set shape.

The temperature at which this transition begins is called the austenite start temperature (As), and the temperature at which it completes is the austenite finish temperature (Af). These temperatures are crucial parameters in designing Nitinol SMA Tubes for specific applications, as they determine the temperature range in which the shape memory effect will occur.

The martensite to austenite transition is accompanied by significant changes in the mechanical properties of the Nitinol tube. As the material transforms to austenite, it becomes stiffer and more resistant to deformation. This change in properties can be utilized in various applications, such as actuators or self-expanding medical stents, where the tube needs to exert force or maintain a specific shape at higher temperatures.

Hysteresis in Phase Transformations

An important characteristic of the phase transformations in Nitinol SMA Tubes is the presence of hysteresis. Hysteresis refers to the difference between the transformation temperatures during heating and cooling cycles. The austenite to martensite transformation during cooling occurs at lower temperatures than the martensite to austenite transformation during heating.

This hysteresis behavior has significant implications for the performance of Nitinol SMA Tubes in practical applications. It provides stability to the material's behavior, preventing unwanted shape changes due to small temperature fluctuations around the transformation temperatures. The width of the hysteresis loop can be tailored during the manufacturing process to suit specific application requirements.

Understanding and controlling the hysteresis behavior is crucial for designing the products that can operate reliably in environments with varying temperature conditions. It allows engineers to create devices that maintain their desired properties over a range of temperatures, enhancing their functionality and reliability in real-world scenarios.

Temperature Effects on Mechanical Properties of Nitinol SMA Tubes

Stress-Strain Behavior Across Temperature Ranges

The stress-strain behavior of Nitinol SMA Tubes is intricately linked to temperature, exhibiting significant variations across different temperature ranges. At temperatures below the martensite finish temperature (Mf), the material displays a relatively low yield strength and high ductility. This allows the tubes to undergo large deformations without permanent damage, a property often utilized in applications requiring flexibility and shape adaptability.

As the temperature increases and approaches the austenite start temperature (As), the stress-strain curve begins to show signs of the shape memory effect. The material starts to recover its original shape upon unloading, even before reaching the full austenite phase. This behavior is characterized by a non-linear stress-strain relationship and the appearance of a plateau in the stress-strain curve.

Above the austenite finish temperature (Af), Nitinol SMA Tubes exhibit superelastic behavior. In this temperature range, the stress-strain curve shows a distinctive plateau region during loading and unloading, representing the stress-induced transformation between austenite and martensite. This superelastic behavior allows the tubes to undergo large deformations and return to their original shape upon removal of the applied stress, without the need for temperature change.

Modulus of Elasticity and Temperature Correlation

The modulus of elasticity, or Young's modulus, of Nitinol SMA Tubes demonstrates a strong correlation with temperature. This relationship is non-linear and exhibits significant changes around the transformation temperatures. In the martensite phase, at lower temperatures, the modulus of elasticity is relatively low, typically ranging from 20 to 50 GPa. This low modulus contributes to the material's flexibility and ability to accommodate large strains.

As the temperature increases and the material transitions to the austenite phase, the modulus of elasticity increases dramatically. In the fully austenitic state, the modulus can reach values between 70 and 110 GPa, depending on the specific composition and processing of the alloy. This substantial increase in stiffness is a key factor in the shape memory effect and the material's ability to exert force during shape recovery.

The transition in modulus is not abrupt but occurs over the transformation temperature range. This gradual change allows for fine-tuning of the mechanical properties of the products by precisely controlling the operating temperature. Understanding this temperature-dependent modulus behavior is crucial for designing applications where specific stiffness characteristics are required at different temperatures.

Fatigue Resistance and Thermal Cycling

The fatigue resistance of Nitinol SMA Tubes is significantly influenced by temperature and thermal cycling. Unlike conventional materials, Nitinol's unique phase transformation properties introduce additional considerations in fatigue behavior. The repeated phase transformations induced by thermal cycling can lead to microstructural changes that affect the material's long-term performance.

At temperatures below the martensite finish temperature, where the material is fully martensitic, Nitinol SMA Tubes generally exhibit good fatigue resistance under cyclic loading. However, as the temperature increases and approaches the transformation range, the fatigue behavior becomes more complex. The repeated stress-induced transformation between austenite and martensite during superelastic cycling can lead to accumulation of defects and localized stress concentrations, potentially reducing fatigue life.

Thermal cycling, which involves repeatedly heating and cooling the material through its transformation temperatures, can also impact the fatigue resistance of the products. While the shape memory effect allows for recovery of deformation, repeated thermal cycling can lead to changes in the transformation temperatures and the accumulation of residual stresses. These effects can alter the mechanical properties and potentially reduce the overall fatigue life of the material.

Applications Leveraging Temperature-Dependent Behavior of Nitinol SMA Tubes

Medical Devices and Implants

The temperature-dependent behavior of Nitinol SMA Tubes has revolutionized the field of medical devices and implants. One of the most prominent applications is in the development of self-expanding stents. These stents are designed to be compressed at low temperatures, allowing for minimally invasive insertion into blood vessels. Once inside the body, they warm to body temperature, triggering the shape memory effect and causing the stent to expand to its pre-programmed shape, thereby opening the blocked vessel.

Nitinol's superelastic properties at body temperature also make it ideal for guidewires and catheters used in endovascular procedures. These devices can navigate through tortuous blood vessels without kinking or permanently deforming, enhancing their maneuverability and effectiveness. The temperature-sensitive behavior of Nitinol SMA Tubes also finds application in orthodontic archwires, where the constant force exerted by the wire at oral temperature helps in gradual tooth movement.

In the field of orthopedics, Nitinol-based bone staples and plates utilize the shape memory effect to provide controlled force for bone fixation. These implants can be easily inserted at lower temperatures and then activated by body heat to apply the necessary compressive force for proper bone healing.

Aerospace and Automotive Industries

The aerospace and automotive industries have embraced the unique temperature-dependent properties of Nitinol SMA Tubes for various innovative applications. In aerospace, Nitinol-based actuators are used for deployment mechanisms in satellites and spacecraft. These actuators can be triggered by solar heating or controlled electrical heating, providing a reliable and lightweight alternative to traditional mechanical systems.

Nitinol SMA Tubes are also employed in aircraft de-icing systems. By embedding these tubes in critical areas prone to ice formation, such as wing leading edges, the shape memory effect can be utilized to create surface deformations that break up ice accumulation when activated by electrical heating.

In the automotive industry, Nitinol's temperature-sensitive behavior is exploited in various components. For example, Nitinol-based valves in engine cooling systems can respond to temperature changes without the need for external sensors or power, improving efficiency and reducing complexity. The superelastic properties of Nitinol at operating temperatures also make it suitable for vibration damping applications in vehicle suspensions and engine mounts.

Smart Textiles and Wearable Technology

The integration of Nitinol SMA Tubes in smart textiles and wearable technology has opened up new possibilities for responsive and adaptive clothing and accessories. One innovative application is in the development of shape-changing garments. By incorporating Nitinol wires or tubes into fabric, designers can create clothing that changes shape or structure in response to temperature changes, either from the environment or body heat.

In the realm of protective gear, Nitinol's temperature-dependent behavior is utilized to create adaptive armor. These systems can change their rigidity based on temperature, providing flexibility for normal movement but stiffening upon impact or when exposed to extreme temperatures, enhancing protection.

Wearable medical devices also benefit from the properties of the products. For instance, compression garments for medical treatments can be designed to apply variable pressure based on body temperature or external thermal stimuli. This allows for dynamic adjustment of compression levels, improving therapeutic effectiveness and patient comfort.

Conclusion

The temperature-dependent behavior of Nitinol SMA Tubes is a fascinating phenomenon that underpins their versatility in numerous applications. From phase transformations to mechanical property changes, temperature profoundly influences how these remarkable materials function. As research continues, we can expect even more innovative uses for Nitinol SMA Tubes across various industries, pushing the boundaries of what's possible in material science and engineering. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1.Otsuka, K., & Wayman, C. M. (1998). Shape Memory Materials. Cambridge University Press.

2.Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273-275, 149-160.

3.Lagoudas, D. C. (Ed.). (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science & Business Media.

4.Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

5.Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: A review. Materials & Design, 33, 577-640.

6.Pelton, A. R., Dicello, J., & Miyazaki, S. (2000). Optimisation of processing and properties of medical grade Nitinol wire. Minimally Invasive Therapy & Allied Technologies, 9(1), 107-118.
