How does temperature affect the performance of shape memory nitinol foil?

Shape memory nitinol foil is a remarkable material that exhibits unique properties, particularly in response to temperature changes. This blog explores the intricate relationship between temperature and the performance of nitinol foil, shedding light on its extraordinary capabilities. We'll delve into the underlying mechanisms that allow this material to "remember" and return to its original shape, examine how different temperature ranges influence its behavior, and discuss the practical implications for various applications. Understanding these temperature-dependent characteristics is crucial for harnessing the full potential of nitinol foil in fields ranging from aerospace to medical technology.

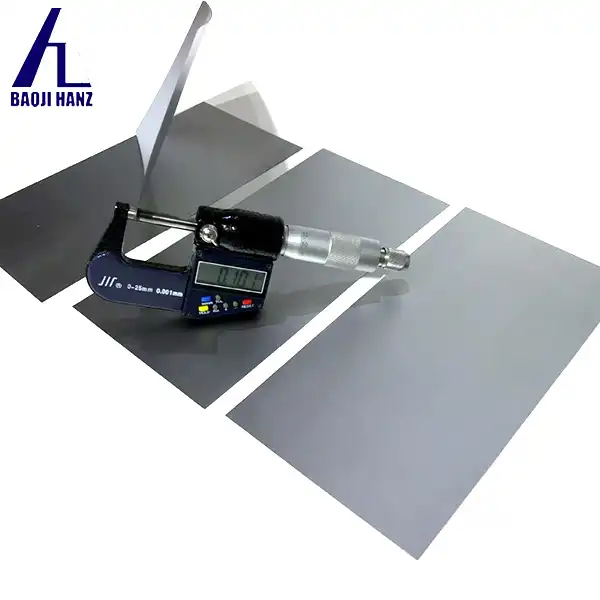

The Fundamentals of Shape Memory Nitinol Foil

Composition and Crystal Structure

Shape  foil is composed of nickel and titanium in nearly equal atomic percentages. This unique alloy possesses a crystal structure that can transition between two distinct phases: austenite and martensite. The austenite phase, stable at higher temperatures, exhibits a cubic crystal structure, while the martensite phase, prevalent at lower temperatures, displays a more complex monoclinic structure. These phase transformations are the key to nitinol's shape memory and superelastic properties.

Thermomechanical Behavior

The thermomechanical behavior of shape memory nitinol foil is characterized by its ability to undergo reversible phase transformations in response to temperature changes. When cooled below its transformation temperature, nitinol transitions from austenite to martensite, allowing it to be deformed easily. Upon heating above this temperature, the material reverts to its austenite phase, recovering its original shape. This phenomenon, known as the shape memory effect, is the cornerstone of nitinol's unique capabilities.

Transformation Temperatures

The transformation temperatures of nitinol foil are critical parameters that determine its behavior. These temperatures include the austenite start (As) and finish (Af) temperatures, as well as the martensite start (Ms) and finish (Mf) temperatures. The specific values of these transformation temperatures can be tailored through precise control of the alloy composition and processing techniques, allowing for customization of nitinol foil properties for diverse applications.

Temperature-Dependent Performance Characteristics

Shape Recovery and Actuation

Temperature plays a pivotal role in the shape recovery and actuation capabilities of nitinol foil. As the material is heated above its austenite finish temperature (Af), it undergoes a rapid and forceful shape change, returning to its pre-programmed configuration. This temperature-induced actuation can generate significant forces, making nitinol foil an ideal candidate for compact, thermally-activated actuators and sensors. The rate and extent of shape recovery are directly influenced by the heating rate and the temperature differential between the material's current state and its Af temperature.

Superelasticity and Stress-Induced Martensite

At temperatures above Af, shape memory nitinol foil exhibits superelastic behavior. In this temperature range, applied stress can induce a phase transformation from austenite to martensite, allowing the material to undergo large, reversible deformations without permanent plastic deformation. The stress required to induce this transformation increases with temperature, resulting in a temperature-dependent stress-strain response. This characteristic makes nitinol foil particularly useful in applications requiring high elasticity and resistance to fatigue, such as in medical stents or flexible electronic devices.

Hysteresis and Energy Absorption

The temperature-dependent phase transformations in nitinol foil are associated with hysteresis, meaning the transformation temperatures during heating and cooling are not identical. This hysteresis loop represents the energy absorbed or released during the phase transformation process. The width of the hysteresis loop is influenced by temperature, with higher temperatures generally resulting in narrower loops. This temperature-dependent energy absorption capacity makes nitinol foil an excellent candidate for damping applications, where its ability to dissipate energy can be precisely controlled through temperature manipulation.

Practical Implications and Applications

Biomedical Applications

In the biomedical field, the temperature-sensitive properties of  nitinol foil are extensively utilized. Stents, guidewires, and orthodontic archwires made from nitinol take advantage of its superelasticity at body temperature. The material's ability to conform to body contours and exert gentle, constant forces makes it ideal for these applications. Moreover, the shape memory effect can be exploited in minimally invasive surgical tools that deploy or activate upon reaching body temperature, facilitating complex procedures through small incisions.

Aerospace and Actuator Technologies

The aerospace industry leverages the temperature-dependent performance of shape memory nitinol foil in various innovative applications. Adaptive wing structures utilize nitinol foil actuators that change shape in response to temperature variations, optimizing aerodynamic efficiency across different flight conditions. In satellite deployment mechanisms, nitinol foil components can be compactly stored and then activated by solar heating upon reaching orbit, providing a reliable and lightweight solution for deploying solar panels or antennas.

Smart Textiles and Wearable Technology

The integration of nitinol foil into textiles opens up exciting possibilities for smart clothing and wearable devices. Temperature-responsive nitinol threads can be woven into fabrics to create garments that adapt to environmental conditions or body temperature. For instance, jackets with nitinol elements can automatically adjust their insulation properties based on ambient temperature, while smart compression garments can provide variable pressure in response to muscle temperature during exercise. These applications showcase the potential of nitinol foil to create responsive, adaptive materials that enhance comfort and performance in wearable technology.

Conclusion

Temperature profoundly influences the performance of shape memory nitinol foil, dictating its phase transformations, mechanical properties, and functional capabilities. By understanding and harnessing these temperature-dependent characteristics, engineers and researchers can unlock the full potential of this remarkable material, driving innovations across diverse fields and pushing the boundaries of what's possible in smart material design.If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.



Properties and Characteristics of Shape Memory Nitinol Foil

Superelasticity and Shape Memory Effect

Shape memory nitinol foil exhibits two extraordinary properties that set it apart from conventional materials: superelasticity and the shape memory effect. Superelasticity allows the foil to undergo substantial deformation without permanent damage, returning to its original shape upon unloading. This property is particularly useful in applications requiring flexibility and resilience. The shape memory effect enables the foil to "remember" and return to a predetermined shape when heated above its transformation temperature. This unique characteristic opens up a world of possibilities for creating smart, responsive structures and devices.

Temperature-Dependent Behavior

The behavior of the Shape memory nitinol foil is intricately linked to temperature. At lower temperatures, the material exists in a martensite phase, which is easily deformable. As the temperature increases, it transitions to the austenite phase, triggering the shape memory effect. This temperature-dependent behavior allows for precise control over the material's properties, making it ideal for applications in thermal management and temperature-sensitive devices. The ability to fine-tune the transformation temperature through composition adjustments further enhances the versatility of the product.

Mechanical and Physical Properties

Shape memory nitinol foil boasts an impressive array of mechanical and physical properties. Its high strength-to-weight ratio makes it an excellent choice for lightweight yet durable components. The material's corrosion resistance surpasses that of many conventional alloys, ensuring longevity in harsh environments. Additionally, the ptoduct exhibits good biocompatibility, making it suitable for medical implants and devices. Its electrical and thermal conductivity properties also contribute to its utility in various applications, from sensors to actuators.

Manufacturing Processes of Shape Memory Nitinol Foil

Alloy Composition and Melting

The production of shape memory nitinol foil begins with careful control of the alloy composition. Precise amounts of nickel and titanium are combined to achieve the desired properties. The melting process typically involves vacuum induction melting or vacuum arc remelting to ensure high purity and homogeneity of the alloy. These advanced melting techniques are crucial for maintaining the consistency and quality of the final product, as even small variations in composition can significantly affect the foil's performance.

Casting and Hot Working

After melting, the nitinol alloy is cast into ingots or billets. These are then subjected to hot working processes such as forging or hot rolling to break down the as-cast structure and improve the material's properties. Hot working helps to refine the grain structure and enhance the mechanical properties of the alloy. The temperature and deformation parameters during this stage are carefully controlled to ensure optimal performance of the product.

Cold Rolling and Heat Treatment

The hot-worked material undergoes cold rolling to achieve the desired foil thickness. This process involves multiple passes through precision rollers, gradually reducing the thickness while increasing the length. Cold rolling also introduces work hardening, which affects the material's properties. Subsequent heat treatment is crucial to impart the shape memory and superelastic properties to the foil. This heat treatment, often referred to as "shape setting," involves heating the foil to a specific temperature and holding it in the desired shape before cooling. The precise temperature and duration of this process are tailored to achieve the optimal shape memory behavior for the intended application.

Applications of Shape Memory Nitinol Foil

Medical Devices and Implants

Shape memory nitinol foil has found extensive use in the medical field, revolutionizing the design of minimally invasive devices and implants. In cardiovascular applications, nitinol foil is used to create self-expanding stents that can be compressed for insertion and then expand to their predetermined shape once in place. This property allows for less invasive procedures and reduced trauma to patients. Orthodontic archwires made from nitinol foil provide constant, gentle force for tooth alignment, improving comfort and reducing treatment time. In neurosurgery, shape memory nitinol foil is utilized in aneurysm clips and guidewires, offering enhanced maneuverability and precision during delicate procedures.

Aerospace and Automotive Industries

The unique properties of the Shape memory nitinol foil make it an invaluable material in aerospace and automotive applications. In aircraft, nitinol foil is used in variable geometry chevrons for jet engines, which can adapt their shape to optimize performance and reduce noise during different flight phases. The automotive industry employs nitinol foil in actuators for climate control systems and in adaptive damping systems for improved ride comfort. The material's high fatigue resistance and ability to withstand extreme temperatures make it ideal for these demanding applications. Additionally, shape memory nitinol foil is explored for use in morphing aircraft structures and self-healing automotive components, pushing the boundaries of what's possible in vehicle design and performance.

Consumer Electronics and Robotics

Shape memory nitinol foil has made significant inroads into consumer electronics and robotics, enabling the creation of more compact and responsive devices. In smartphones and tablets, nitinol foil is used in haptic feedback mechanisms, providing tactile sensations that enhance user experience. The material's superelasticity is exploited in flexible antennas and connectors, allowing for more durable and bendable electronic devices. In robotics, shape memory nitinol foil actuators offer a lightweight alternative to traditional motors, enabling the development of more agile and energy-efficient robots. Soft robotics, in particular, benefits from the material's ability to change shape in response to electrical stimuli, opening up new possibilities for adaptive and biomimetic designs.

Conclusion

Shape memory nitinol foil has emerged as a versatile and innovative material with a wide range of applications across various industries. Its unique properties of shape memory and superelasticity have enabled the development of groundbreaking technologies in medicine, aerospace, automotive, and consumer electronics. As research continues to uncover new possibilities for this remarkable material, we can expect to see even more exciting applications in the future, pushing the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.



Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Ren, X. (2005). Physical metallurgy of Ti–Ni-based shape memory alloys. Progress in Materials Science, 50(5), 511-678.

2. Lagoudas, D. C. (Ed.). (2008). Shape memory alloys: modeling and engineering applications. Springer Science & Business Media.

3. Miyazaki, S., Fu, Y. Q., & Huang, W. M. (Eds.). (2009). Thin film shape memory alloys: fundamentals and device applications. Cambridge University Press.

4. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: a review. Materials & Design, 33, 577-640.

5. Jani, J. M., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design (1980-2015), 56, 1078-1113.

6. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.
