How does temperature affect the performance of shape memory nitinol foil?

The Fundamentals of Shape Memory Nitinol Foil

Composition and Crystal Structure

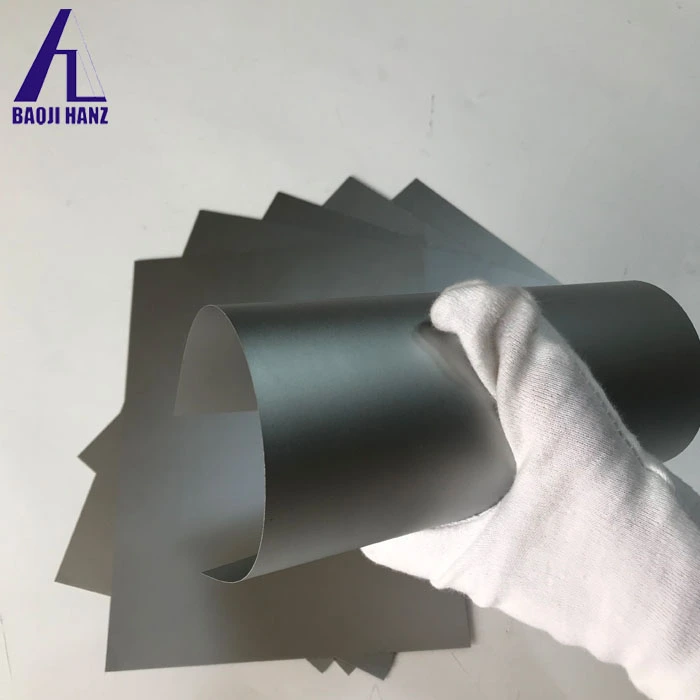

Shape  foil is composed of nickel and titanium in nearly equal atomic percentages. This unique alloy possesses a crystal structure that can transition between two distinct phases: austenite and martensite. The austenite phase, stable at higher temperatures, exhibits a cubic crystal structure, while the martensite phase, prevalent at lower temperatures, displays a more complex monoclinic structure. These phase transformations are the key to nitinol's shape memory and superelastic properties.

Thermomechanical Behavior

The thermomechanical behavior of shape memory nitinol foil is characterized by its ability to undergo reversible phase transformations in response to temperature changes. When cooled below its transformation temperature, nitinol transitions from austenite to martensite, allowing it to be deformed easily. Upon heating above this temperature, the material reverts to its austenite phase, recovering its original shape. This phenomenon, known as the shape memory effect, is the cornerstone of nitinol's unique capabilities.

Transformation Temperatures

The transformation temperatures of nitinol foil are critical parameters that determine its behavior. These temperatures include the austenite start (As) and finish (Af) temperatures, as well as the martensite start (Ms) and finish (Mf) temperatures. The specific values of these transformation temperatures can be tailored through precise control of the alloy composition and processing techniques, allowing for customization of nitinol foil properties for diverse applications.

Temperature-Dependent Performance Characteristics

Shape Recovery and Actuation

Temperature plays a pivotal role in the shape recovery and actuation capabilities of nitinol foil. As the material is heated above its austenite finish temperature (Af), it undergoes a rapid and forceful shape change, returning to its pre-programmed configuration. This temperature-induced actuation can generate significant forces, making nitinol foil an ideal candidate for compact, thermally-activated actuators and sensors. The rate and extent of shape recovery are directly influenced by the heating rate and the temperature differential between the material's current state and its Af temperature.

Superelasticity and Stress-Induced Martensite

At temperatures above Af, shape memory nitinol foil exhibits superelastic behavior. In this temperature range, applied stress can induce a phase transformation from austenite to martensite, allowing the material to undergo large, reversible deformations without permanent plastic deformation. The stress required to induce this transformation increases with temperature, resulting in a temperature-dependent stress-strain response. This characteristic makes nitinol foil particularly useful in applications requiring high elasticity and resistance to fatigue, such as in medical stents or flexible electronic devices.

Hysteresis and Energy Absorption

The temperature-dependent phase transformations in nitinol foil are associated with hysteresis, meaning the transformation temperatures during heating and cooling are not identical. This hysteresis loop represents the energy absorbed or released during the phase transformation process. The width of the hysteresis loop is influenced by temperature, with higher temperatures generally resulting in narrower loops. This temperature-dependent energy absorption capacity makes nitinol foil an excellent candidate for damping applications, where its ability to dissipate energy can be precisely controlled through temperature manipulation.

Practical Implications and Applications

Biomedical Applications

In the biomedical field, the temperature-sensitive properties of  nitinol foil are extensively utilized. Stents, guidewires, and orthodontic archwires made from nitinol take advantage of its superelasticity at body temperature. The material's ability to conform to body contours and exert gentle, constant forces makes it ideal for these applications. Moreover, the shape memory effect can be exploited in minimally invasive surgical tools that deploy or activate upon reaching body temperature, facilitating complex procedures through small incisions.

Aerospace and Actuator Technologies

The aerospace industry leverages the temperature-dependent performance of shape memory nitinol foil in various innovative applications. Adaptive wing structures utilize nitinol foil actuators that change shape in response to temperature variations, optimizing aerodynamic efficiency across different flight conditions. In satellite deployment mechanisms, nitinol foil components can be compactly stored and then activated by solar heating upon reaching orbit, providing a reliable and lightweight solution for deploying solar panels or antennas.

Smart Textiles and Wearable Technology

The integration of nitinol foil into textiles opens up exciting possibilities for smart clothing and wearable devices. Temperature-responsive nitinol threads can be woven into fabrics to create garments that adapt to environmental conditions or body temperature. For instance, jackets with nitinol elements can automatically adjust their insulation properties based on ambient temperature, while smart compression garments can provide variable pressure in response to muscle temperature during exercise. These applications showcase the potential of nitinol foil to create responsive, adaptive materials that enhance comfort and performance in wearable technology.

Conclusion

Temperature profoundly influences the performance of shape memory nitinol foil, dictating its phase transformations, mechanical properties, and functional capabilities. By understanding and harnessing these temperature-dependent characteristics, engineers and researchers can unlock the full potential of this remarkable material, driving innovations across diverse fields and pushing the boundaries of what's possible in smart material design.If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
