How does temperature affect the properties of nitinol ingots?

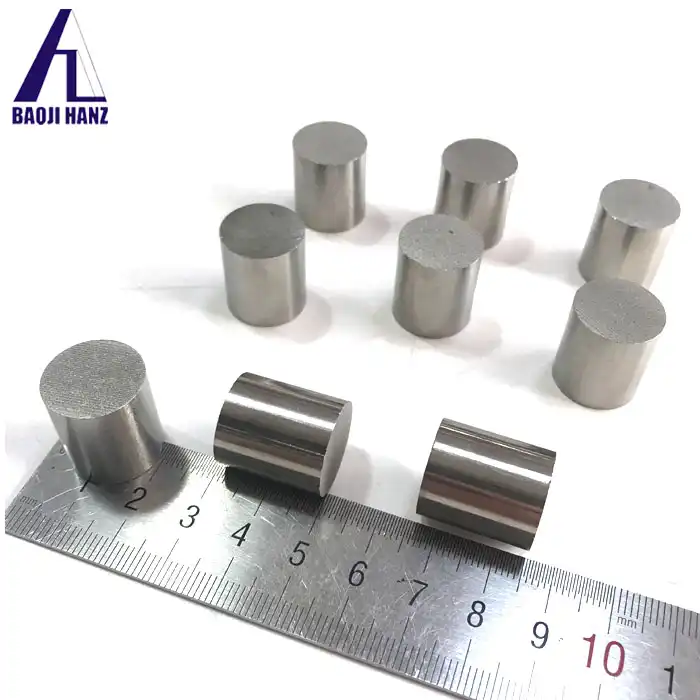

The Fundamental Temperature-Dependent Properties of Nitinol Ingots

Martensitic and Austenitic Phase Transformations

At the heart of nitinol's temperature-dependent behavior lies its ability to undergo phase transformations between two crystal structures: martensite and austenite. The temperature at which these transformations occur significantly impacts the properties of shape memory nitinol ingots. As temperature increases, nitinol transitions from its low-temperature martensite phase to its high-temperature austenite phase. This transformation is reversible and occurs over a specific temperature range, known as the transformation temperature range. The martensite start temperature (Ms) marks the beginning of the transformation to martensite upon cooling, while the martensite finish temperature (Mf) indicates its completion. Similarly, the austenite start temperature (As) and austenite finish temperature (Af) define the heating transformation. These critical temperatures can be tailored through precise control of the alloy composition and thermomechanical processing, allowing for customization of nitinol ingots for specific applications.

Shape Memory Effect and Temperature

The shape memory effect, a hallmark property of nitinol ingots, is intricately linked to temperature changes. When a shape memory nitinol ingot is deformed at a temperature below its transformation range, it remains in that shape until heated above its austenite finish temperature. Upon heating, the ingot "remembers" its original shape and returns to it. This phenomenon occurs due to the reversible martensitic transformation, where the crystal structure shifts from a lower symmetry (martensite) to a higher symmetry (austenite) configuration. The temperature at which this shape recovery occurs can be precisely controlled by adjusting the alloy composition. This allows for the creation of nitinol ingots with specific activation temperatures, making them suitable for diverse applications ranging from thermostatic control systems to self-expanding medical stents.

Superelasticity and Its Temperature Dependence

Superelasticity, another remarkable property of nitinol ingots, exhibits a strong dependence on temperature. This phenomenon allows nitinol to undergo large deformations and return to its original shape upon unloading, without permanent deformation. The superelastic behavior is observed when the material is above its austenite finish temperature but below a critical temperature known as Md (the highest temperature at which martensite can be stress-induced). Within this temperature range, applied stress can induce a phase transformation from austenite to martensite. Upon removal of the stress, the material reverts to austenite, recovering its original shape. The stress required to induce this transformation increases with temperature, leading to a direct correlation between temperature and the superelastic properties of nitinol ingots. This temperature sensitivity allows for the design of nitinol components with specific stress-strain behaviors tailored to their operating temperatures.

Heat Treatment and Its Impact on Nitinol Ingot Properties

Annealing and Shape Setting

Heat treatment processes, particularly annealing and shape setting, play a pivotal role in defining the properties of shape memory nitinol ingots. Annealing involves heating the material to a specific temperature and holding it for a predetermined time before cooling. This process can alter the transformation temperatures, adjust the shape memory effect, and modify the mechanical properties of the ingot. Shape setting is a crucial heat treatment step that imparts the "memory" shape to nitinol ingots. By heating the material to temperatures typically between 400°C and 550°C while constrained in the desired shape, the atomic structure is rearranged, setting the new shape memory. The specific temperature and duration of this process significantly influence the stability and repeatability of the shape memory effect in nitinol ingots.

Precipitation Hardening

Precipitation hardening is another temperature-dependent process that can enhance the mechanical properties of nitinol ingots. By carefully controlling the temperature and duration of heat treatment, precipitates can be formed within the nitinol matrix. These precipitates act as obstacles to dislocation movement, increasing the strength and hardness of the material. The size, distribution, and volume fraction of these precipitates are highly sensitive to the heat treatment temperature and time. Optimal precipitation hardening can lead to improved fatigue resistance and enhanced shape memory characteristics in nitinol ingots, making this process crucial for applications requiring high cyclic loading, such as in the aerospace and automotive industries.

Grain Size Control

The grain size of nitinol ingots, which significantly affects their mechanical and shape memory properties, is heavily influenced by heat treatment temperatures. Higher annealing temperatures typically result in larger grain sizes, while lower temperatures and shorter durations can maintain finer grain structures. Fine-grained nitinol ingots often exhibit improved strength and fatigue resistance, but may have slightly reduced shape memory strain. Controlling the grain size through precise temperature management during heat treatment allows manufacturers to tailor the properties of nitinol ingots for specific applications. For instance, medical devices might require a balance between strength and flexibility, achievable through careful grain size optimization via heat treatment protocols.

Environmental Temperature Effects on Nitinol Ingot Performance

Operational Temperature Range

The performance of shape memory nitinol ingots in various applications is critically dependent on the environmental temperature in which they operate. The operational temperature range of a nitinol component must be carefully considered in relation to its transformation temperatures. For optimal shape memory and superelastic behavior, the material should be used within a specific temperature window above its austenite finish temperature (Af) but below the Md temperature. Operating nitinol ingots outside their designed temperature range can lead to unexpected behavior. For instance, if a superelastic nitinol component is used below its Af temperature, it may exhibit incomplete shape recovery or require higher stresses for deformation. Conversely, operating too close to or above the Md temperature can result in plastic deformation rather than the desired superelastic response.

Thermal Cycling and Fatigue

Repeated thermal cycling of nitinol ingots through their transformation temperature range can lead to changes in their properties over time. This phenomenon, known as thermal fatigue, can affect the stability of the shape memory effect and alter the transformation temperatures. The extent of these changes depends on factors such as the number of thermal cycles, the temperature range, and the rate of heating and cooling. Understanding and mitigating the effects of thermal cycling is crucial for applications where nitinol ingots are subjected to frequent temperature fluctuations. Proper design and material selection can help minimize these effects, ensuring long-term reliability and consistent performance of nitinol components in thermally dynamic environments.

Temperature-Induced Stress

Temperature changes can induce significant stresses in constrained nitinol ingots due to their unique thermal expansion behavior. Unlike most metals, nitinol can exhibit negative thermal expansion in certain temperature ranges, particularly near its transformation temperatures. This behavior can lead to complex stress states in nitinol components, especially in applications where the material is rigidly constrained. Designers must account for these temperature-induced stresses when developing nitinol-based systems. Failure to do so can result in unexpected deformations, premature fatigue, or even structural failure. Careful consideration of the thermal environment and appropriate design strategies, such as incorporating stress relief mechanisms or optimizing component geometry, can help mitigate these temperature-related challenges in nitinol applications.

Conclusion

The profound influence of temperature on the properties of shape memory nitinol ingots underscores the importance of thermal considerations in their design and application. From phase transformations to heat treatments and environmental effects, temperature plays a multifaceted role in defining nitinol's behavior. By leveraging this temperature dependence, engineers and researchers can harness the full potential of nitinol ingots, opening doors to innovative solutions across various industries. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
