How does the shape memory effect in Nitinol sheets work?
2024-11-06 10:16:19

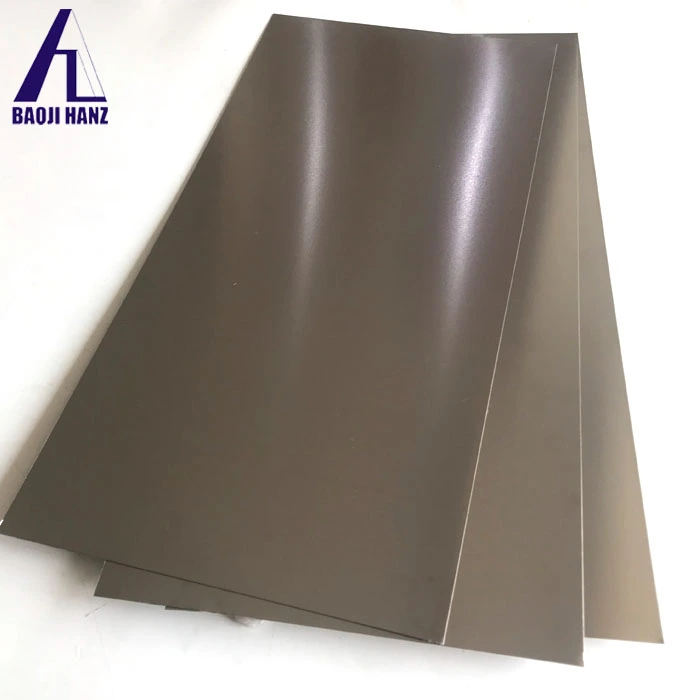

The shape memory effect in Nitinol sheets is a remarkable phenomenon that has transformed industries like medical devices and aerospace. Nitinol, a nickel titanium shape alloy sheet, returns to its original shape when heated above a specific transition temperature. This effect is due to the material's crystal structure, which undergoes a reversible phase change between martensite (soft and deformable) and austenite (rigid and shape-retaining). When heated, Nitinol shifts from martensite to austenite, causing it to revert to its pre-programmed shape. The effect can also be triggered by electrical current or mechanical stress, making Nitinol highly versatile for various applications.
The Science Behind Nitinol's Shape Memory Properties
Crystal Structure and Phase Transformations
The shape memory effect in Nitinol sheets is rooted in the material's unique crystal structure and its ability to undergo phase transformations. At room temperature, Nitinol typically exists in its martensite phase, characterized by a twinned crystal structure. This configuration allows the material to be easily deformed without permanent damage to its atomic bonds.When heated above its transition temperature, Nitinol transforms into the austenite phase. This phase change involves a shift in the crystal lattice, resulting in a more rigid and symmetric structure. The austenite phase "remembers" the original shape of the Nitinol sheet, causing it to revert to its pre-programmed form.
Thermomechanical Processing
The shape memory properties of Nitinol sheets are not inherent to the material but are imparted through careful thermomechanical processing. This process involves heating the alloy to high temperatures, typically above 500°C, and then rapidly cooling it while maintaining a specific shape. This treatment establishes the "memory" of the desired form within the material's crystal structure.During subsequent deformation at lower temperatures, the nickel titanium shape alloy sheet can be bent or twisted into various shapes. However, when heated above its transition temperature, the material will "remember" its original form and return to it, demonstrating the shape memory effect.
One-Way vs. Two-Way Shape Memory Effect
Nitinol sheets can exhibit either a one-way or two-way shape memory effect. In the one-way effect, the material returns to its original shape upon heating but does not automatically revert to the deformed state when cooled. This is the more common form of shape memory behavior in Nitinol sheets.The two-way shape memory effect, on the other hand, allows the material to remember both its high-temperature and low-temperature shapes. This more complex behavior requires additional training of the Nitinol sheet through repeated cycling between its austenite and martensite phases under specific conditions.
Applications of Shape Memory Nitinol Sheets
Medical Devices and Implants
Nitinol sheets, known for their shape memory effect, have various medical applications. A key use is in self-expanding stents for cardiovascular procedures, which are compressed for insertion and expand to support open arteries. Nitinol is also used in orthodontic archwires, leveraging its superelasticity to apply consistent force to teeth. Additionally, shape memory Nitinol is used in minimally invasive surgical instruments, enabling tools to change shape inside the body for complex procedures.
Aerospace and Automotive Industries
In aerospace, Nitinol sheets with shape memory properties are used in actuators for aircraft control surfaces and deployable satellite structures. The material's ability to change shape with temperature makes it ideal for adaptive structures that optimize performance in varying flight conditions. In the automotive industry, nickel titanium shape alloy sheet is used in thermostatic control valves and impact-absorbing structures, allowing components to respond to temperature changes or impacts, improving vehicle safety and efficiency.
Consumer Products and Robotics
The unique properties of shape memory Nitinol sheets have found their way into various consumer products. Eyeglass frames made from Nitinol can bend and flex without permanent deformation, returning to their original shape when released. In the field of robotics, Nitinol actuators are used to create artificial muscles that can mimic the movement of biological systems, opening up new possibilities for soft robotics and biomimetic designs.
Factors Affecting the Shape Memory Effect in Nitinol Sheets
Composition and Alloying Elements
The shape memory effect in Nitinol sheets is highly dependent on the precise composition of the alloy. The ratio of nickel to titanium in the material significantly influences its transformation temperatures and mechanical properties. Small variations in composition can lead to substantial changes in the shape memory behavior of the alloy.Additionally, the introduction of tertiary alloying elements, such as copper or iron, can modify the shape memory characteristics of Nitinol sheets. These elements can alter the transformation temperatures, hysteresis, and mechanical properties of the alloy, allowing for the fine-tuning of its behavior for specific applications.
Thermomechanical Treatment
Thermomechanical treatment of nickel titanium shape alloy sheets is crucial in determining their shape memory properties. The heat treatment temperature, duration, and cooling rate all affect the alloy’s final characteristics. Precise control of these factors is essential for achieving the desired shape memory behavior. Cold working and annealing processes can also modify properties, altering transformation temperatures, strength, ductility, and potentially inducing a two-way shape memory effect.
Environmental Conditions
The performance of shape memory Nitinol sheets can be influenced by environmental factors. Temperature fluctuations can affect the material's phase transformation, altering its shape memory response. Mechanical stresses and cyclic loading may impact the long-term stability of the effect, leading to fatigue or degradation. Additionally, corrosive substances or radiation can affect surface properties and overall performance. Understanding these factors is essential for designing reliable and durable shape memory components for specific applications.
Conclusion
The shape memory effect in Nitinol sheets is a remarkable property that continues to captivate researchers and engineers alike. This unique behavior, rooted in the material's ability to undergo reversible phase transformations, has opened up a world of possibilities across various industries. From life-saving medical devices to innovative aerospace components, Nitinol's shape memory capabilities have proven invaluable in countless applications.If you want to get more information about this nickel titanium shape alloy sheet, you can contact us at baojihanz-niti@hanztech.cn.
References
1. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge University Press.
2. Lagoudas, D. C. (Ed.). (2008). Shape memory alloys: modeling and engineering applications. Springer Science & Business Media.
3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.
4. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: a review. Materials & Design, 33, 577-640.
5. Morgan, N. B. (2004). Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 378(1-2), 16-23.
6. Barbarino, S., Flores, E. I. S., Ajaj, R. M., Dayyani, I., & Friswell, M. I. (2014). A review on shape memory alloys with applications to morphing aircraft. Smart Materials and Structures, 23(6), 063001.
