How does the shape memory effect of Nitinol work in closed rings?

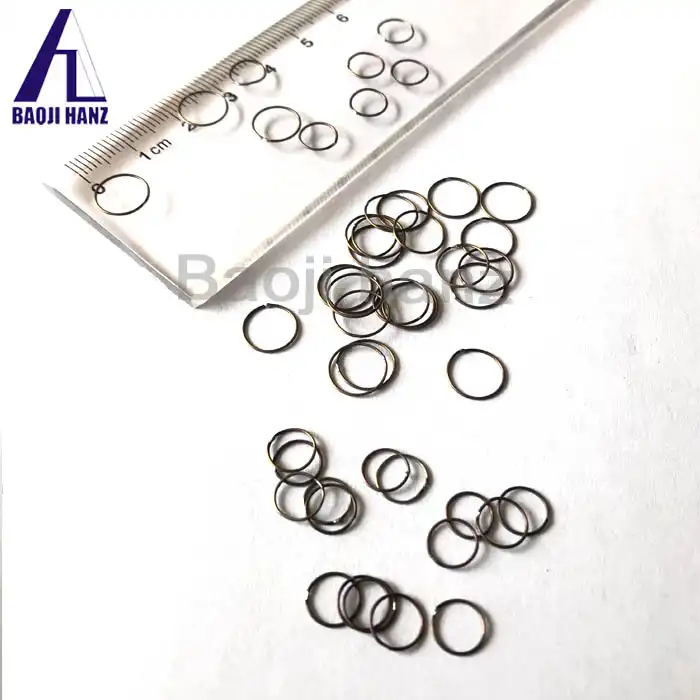

Understanding the Shape Memory Effect in Nitinol Closed Rings

Crystalline Structure and Phase Transformations

The shape memory effect in Nitinol closed rings is intrinsically linked to the alloy's crystalline structure and its ability to undergo phase transformations. At high temperatures, Nitinol exists in an austenite phase, characterized by a cubic crystal structure. When cooled below a certain temperature, it transforms into a martensite phase with a monoclinic crystal structure. This transformation is key to the shape memory effect. In Nitinol closed rings, the phase transformation occurs uniformly throughout the entire circumference. When the ring is cooled and deformed, the crystal structure shifts to accommodate the new shape. Upon heating, the atoms realign to their original austenite configuration, causing the ring to revert to its memorized circular form.

Temperature-Dependent Behavior

The behavior of Nitinol closed rings is highly temperature-dependent. The transformation temperatures, including the austenite start (As), austenite finish (Af), martensite start (Ms), and martensite finish (Mf) temperatures, play crucial roles in determining the ring's response to thermal stimuli. When a Nitinol closed ring is cooled below Mf, it becomes fully martensitic and can be easily deformed. Heating the ring above As initiates the shape recovery process, with full recovery achieved when the temperature exceeds Af. This temperature-controlled behavior allows for precise manipulation of the ring's shape in various applications.

Stress-Induced Martensite Formation

In addition to temperature-induced transformations, Nitinol closed rings can exhibit stress-induced martensite formation. When stress is applied to the ring above its transformation temperature, it can temporarily deform through the creation of stress-induced martensite. Upon removal of the stress, the ring immediately returns to its original shape, demonstrating superelasticity. This property is particularly useful in applications where the Nitinol closed ring needs to withstand repeated deformations without permanent shape change, such as in medical stents or flexible eyeglass frames.

Applications of Shape Memory Effect in Nitinol Closed Rings

Medical Devices and Implants

The shape memory effect of Nitinol closed rings has revolutionized the field of medical devices and implants. These rings are extensively used in the creation of self-expanding stents for cardiovascular applications. When compressed and cooled, the stent can be easily inserted into a catheter. Once deployed in the body and exposed to body temperature, it expands to its pre-programmed shape, effectively opening blocked arteries. The product are also utilized in orthodontic archwires, where their superelastic properties allow for the application of constant, gentle forces to move teeth over extended periods. The temperature-responsive nature of these rings ensures optimal performance in the oral environment.

Aerospace and Automotive Industries

In aerospace applications, Nitinol closed rings find use in deployable structures and actuators. Their ability to change shape in response to temperature variations makes them ideal for creating compact, lightweight mechanisms that can unfold or activate in space. For instance, these rings can be used in solar panel deployment systems or antenna unfurling mechanisms on satellites. The automotive industry leverages the product in various components, such as temperature-activated valves and sensors. These rings can be designed to respond to specific temperature thresholds, enabling precise control of fluid flow or mechanical movements in engine systems.

Consumer Products and Wearable Technology

The unique properties of Nitinol closed rings have found their way into consumer products and wearable technology. Eyeglass frames made with Nitinol rings offer exceptional durability and flexibility, allowing them to withstand significant deformation without permanent damage. In the realm of wearable technology, these rings are used in smart clothing and accessories that can adapt to body temperature or environmental conditions. Designers and artists have also embraced the product for creating interactive sculptures and kinetic art pieces that respond to temperature changes, showcasing the alloy's captivating shape-changing abilities in aesthetic applications.

Manufacturing and Design Considerations for Nitinol Closed Rings

Material Selection and Composition

The performance of Nitinol closed rings heavily depends on the precise composition of the alloy. The ratio of nickel to titanium, typically around 55% nickel and 45% titanium by weight, can be finely tuned to achieve specific transformation temperatures and mechanical properties. Small variations in composition can significantly affect the ring's behavior, making material selection a critical aspect of manufacturing. Additionally, the inclusion of trace elements or tertiary alloying components can further modify the properties of Nitinol closed rings. For example, adding copper can lower the deformation stress required for the shape memory effect, while chromium can increase the transformation temperatures.

Heat Treatment and Shape Setting

The shape memory effect in Nitinol closed rings is imparted through a carefully controlled heat treatment process. This process, known as shape setting, involves heating the ring to a high temperature (typically around 500°C) while constraining it in the desired shape, followed by rapid cooling. The duration and temperature of this heat treatment significantly influence the final properties of the ring. Multiple shape memory configurations can be programmed into a single Nitinol closed ring through sophisticated heat treatment techniques. This allows for the creation of rings that can transition between more than two shapes, expanding their potential applications in complex mechanisms and smart systems.

Surface Treatment and Biocompatibility

For applications in medical devices or implants, the surface treatment of Nitinol closed rings is crucial. Techniques such as electropolishing or passivation are employed to create a stable titanium oxide layer on the surface, enhancing corrosion resistance and biocompatibility. This surface treatment is essential for preventing nickel leaching and ensuring long-term safety in biological environments. Advanced coating technologies, such as diamond-like carbon (DLC) coatings or bioactive ceramic layers, can be applied to Nitinol closed rings to further improve their performance and compatibility in specific applications, expanding their utility in diverse fields from medicine to industrial sensors.

Conclusion

The shape memory effect in Nitinol closed rings represents a pinnacle of materials science, offering unique solutions across various industries. From medical innovations to aerospace advancements, these remarkable alloy rings continue to push the boundaries of what's possible in engineering and design. As research progresses, we can anticipate even more revolutionary applications leveraging the extraordinary properties of the product. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
