How is a Nitinol compression spring manufactured?

Material Preparation and Selection

Nitinol Composition and Properties

The journey of a nitinol compression spring begins with the careful selection of the nitinol alloy. Nitinol, an acronym for Nickel Titanium Naval Ordnance Laboratory, is typically composed of approximately 55% nickel and 45% titanium. This precise composition is crucial as it determines the alloy's transformation temperatures and mechanical properties. The unique characteristics of nitinol, including its superelasticity and shape memory effect, stem from its ability to undergo a reversible, solid-state phase transformation between austenite and martensite structures. Manufacturers must consider factors such as the desired transition temperature, which can be fine-tuned by adjusting the nickel-titanium ratio or incorporating small amounts of other elements like copper or niobium. The selection process also involves evaluating the specific requirements of the intended application, such as the operating temperature range, required force output, and cycle life expectations.

Purification and Melting Process

Once the composition is determined, the raw materials undergo a rigorous purification process to ensure the highest quality alloy. This typically involves vacuum induction melting (VIM) or vacuum arc remelting (VAR) techniques. These methods are crucial for removing impurities and achieving a homogeneous composition throughout the material. During VIM, the nickel and titanium are melted together in a vacuum or inert gas environment to prevent oxidation and contamination. The molten alloy is then cast into ingots. VAR may be used as a secondary process to further refine the material structure and eliminate any remaining impurities. This step is critical for ensuring the consistency and reliability of the nitinol's properties, which directly impact the performance of the final compression spring.

Initial Forming and Heat Treatment

The nitinol ingots are subsequently processed into wire or rod form through a series of hot working and cold drawing operations. This process not only shapes the material but also influences its microstructure and mechanical properties. The wire or rod is typically annealed at high temperatures (around 600-800°C) to relieve internal stresses and optimize the material's structure for further processing. Following the initial forming, the nitinol undergoes a critical heat treatment process known as "shape setting." This involves heating the material to temperatures between 400-550°C while constraining it in the desired spring shape. The specific temperature and duration of this treatment are carefully controlled to impart the shape memory effect and set the transition temperatures. This step is fundamental in ensuring that the spring will return to its programmed shape when heated above its transformation temperature.

Spring Forming Techniques

Cold Working and Coiling Methods

The formation of nitinol into a compression spring involves specialized techniques that differ from those used for conventional spring materials. Cold working is a prevalent method, where the nitinol wire is wound around a mandrel at room temperature to create the desired coil shape. This process requires precise control of the winding tension and coil diameter to achieve the specified spring characteristics. Advanced coiling machines equipped with computer numerical control (CNC) systems are often employed to ensure accuracy and repeatability in the spring forming process. These machines can produce springs with tight tolerances in terms of pitch, diameter, and length. The cold working process also serves to strengthen the nitinol through work hardening, enhancing its mechanical properties.

Hot Forming Techniques

For certain applications or larger diameter springs, hot forming techniques may be employed. In this method, the nitinol is heated to temperatures above its recrystallization point (typically around 600°C) and then formed into the spring shape. This approach can be advantageous for creating springs with complex geometries or when working with thicker wire diameters that are challenging to cold work. Hot forming allows for greater flexibility in shaping the nitinol but requires careful temperature control to prevent unwanted changes in the material's microstructure. The spring is rapidly cooled after forming to preserve its shape and properties. This technique can result in springs with excellent shape retention and reduced residual stresses compared to cold-worked springs.

Precision Machining for Custom Designs

In some cases, particularly for highly specialized or complex spring designs, precision machining techniques may be employed. Computer-aided design (CAD) and computer-aided manufacturing (CAM) systems are utilized to create intricate spring geometries that may not be achievable through traditional coiling methods. Electrical discharge machining (EDM) or laser cutting can be used to fabricate springs from nitinol sheet or tube stock. These methods offer unparalleled precision and the ability to create unique spring designs with features such as variable pitch, non-circular cross-sections, or integrated attachment points. While more time-consuming and costly than conventional coiling, these advanced manufacturing techniques open up new possibilities for nitinol compression spring applications in fields like medical devices and aerospace.

Post-Processing and Quality Control

Heat Treatment and Shape Memory Training

After the initial forming, nitinol compression springs undergo a critical post-processing phase to optimize their shape memory and superelastic properties. This involves a series of precise heat treatments that fine-tune the material's crystalline structure and set the transition temperatures. The springs are typically heated to temperatures between 400°C and 550°C for specific durations, with the exact parameters depending on the desired properties and application requirements. Shape memory training is a crucial step in this process, where the spring is cycled through its transformation temperatures multiple times while constrained in its desired shape. This "educates" the nitinol, reinforcing its ability to remember and return to its programmed form. The number of cycles and the specific temperatures used during training can significantly influence the spring's performance characteristics, including its transformation temperatures, force output, and fatigue resistance.

Surface Treatment and Passivation

The surface quality of nitinol compression springs plays a vital role in their performance and longevity, particularly in corrosive environments or biomedical applications. Various surface treatments may be applied to enhance the spring's properties and appearance. Electropolishing is a common technique used to remove surface imperfections and create a smooth, uniform finish. This process not only improves the spring's aesthetic qualities but also enhances its corrosion resistance by removing surface contaminants and creating a protective oxide layer. Passivation is another critical step, especially for springs destined for use in the human body or other demanding environments. This chemical treatment process further strengthens the protective oxide layer on the nitinol surface, significantly improving its resistance to corrosion and biocompatibility. For some applications, additional coatings such as titanium nitride (TiN) or diamond-like carbon (DLC) may be applied to further enhance wear resistance or modify surface properties.

Testing and Quality Assurance

Rigorous testing and quality assurance procedures are essential to ensure that nitinol compression springs meet the exacting standards required for their intended applications. A battery of tests is typically performed to verify the spring's mechanical properties, transformation temperatures, and long-term performance. These may include:

• Differential scanning calorimetry (DSC) to accurately determine transformation temperatures
• Tensile and compression testing to evaluate strength and elasticity
• Fatigue testing to assess long-term durability and cycle life
• Corrosion resistance testing, particularly for medical or industrial applications

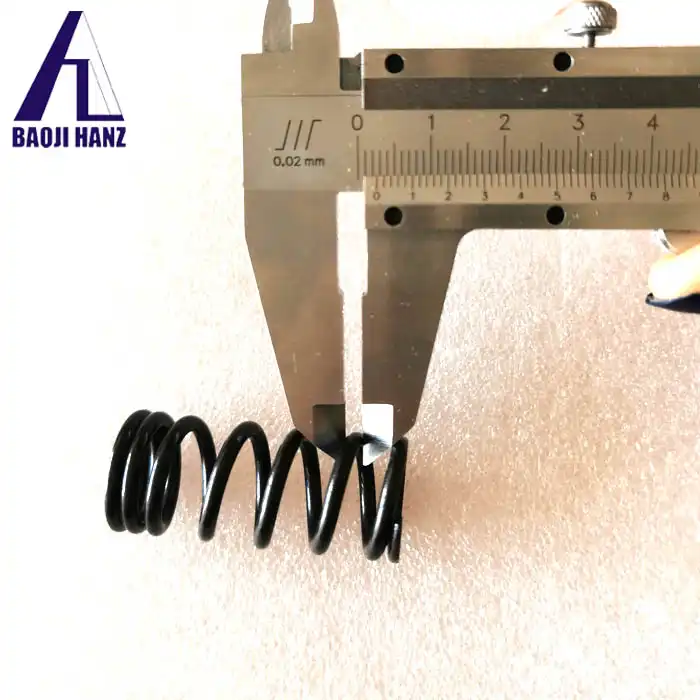

• Dimensional inspection using high-precision measurement tools to ensure compliance with specifications

Advanced imaging techniques such as scanning electron microscopy (SEM) may be employed to examine the microstructure and surface quality of the springs. Non-destructive testing methods like X-ray diffraction or ultrasonic inspection can be used to detect any internal defects or inconsistencies in the material. Quality control measures also extend to the manufacturing environment, with strict protocols in place to prevent contamination and ensure consistent production conditions. Traceability is maintained throughout the manufacturing process, allowing for complete documentation of each spring's history from raw material to finished product.

Conclusion

The manufacture of nitinol compression springs is a sophisticated process that combines advanced materials science with precision engineering. From careful material selection and preparation to specialized forming techniques and rigorous post-processing, each step is crucial in creating springs that harness the unique properties of nitinol. As technology continues to advance, new manufacturing methods and quality control techniques are likely to emerge, further expanding the capabilities and applications of these remarkable components. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
