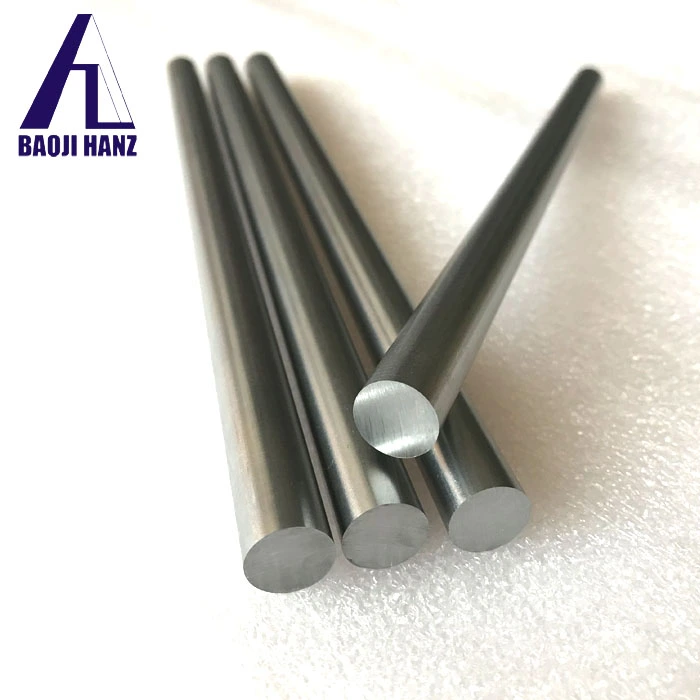

How is a shape memory nitinol rod manufactured?

Raw Material Preparation and Melting

Selection of High-Purity Nickel and Titanium

The manufacturing process of nitinol rods begins with the careful selection of raw materials. High-purity nickel and titanium are essential components for creating nitinol alloys with optimal shape memory properties. The purity of these elements directly influences the performance and reliability of the final product. Manufacturers typically source pharmaceutical-grade nickel and titanium to ensure the highest quality standards are met.

Precise Composition Control

Achieving the desired shape memory effect in Shape memory nitinol rods requires precise control over the alloy composition. The ratio of nickel to titanium is critical, typically ranging from 54.5% to 57% nickel by weight. Even slight deviations from the optimal composition can significantly affect the alloy's transformation temperatures and mechanical properties. Advanced analytical techniques, such as X-ray fluorescence spectroscopy, are employed to verify the elemental composition before proceeding to the melting stage.

Vacuum Arc Remelting (VAR) Process

The melting of nickel and titanium to form nitinol is performed using the Vacuum Arc Remelting (VAR) process. This sophisticated technique ensures the production of high-quality, homogeneous ingots while minimizing contamination. The VAR process involves melting the raw materials in a vacuum chamber using an electric arc. The molten alloy is then slowly solidified in a water-cooled copper crucible, resulting in a uniform microstructure and consistent chemical composition throughout the ingot.

Ingot Processing and Shape Formation

Hot Working and Forging

Once the nitinol ingot is solidified, it undergoes a series of hot working processes to break down its as-cast structure and improve its mechanical properties. Hot forging is a common technique used to reshape the ingot into more manageable forms, such as billets or bars. This process involves heating the ingot to temperatures above its recrystallization point (typically around 800°C to 1000°C) and applying controlled deformation through hydraulic presses or hammers. Hot working helps refine the grain structure, enhance ductility, and eliminate any residual porosity in the material.

Cold Drawing and Intermediate Annealing

To produce shape memory nitinol rods with specific diameters and mechanical properties, the hot-worked material undergoes cold drawing. This process involves pulling the nitinol through a series of progressively smaller dies to reduce its cross-sectional area and increase its length. Cold drawing imparts significant work hardening to the material, necessitating intermediate annealing steps to restore ductility and prevent cracking. The annealing process is carefully controlled to maintain the desired microstructure and transformation characteristics of the nitinol alloy.

 Final Shaping and Surface Treatment

The final stage of shape formation involves precision grinding or centerless grinding to achieve the desired rod diameter and surface finish. This step is crucial for ensuring dimensional accuracy and removing any surface defects introduced during the drawing process. Additionally, various surface treatments may be applied to enhance the corrosion resistance and biocompatibility of the nitinol rods, particularly for medical applications. These treatments may include electropolishing, passivation, or the application of specialized coatings to optimize the rod's performance in its intended application.

Heat Treatment and Shape Memory Imprinting

Austenite Finish Temperature Adjustment

One of the most critical steps in manufacturing shape memory nitinol rods is the heat treatment process, which determines the alloy's transformation temperatures and shape memory behavior. The austenite finish temperature (Af) is particularly important, as it defines the temperature at which the material completes its transformation to the austenite phase and recovers its pre-set shape. Manufacturers carefully adjust the Af temperature through precise heat treatment protocols, typically involving heating the nitinol rods to temperatures between 400°C and 550°C for specific durations, followed by rapid cooling.

Shape Setting and Memorization

To impart the desired shape memory effect, nitinol rods undergo a shape-setting process. This involves constraining the rod in the desired final shape using fixtures or mandrels and subjecting it to a high-temperature heat treatment, usually between 450°C and 550°C. The duration of this treatment can range from a few minutes to several hours, depending on the complexity of the shape and the specific alloy composition. During this process, the crystal structure of the nitinol realigns, effectively "memorizing" the new shape. Upon cooling, the rod retains this shape and can be deformed at lower temperatures, only to return to its memorized form when heated above its transformation temperature.

Multiple Shape Memory Training

Advanced applications may require nitinol rods with multiple shape memory effects or complex transformation behaviors. In such cases, manufacturers employ sophisticated training techniques to program the material with multiple shape memories. This process involves subjecting the nitinol rod to a series of thermomechanical cycles, alternating between different shapes and temperatures. Through careful control of stress, strain, and temperature parameters, it's possible to create nitinol rods that exhibit two-way shape memory effects or sequential shape changes in response to varying temperature or stress conditions.

Conclusion

The manufacturing of shape memory nitinol rods is a complex process that combines metallurgical expertise with advanced materials science. From raw material selection to final shape memory imprinting, each step requires precision and careful control to produce rods with optimal performance characteristics. As research in this field continues to advance, we can expect even more sophisticated manufacturing techniques and applications for these remarkable materials.If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
