How is Nitinol flat wire manufactured and shaped?

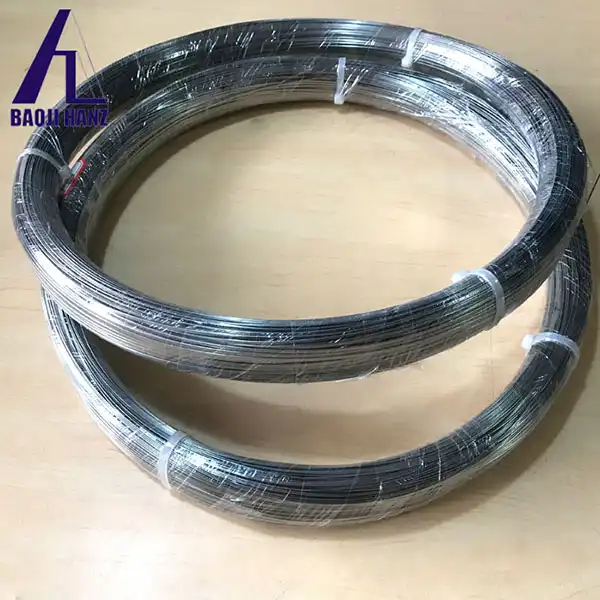

The Fundamentals of Nitinol Flat Wire Production

Raw Material Preparation and Composition

The journey of Shape memory nitinol flat wire begins with the careful selection and preparation of raw materials. Typically, high-purity nickel and titanium are combined in a precise ratio, usually around 55% nickel and 45% titanium by weight. This composition is crucial for achieving the desired shape memory and superelastic properties. The metals are melted together in a vacuum or inert atmosphere to prevent oxidation and ensure the purity of the alloy.

Ingot Formation and Initial Processing

After nickel and titanium are thoroughly mixed, the resulting molten alloy is cast into ingots, which serve as the foundation for subsequent processing. These ingots are essential for producing the desired properties of Nitinol, a nickel-titanium alloy known for its unique shape memory and superelasticity. Once solidified, the Nitinol undergoes a critical homogenization heat treatment. This process ensures a uniform composition throughout the material, which is vital for achieving consistent mechanical and thermal properties in the final product. The careful control of temperature and time during this heat treatment is essential, as it affects the microstructure and overall performance of the Nitinol. By prioritizing uniformity, manufacturers can ensure that the material will behave predictably in applications, whether in medical devices, automotive components, or other advanced engineering fields. This meticulous approach to processing is key to unlocking the full potential of Nitinol's unique characteristics.

Hot Working and Shape Transformation

The Nitinol ingots undergo hot working processes like forging or extrusion. These techniques are essential for breaking down the as-cast structure, enhancing the material's overall properties. Careful control of the hot working temperature is crucial to maintain the desired microstructure and prevent unwanted phase transformations. This stage effectively transforms the bulky ingot into a more manageable form for further processing, allowing for improved ductility and strength. By optimizing the hot working conditions, manufacturers can ensure that the resulting material exhibits the desired characteristics necessary for its intended applications, making it suitable for various engineering and medical uses.

Specialized Techniques in Nitinol Flat Wire Shaping

Cold Drawing and Intermediate Annealing

To achieve the flat wire form, the Shape memory nitinol flat wire undergoes a series of cold drawing operations. This process involves pulling the material through progressively smaller dies, reducing its cross-sectional area and increasing its length. Between drawing stages, the wire is subjected to intermediate annealing treatments. These heat treatments relieve internal stresses, restore ductility, and maintain the material's shape memory characteristics.

Precision Rolling for Flat Profile

The transformation from round wire to flat wire occurs through precision rolling. Specialized rolling mills with carefully designed rolls shape the wire into its flat profile. The rolling process is meticulously controlled to achieve the desired thickness and width while maintaining uniform properties across the wire's cross-section. This step requires expert knowledge to prevent defects and ensure consistent dimensions.

Surface Treatment and Finishing

After achieving the flat profile, the Shape memory nitinol flat wire undergoes surface treatments to enhance its performance and appearance. These may include chemical etching to remove surface oxides, electropolishing for a smooth finish, or applying protective coatings. The surface quality is crucial for many applications, particularly in medical devices where biocompatibility is paramount.

Advanced Processing and Quality Control

Shape Setting and Memory Training

One of the most fascinating aspects of Nitinol flat wire production is the shape-setting process. The wire is constrained in the desired final shape and subjected to a specific heat treatment. This "trains" the material to remember this shape, allowing it to return to this configuration when heated above its transformation temperature. The precise temperature and duration of this treatment are critical for achieving the desired shape memory effect.

Rigorous Testing and Characterization

Throughout the manufacturing process, the Nitinol flat wire undergoes extensive testing and characterization. This includes mechanical testing to verify strength and flexibility, thermal analysis to confirm transformation temperatures, and microscopic examination to assess microstructure. Advanced techniques like differential scanning calorimetry (DSC) and X-ray diffraction (XRD) may be employed to analyze the material's phase composition and crystalline structure.

Customization and Specialized Applications

The versatility of Nitinol flat wire allows for customization to meet specific application requirements. Manufacturers can adjust the alloy composition, processing parameters, and final dimensions to tailor the wire's properties. This adaptability has led to its use in diverse fields, from minimally invasive medical devices to aerospace actuators and consumer electronics.

Conclusion

The manufacture and Shape memory nitinol flat wire is a complex process that combines metallurgical expertise with precision engineering. From raw material selection to final shape setting, each step is crucial in producing a high-quality product with remarkable shape memory properties. As research continues, we can expect even more innovative applications for this extraordinary material. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
