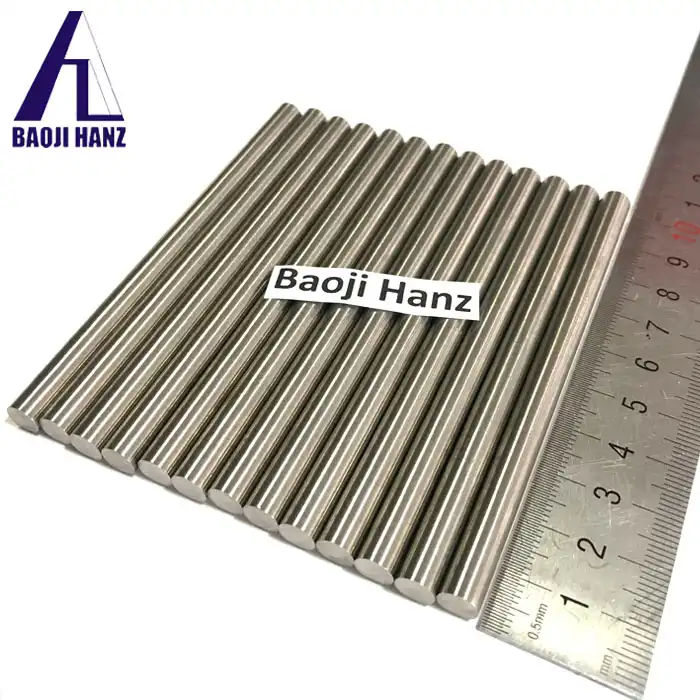

How is Nitinol ingot bar produced?

Nitinol ingot bar production is a sophisticated process that combines precision engineering and advanced metallurgy. The manufacturing of nitinol ingot bars begins with carefully selecting and melting high-purity nickel and titanium in specific proportions. This molten mixture is then cast into ingots using vacuum induction melting or vacuum arc remelting techniques. The resulting nitinol ingot bar undergoes a series of heat treatments and mechanical processing steps to achieve its unique shape memory and superelastic properties. These processes include homogenization, hot working, cold working, and precise heat treatments. The final nitinol ingot bar exhibits exceptional characteristics, including shape memory effect, superelasticity, and biocompatibility, making it invaluable in various industries such as medical devices, aerospace, and automotive applications.

Raw Material Selection and Preparation

Choosing High-Purity Nickel and Titanium

The production of nitinol ingot bars begins with the careful selection of raw materials. High-purity nickel and titanium are essential components, typically sourced from reputable suppliers. The purity of these elements is crucial, as even minor impurities can significantly affect the final properties of the nitinol alloy. Manufacturers often use nickel with a purity of 99.99% or higher and titanium with a purity of 99.95% or above. These high-grade materials ensure the consistency and reliability of the resulting nitinol ingot bars.

Precise Composition Control

Achieving the desired properties in nitinol ingot bars requires precise control over the alloy composition. The typical composition of nitinol consists of approximately 55% nickel and 45% titanium by weight, although slight variations can be made to tailor specific characteristics. Advanced weighing and measuring equipment is used to ensure the exact proportions of nickel and titanium are combined. This precision is critical, as even small deviations in composition can dramatically alter the transformation temperatures and mechanical properties of the final nitinol product.

Pre-melting Preparation

Before the melting process begins, the raw materials undergo thorough cleaning and preparation. This step involves removing any surface contaminants or oxides that could compromise the purity of the final alloy. The nickel and titanium are often cleaned using ultrasonic baths or chemical treatments to ensure a pristine surface. Additionally, the materials may be cut or formed into specific shapes to facilitate uniform melting and mixing during the subsequent stages of production. This meticulous preparation sets the foundation for high-quality nitinol ingot bars.

Melting and Casting Techniques

Vacuum Induction Melting (VIM)

Vacuum Induction Melting is a widely used technique in the production of nitinol ingot bars. This process involves melting the nickel and titanium in a vacuum environment using electromagnetic induction. The vacuum conditions prevent oxidation and contamination of the molten alloy, ensuring high purity. The induction heating allows for precise temperature control and uniform mixing of the constituent elements. As the materials melt, they form a homogeneous liquid that is then carefully poured into molds to create the initial ingot shape. VIM is particularly effective for producing large quantities of nitinol with consistent composition.

Vacuum Arc Remelting (VAR)

Another advanced method used in nitinol ingot bar production is Vacuum Arc Remelting. This technique involves using a consumable electrode made from the initial VIM ingot. The electrode is melted in a vacuum chamber using an electric arc, and the molten metal is collected in a water-cooled copper crucible. VAR offers several advantages, including further purification of the alloy, improved homogeneity, and reduction of any residual gases or inclusions. The resulting VAR ingots often exhibit superior mechanical properties and a more uniform microstructure compared to VIM ingots alone.

Solidification and Cooling

After the melting process, the molten nitinol undergoes controlled solidification and cooling. This stage is critical in determining the microstructure and properties of the nitinol ingot bar. Cooling rates are carefully managed to achieve the desired grain structure and phase distribution. Rapid cooling can result in finer grains, while slower cooling allows for more controlled growth of crystalline structures. Some manufacturers employ specialized techniques such as directional solidification to enhance specific properties of the nitinol ingot bar. The solidified ingot is then allowed to cool to room temperature under controlled conditions to prevent thermal stresses and ensure uniformity throughout the material.

Post-Casting Processing and Heat Treatment

Homogenization and Hot Working

Once the nitinol ingot bar has been cast and cooled, it undergoes a series of post-processing steps to refine its structure and properties. The first major step is homogenization, where the ingot is heated to high temperatures (typically around 900-1000°C) for an extended period. This process helps to eliminate any compositional inhomogeneities that may have formed during solidification. Following homogenization, the nitinol ingot bar is subjected to hot working processes such as forging or extrusion. These techniques help to break down the as-cast structure, improve the overall uniformity of the material, and begin shaping the ingot into more usable forms. Hot working is typically performed at temperatures above the recrystallization point of nitinol to ensure optimal workability and structural refinement.

Cold Working and Intermediate Annealing

After hot working, the nitinol ingot bar undergoes cold working processes to further refine its structure and impart specific mechanical properties. Cold working can include techniques such as drawing, rolling, or swaging, performed at temperatures below the recrystallization point. This step increases the strength and hardness of the material while reducing its ductility. However, excessive cold working can lead to work hardening and brittleness. To mitigate these effects and maintain workability, intermediate annealing steps are often employed. These annealing treatments involve heating the nitinol to specific temperatures to relieve internal stresses and partially restore ductility without fully recrystallizing the material. The combination of cold working and intermediate annealing allows for precise control over the final mechanical properties of the nitinol ingot bar.

Final Shape Memory Heat Treatment

The final and most critical step in the production of nitinol ingot bars is the shape memory heat treatment. This process is what imparts the unique shape memory and superelastic properties to the material. The heat treatment typically involves heating the nitinol to temperatures between 400-550°C for a specific duration, followed by rapid cooling. The exact temperature and time parameters are carefully determined based on the desired transformation temperatures and mechanical behavior of the final product. During this heat treatment, the crystal structure of the nitinol undergoes a phase transformation, aligning the atoms in a way that allows for the reversible shape memory effect. Some manufacturers may employ multiple heat treatment cycles or combine them with mechanical training to further enhance and stabilize the shape memory properties of the nitinol ingot bar.

Conclusion

The production of nitinol ingot bars is a complex and precise process that combines advanced metallurgical techniques with careful control at every stage. From raw material selection to final heat treatment, each step plays a crucial role in determining the unique properties of this remarkable alloy. The resulting nitinol ingot bars serve as the foundation for countless innovative applications across various industries, showcasing the power of smart materials in modern engineering and technology. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
