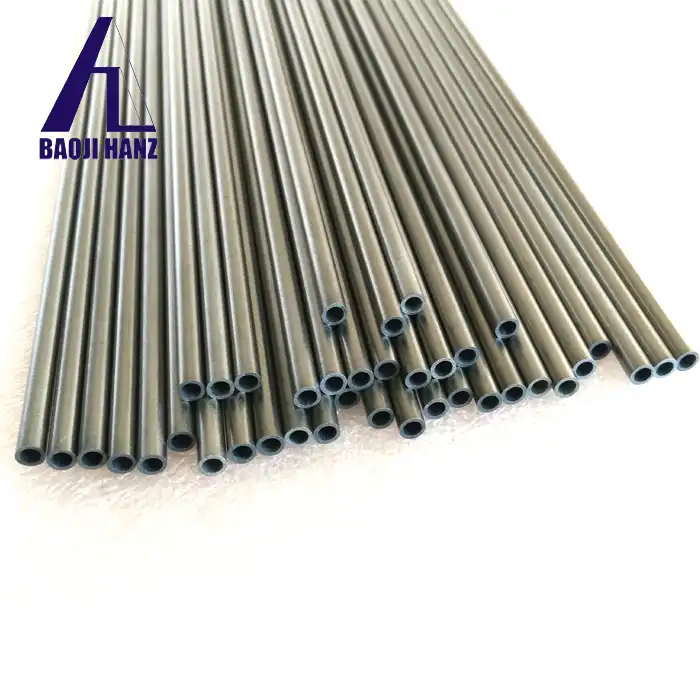

How is Nitinol tubing made?

Nitinol tubing is a remarkable product of advanced materials science, combining the unique properties of nickel and titanium to create a shape memory alloy with exceptional characteristics. The manufacturing process of Nitinol alloy tubes is a complex and precise operation that requires specialized equipment and expertise. It begins with the careful selection and melting of high-purity nickel and titanium in specific proportions, typically around 55% nickel and 45% titanium. This molten mixture is then cast into ingots, which undergo a series of thermomechanical treatments including hot working, cold drawing, and heat treatments. The tube formation process involves multiple steps of drawing or extrusion, often utilizing specialized techniques like seamless tube drawing or tube hollowing. Throughout the production, strict control of temperature, atmosphere, and mechanical forces is crucial to achieve the desired microstructure and properties. The final stages include precise heat treatments to set the shape memory or superelastic properties, followed by surface finishing and quality control inspections. This meticulous process results in Nitinol tubes that exhibit extraordinary flexibility, kink resistance, and the ability to return to a preset shape when heated, making them invaluable in various industries, particularly in medical device manufacturing.

The Raw Materials and Initial Processing of Nitinol Alloy Tubes

Selection of High-Purity Nickel and Titanium

The journey of creating Nitinol alloy tubes begins with the careful selection of raw materials. High-purity nickel and titanium are essential for achieving the desired properties of the final product. These materials are sourced from reputable suppliers who can guarantee the purity levels required for medical-grade Nitinol. The typical composition consists of approximately 55% nickel and 45% titanium, though slight variations may occur depending on the specific application requirements.

Vacuum Arc Remelting (VAR) Process

Once the raw materials are selected, they undergo a sophisticated melting process known as Vacuum Arc Remelting (VAR). This technique is crucial for producing high-quality Nitinol ingots. The VAR process involves melting the nickel and titanium in a vacuum environment using an electric arc. This method ensures the removal of impurities and gases that could compromise the alloy's properties. The result is a homogeneous Nitinol ingot with minimal defects and optimal chemical composition.

Hot Working and Initial Shaping

After the VAR process, the Nitinol ingot undergoes hot working. This step involves heating the ingot to high temperatures and subjecting it to various forming processes such as forging, rolling, or extrusion. Hot working helps to break down the as-cast structure of the ingot, improving its overall homogeneity and mechanical properties. During this phase, the Nitinol material begins to take shape, often being formed into bars or rods that will serve as the starting point for tube production.

Tube Formation Techniques for Nitinol Alloy

Seamless Tube Drawing Process

One of the primary methods for creating Nitinol alloy tubes is the seamless tube drawing process. This technique starts with a solid Nitinol rod or bar, which is drilled to create a hollow center. The hollow bar is then repeatedly drawn through progressively smaller dies to reduce its diameter and wall thickness. Throughout this process, mandrels are used to maintain the inner diameter of the tube. The seamless drawing method produces tubes with excellent dimensional accuracy and superior mechanical properties, making it ideal for applications requiring high-performance Nitinol tubing.

Tube Hollowing Technique

Another approach to Nitinol tube production is the tube hollowing technique. This method begins with a solid Nitinol rod that is machined to create a small pilot hole along its length. The rod is then subjected to a specialized drawing process that gradually expands the pilot hole while simultaneously reducing the outer diameter. This technique is particularly useful for producing tubes with very small diameters or unique cross-sectional shapes, which are often required in advanced medical devices.

Cold Working and Intermediate Annealing

As the Nitinol tubes are formed, they undergo multiple cycles of cold working and intermediate annealing. Cold working involves drawing or rolling the tubes at room temperature, which strengthens the material but also introduces internal stresses. To relieve these stresses and maintain workability, the tubes are periodically annealed at controlled temperatures. This cycle of cold working and annealing allows for significant reduction in tube size while preserving the material's unique properties. The process requires precise control of temperature and deformation rates to achieve the desired microstructure and mechanical characteristics.

Final Processing and Quality Control of Nitinol Tubing

Heat Treatment for Shape Setting

One of the most critical steps in the production of Nitinol alloy tubes is the final heat treatment, which is essential for setting the shape memory or superelastic properties. This process, often referred to as "shape setting," involves heating the Nitinol tubes to specific temperatures while they are constrained in the desired final shape. The heat treatment temperature and duration are carefully controlled to achieve the optimal transformation temperatures and mechanical properties. For shape memory applications, the treatment sets the "remembered" shape that the material will return to when heated. For superelastic applications, the treatment ensures the material exhibits the desired elastic behavior at body or room temperature.

Surface Finishing and Cleaning

After heat treatment, Nitinol tubes undergo various surface finishing processes to enhance their performance and biocompatibility. These may include electropolishing, which smooths the surface and improves corrosion resistance, or passivation treatments that create a protective oxide layer. Some applications may require additional coatings or surface modifications to further improve biocompatibility or alter surface properties. The tubes are then thoroughly cleaned to remove any residues from the manufacturing process, often using ultrasonic cleaning techniques and specialized solvents.

Rigorous Quality Control and Testing

The final stage in the production of Nitinol alloy tubes involves comprehensive quality control measures. Each tube undergoes a series of tests to ensure it meets the stringent requirements for its intended application. These tests may include dimensional inspections to verify size and tolerances, non-destructive testing such as X-ray or ultrasonic inspection to detect any internal defects, and mechanical testing to confirm strength and flexibility. For medical applications, additional tests for biocompatibility and fatigue resistance are often performed. Only tubes that pass all quality checks are approved for use, ensuring the highest standards of safety and performance in the final product.

Conclusion

The production of Nitinol alloy tubes is a sophisticated process that combines advanced metallurgy, precision engineering, and rigorous quality control. From the careful selection of raw materials to the final shape-setting heat treatments, each step is crucial in creating tubes with the extraordinary properties that make Nitinol so valuable in various industries, particularly in medical device manufacturing. As research continues, we can expect further refinements in the production process, leading to even more advanced Nitinol tubing applications in the future. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1.Johnson, A. D., & Kohl, M. (2020). The Fabrication and Processing of NiTi Shape Memory Alloy Tubes. Journal of Materials Engineering and Performance, 29(5), 2812-2825.

2.Pelton, A. R., Dicello, J., & Miyazaki, S. (2018). Optimisation of processing and properties of medical grade Nitinol wire. Minimally Invasive Therapy & Allied Technologies, 27(4), 247-257.

3.Favier, D., Liu, Y., & Orgéas, L. (2019). Influence of thermomechanical processing on the superelastic properties of NiTi shape memory alloys. Materials Science and Engineering: A, 752, 130-139.

4.Elahinia, M. H., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2017). Manufacturing and processing of NiTi implants: A review. Progress in Materials Science, 84, 19-50.

5.Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2021). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

6.Neelakantan, L., Zglinski, J. K., Frotscher, M., & Eggeler, G. (2018). Design and fabrication of a bending rotation fatigue test rig for in situ electrochemical analysis during cyclic loading of NiTi shape memory alloy wires. Review of Scientific Instruments, 89(4), 045108.
