How is nitinol wire made for medical use?

The Foundation of Nitinol Wire Production

Raw Material Selection and Preparation

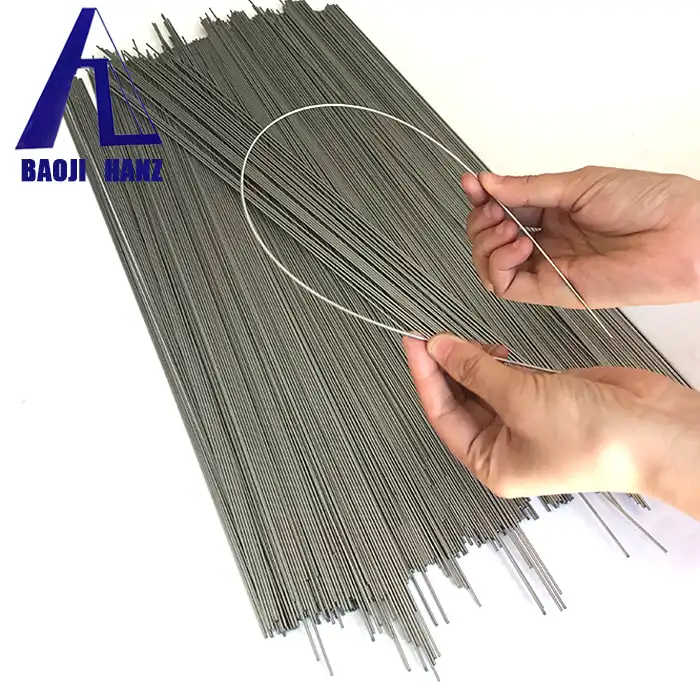

The journey of nitinol medical straight wire begins with the careful selection of raw materials. High-purity nickel and titanium are the primary components, typically mixed in a near-equiatomic ratio. The quality of these base metals is paramount, as even minute impurities can significantly affect the final product's properties. Manufacturers employ sophisticated purification techniques to ensure the metals meet the stringent standards required for medical-grade nitinol.

Once the raw materials are prepared, they undergo a melting process. This step is crucial in achieving the desired composition and homogeneity of the alloy. Vacuum induction melting is a common method used, as it allows for precise control over the melting environment, minimizing the risk of contamination and ensuring a uniform mixture of nickel and titanium.

Ingot Formation and Initial Processing

After melting, the molten nitinol is cast into ingots. These ingots serve as the starting point for further processing. The cooling rate during this stage is carefully controlled, as it influences the alloy's microstructure and, consequently, its properties. Once solidified, the ingots undergo a series of thermal and mechanical treatments to refine their structure and prepare them for wire drawing.

Hot working is typically the next step, where the ingot is shaped into a more manageable form, such as a rod or bar. This process not only gives the material its initial shape but also helps to break down any large grain structures that may have formed during solidification, improving the overall uniformity of the alloy.

Wire Drawing and Heat Treatment

The transformation from a rod or bar to a fine wire is achieved through a process called wire drawing. This involves pulling the material through a series of progressively smaller dies, reducing its diameter and increasing its length. The wire drawing process is a delicate balance of deformation and intermediate annealing steps to prevent work hardening and maintain the desired properties of the nitinol.

Heat treatment plays a crucial role in imparting the shape memory and superelastic properties that make nitinol so valuable in medical applications. Precise temperature control and timing during these treatments are essential to achieve the desired crystal structure and transformation temperatures. The specific heat treatment protocol can vary depending on the intended application of the wire, allowing manufacturers to tailor the material's properties to meet specific medical requirements.

Advanced Manufacturing Techniques for Medical-Grade Nitinol Wire

Precision Control and Monitoring

The production of nitinol medical straight wire demands an exceptional level of precision and control throughout the manufacturing process. Advanced monitoring systems are employed to track variables such as temperature, strain, and composition at every stage. This meticulous oversight ensures consistency and quality, which are paramount in medical applications where the performance of the wire can directly impact patient outcomes.

Manufacturers utilize state-of-the-art equipment, including electron microscopes and X-ray diffraction systems, to analyze the microstructure and phase composition of the nitinol wire. This level of scrutiny allows for real-time adjustments to the production process, ensuring that each batch of wire meets the exacting standards required for medical use.

Surface Treatment and Finishing

The surface quality of nitinol medical straight wire is crucial for its performance and biocompatibility. Various surface treatments are applied to enhance these properties. Electropolishing is a common technique used to remove impurities and create a smooth, oxide-free surface. This process not only improves the wire's resistance to corrosion but also enhances its fatigue life, a critical factor in many medical applications.

In some cases, additional coatings may be applied to the nitinol wire to further improve its properties. These can include biocompatible polymers or drug-eluting coatings, depending on the specific medical application. The coating process must be carefully controlled to ensure uniform coverage without compromising the wire's mechanical properties.

Quality Assurance and Testing

Rigorous quality assurance protocols are an integral part of nitinol medical wire production. Each batch of wire undergoes extensive testing to verify its mechanical properties, transformation temperatures, and biocompatibility. Tensile testing, differential scanning calorimetry, and cyclic fatigue tests are just a few of the methods employed to ensure the wire meets or exceeds industry standards.

Biocompatibility testing is particularly crucial for medical-grade nitinol wire. This involves assessing the material's interaction with biological systems to ensure it does not cause adverse reactions when used in medical devices. Cytotoxicity, sensitization, and irritation tests are conducted following stringent regulatory guidelines to validate the safety of the nitinol wire for medical use.

Innovations and Future Directions in Nitinol Wire Manufacturing

Nanotechnology Integration

The frontier of nitinol wire manufacturing is being pushed forward by the integration of nanotechnology. Researchers are exploring ways to manipulate the alloy's structure at the nanoscale to enhance its properties further. This includes developing nanostructured surfaces that can improve biocompatibility or incorporating nanoparticles within the alloy to create novel functionalities.

One promising area of research involves the creation of nanoporous nitinol structures. These structures could potentially be used for drug delivery applications, where the porous nature of the material allows for controlled release of therapeutic agents. The challenge lies in maintaining the mechanical integrity of the wire while introducing these nanoscale features, a balance that researchers are working diligently to achieve.

Additive Manufacturing Approaches

Additive manufacturing, or 3D printing, is opening new possibilities in the production of nitinol medical devices. While not yet widely used for wire production, this technology is being explored for creating complex nitinol structures that were previously difficult or impossible to manufacture using traditional methods. The ability to precisely control the composition and structure of the material layer by layer could lead to nitinol wires with unprecedented customization and functionality.

Researchers are also investigating the potential of combining additive manufacturing with post-processing techniques to create nitinol wires with gradient properties. This could result in wires that exhibit different characteristics along their length, tailored to specific medical applications. While still in the experimental stage, these advancements hold great promise for the future of nitinol wire manufacturing.

Sustainable Production Methods

As environmental concerns become increasingly prevalent, the nitinol industry is exploring more sustainable production methods. This includes developing recycling techniques for nitinol scrap and optimizing manufacturing processes to reduce energy consumption and waste. Some manufacturers are investigating the use of renewable energy sources in their production facilities, aiming to minimize the carbon footprint of nitinol wire manufacturing.

Another area of focus is the development of more efficient melting and purification techniques. Advanced vacuum melting systems and electron beam melting are being explored as ways to improve the quality of the initial ingot while reducing material waste. These sustainable practices not only benefit the environment but also have the potential to reduce production costs and improve the overall efficiency of nitinol wire manufacturing.

Conclusion

The production of nitinol medical straight wire is a complex and sophisticated process that combines metallurgical expertise with cutting-edge technology. From raw material selection to advanced surface treatments, each step is crucial in creating a product that meets the exacting standards of the medical industry. As research continues and new technologies emerge, the future of nitinol wire manufacturing promises even greater innovations, paving the way for revolutionary medical devices and treatments. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
