How is nitinol wire manufactured and processed?

The Fundamentals of Nitinol Wire Production

Raw Material Selection and Preparation

The journey of shape memory nitinol wire begins with the meticulous selection of raw materials. High-purity nickel and titanium are the primary components, typically combined in a near-equiatomic ratio. The purity of these elements is paramount, as even minute impurities can significantly alter the wire's final properties. Manufacturers often employ vacuum arc remelting (VAR) or vacuum induction melting (VIM) techniques to ensure the highest level of purity. These processes help eliminate unwanted gases and contaminants, resulting in a homogeneous alloy composition.

Melting and Alloying Process

Once the raw materials are prepared, they undergo a sophisticated melting process. The nickel and titanium are combined in precise proportions within a vacuum or inert gas environment to prevent oxidation. The melting typically occurs in a crucible made of graphite or ceramic materials that can withstand the extreme temperatures required, often exceeding 1300°C. During this stage, the elements are thoroughly mixed to create a uniform alloy. Some manufacturers employ multiple remelting cycles to enhance homogeneity further. The molten alloy is then carefully cooled to form an ingot, which serves as the starting point for subsequent processing steps.

Initial Forming and Shaping

The solidified nitinol ingot then undergoes initial forming processes to create a more manageable shape for wire production. This often involves hot working techniques such as forging or extrusion. The ingot is heated to temperatures around 800-900°C, where it becomes more malleable. It's then subjected to high pressures to reshape it into a rod or bar form. This step not only gives the material its preliminary shape but also helps break down the as-cast structure, improving its overall mechanical properties. The hot-worked material is then allowed to cool slowly, preparing it for the next stages of processing.

Advanced Processing Techniques for Nitinol Wire

Cold Drawing and Intermediate Annealing

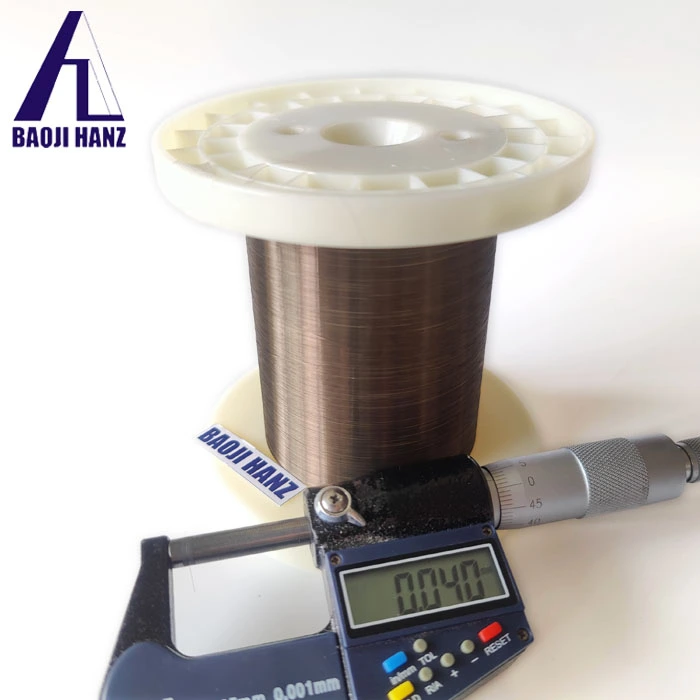

The transformation from a rod or bar to a fine wire involves a series of cold drawing operations. In this process, the nitinol is pulled through progressively smaller dies, reducing its diameter and increasing its length. This cold working significantly alters the material's microstructure, enhancing its strength but also increasing its brittleness. To counteract this and maintain workability, intermediate annealing steps are crucial. The wire is periodically heated to temperatures around 600-800°C, which relieves internal stresses and partially restores ductility. This cycle of drawing and annealing continues until the desired wire diameter is achieved, with some high-precision applications requiring wires as thin as 0.1 mm or less.

Surface Treatment and Cleaning

As the shape memory nitinol wire nears its final dimensions, surface quality becomes a critical factor. The wire undergoes rigorous cleaning processes to remove any oxides or contaminants that may have formed during previous steps. This often involves chemical etching or electropolishing techniques. These processes not only improve the wire's appearance but also enhance its corrosion resistance and biocompatibility, crucial factors for medical and aerospace applications. Some manufacturers may also apply specialized coatings to further modify the wire's surface properties, tailoring them for specific end-use requirements.

Final Heat Treatment and Shape Setting

The culminating stage in nitinol wire processing is the final heat treatment, which imparts the characteristic shape memory and superelastic properties. This process, often called "shape setting," involves fixing the wire in its desired final shape and then subjecting it to carefully controlled heating and cooling cycles. The wire is typically heated to temperatures between 400-550°C for a specified duration, followed by rapid cooling. This heat treatment alters the crystal structure of the alloy, creating the unique phase transformations responsible for its shape memory behavior. The precise temperature, duration, and cooling rate are meticulously controlled, as they directly influence the wire's transformation temperatures and mechanical properties.

Quality Control and Specialized Applications

Testing and Characterization

Rigorous quality control measures are integral to nitinol wire production. Manufacturers employ a battery of tests to verify the wire's properties and performance. Differential scanning calorimetry (DSC) is commonly used to determine the precise transformation temperatures. Tensile testing assesses the wire's strength and superelastic behavior, while fatigue testing ensures long-term reliability. Advanced microscopy techniques, such as scanning electron microscopy (SEM), allow for detailed examination of the wire's microstructure. For medical applications, additional biocompatibility and corrosion resistance tests are conducted to ensure compliance with stringent regulatory standards.

Customization for Specific Industries

The versatility of shape memory nitinol wire allows for customization to meet the unique demands of various industries. In the medical field, ultra-fine wires with precise transformation temperatures are crafted for minimally invasive surgical instruments and implantable devices. Aerospace applications might require wires with exceptional fatigue resistance and thermal stability. The automotive industry utilizes nitinol wires in actuators and sensors, demanding specific force output and response times. Manufacturers work closely with end-users to tailor the wire's composition, dimensions, and properties, often developing proprietary processing techniques to achieve the desired characteristics.

Emerging Trends and Future Prospects

The field of nitinol wire manufacturing continues to evolve, driven by technological advancements and expanding applications. Recent trends include the development of high-fatigue-life alloys for demanding cyclic applications and ultra-thin wires for microelectromechanical systems (MEMS). Research into ternary and quaternary nitinol alloys aims to expand the material's property range and functionality. Additive manufacturing techniques are also being explored for creating complex nitinol structures directly from powdered alloys. As our understanding of shape memory alloys deepens, we can anticipate even more sophisticated processing methods and novel applications for this extraordinary material in the coming years.

Conclusion

The manufacturing and processing of shape memory nitinol wire is a complex, multifaceted endeavor that combines metallurgical expertise with cutting-edge technology. From raw material selection to final heat treatment, each step plays a crucial role in creating a wire with extraordinary properties. As research continues and applications expand, the future of nitinol wire production promises even greater innovations and capabilities. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
