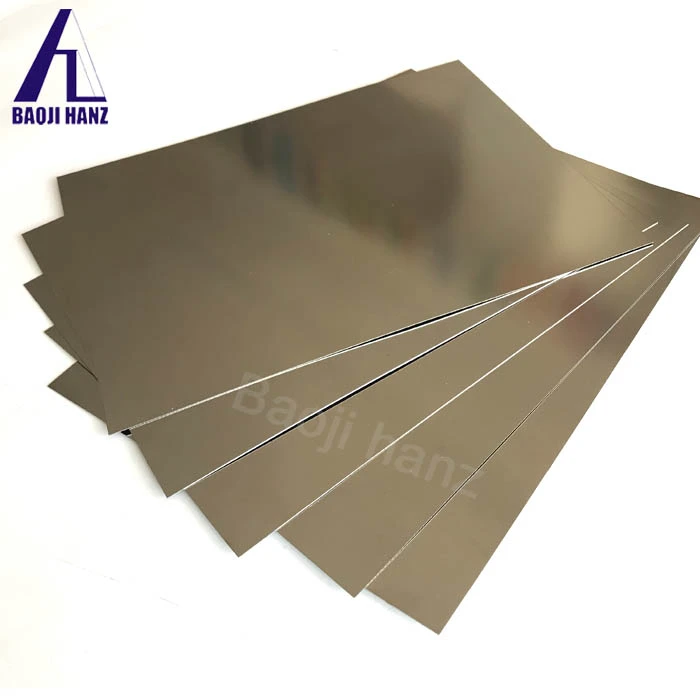

How is super elastic nitinol foil manufactured?

Raw Material Selection and Preparation

Sourcing High-Purity Nickel and Titanium

The journey of manufacturing super elastic nitinol foil begins with the careful selection of raw materials. High-purity nickel and titanium are essential components for creating this advanced alloy. Manufacturers source these metals from reputable suppliers, ensuring that they meet strict quality standards. The purity of the raw materials directly impacts the final properties of the nitinol foil, making this step crucial for achieving optimal performance.

Precise Weighing and Mixing

Once the raw materials are procured, they undergo a meticulous weighing process. The exact ratio of nickel to titanium is critical in determining the alloy's properties. Typically, the composition consists of approximately 55-56% nickel and 44-45% titanium by weight. Advanced weighing equipment is used to ensure accuracy down to the smallest fraction, as even minor deviations can significantly affect the final product's characteristics.

Vacuum Arc Remelting (VAR)

To achieve the highest level of purity and homogeneity, the weighed raw materials are subjected to Vacuum Arc Remelting (VAR). This sophisticated process involves melting the metals in a vacuum environment using an electric arc. The VAR technique eliminates impurities and ensures a uniform composition throughout the alloy. Multiple remelting cycles may be performed to further enhance the material's quality and consistency.

Alloy Formation and Initial Processing

Ingot Casting

After the VAR process, the molten nitinol alloy is carefully poured into molds to form ingots. These ingots serve as the starting point for further processing. The casting process is conducted under controlled conditions to prevent contamination and ensure uniform cooling. The resulting ingots are typically cylindrical in shape, with dimensions suitable for subsequent processing steps.

Hot Working

The super elastic nitinol foil then undergo hot working, a process that involves shaping the material at elevated temperatures. This step is crucial for breaking down the as-cast structure and improving the alloy's mechanical properties. Hot working techniques such as forging or extrusion are employed to reduce the ingot's cross-sectional area and create a more refined grain structure. The temperature and deformation parameters are carefully controlled to achieve the desired microstructure.

Cold Working and Intermediate Annealing

Following hot working, the nitinol material is subjected to a series of cold working and intermediate annealing steps. Cold working, typically performed through rolling or drawing, further reduces the material's thickness and enhances its strength. Intermediate annealing treatments are interspersed between cold working stages to relieve internal stresses and maintain the alloy's workability. This cyclical process allows manufacturers to gradually approach the desired foil thickness while optimizing the material's properties.

Final Processing and Quality Control

Precision Rolling

To achieve the ultra-thin dimensions characteristic of super elastic nitinol foil, precision rolling techniques are employed. Advanced rolling mills with tight tolerances are used to reduce the material to its final thickness, which can be as thin as a few micrometers. The rolling process is carefully controlled to ensure uniform thickness across the entire width of the foil. Multiple passes through the rolling mill may be required to reach the target dimensions while maintaining the desired surface finish.

Heat Treatment

Heat treatment is a critical step in the manufacturing process of the product. This procedure involves carefully heating the material to specific temperatures and then cooling it under controlled conditions. The heat treatment parameters are tailored to impart the desired superelastic properties to the foil. By manipulating the crystal structure of the alloy, manufacturers can fine-tune its transformation temperatures and mechanical behavior. Precise temperature control and timing are essential to achieve consistent results.

Surface Finishing and Quality Inspection

The final stages of manufacturing it involve surface finishing and rigorous quality control measures. Surface treatments such as chemical etching or electropolishing may be applied to improve the foil's surface characteristics and remove any oxide layers. Advanced inspection techniques, including optical microscopy, X-ray diffraction, and mechanical testing, are employed to verify the foil's properties and ensure compliance with specifications. Each batch of foil undergoes thorough examination to guarantee its performance and reliability.

Conclusion

The manufacture of super elastic nitinol foil is a sophisticated process that combines metallurgical expertise with cutting-edge technology. From raw material selection to final quality control, each step is meticulously executed to produce a material with exceptional properties. As demand for this innovative alloy continues to grow across various industries, manufacturers like Baoji Hanz Metal Material Co., Ltd. remain at the forefront of advancing production techniques and expanding applications for it. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
