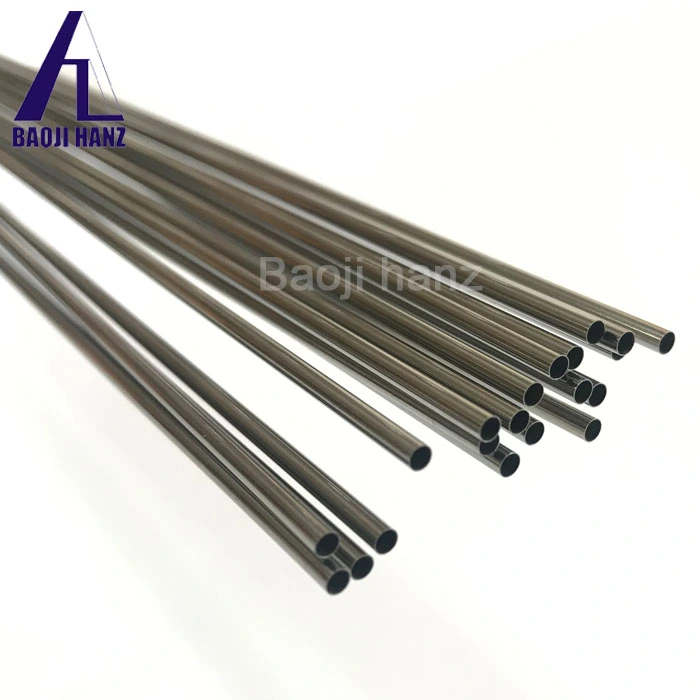

How is super elastic nitinol tubing manufactured?

Super elastic nitinol tubing has revolutionized various industries due to its unique properties and versatile applications. This remarkable material, composed of nickel and titanium, exhibits extraordinary elasticity and shape memory characteristics. In this comprehensive guide, we'll delve into the intricate manufacturing process of super elastic nitinol tubes, exploring the cutting-edge techniques and sophisticated equipment employed to create these advanced components. From raw material selection to final quality control measures, we'll uncover the complexities involved in producing these high-performance tubes that have found their way into medical devices, aerospace applications, and beyond.

Raw Material Preparation and Alloy Composition

Selecting High-Purity Nickel and Titanium

The journey of manufacturing super elastic nitinol tubing begins with the careful selection of raw materials. High-purity nickel and titanium are essential for achieving the desired properties of the final product. These elements are typically sourced from reputable suppliers who can guarantee the quality and consistency of the materials. The purity levels of both nickel and titanium are crucial, as even small impurities can significantly affect the performance of the resulting nitinol alloy.

Precise Alloy Formulation

Once the raw materials are secured, the next step involves creating the precise alloy formulation. The composition of nitinol typically consists of approximately 55-56% nickel and 44-45% titanium by weight. However, slight variations in this ratio can lead to significant changes in the alloy's properties. Metallurgists and materials scientists work diligently to fine-tune the composition, taking into account factors such as desired transformation temperatures, superelastic behavior, and biocompatibility for medical applications.

Melting and Homogenization

The carefully measured nickel and titanium are then melted together in a vacuum or inert gas environment to prevent oxidation and maintain purity. Advanced melting techniques, such as vacuum induction melting or vacuum arc remelting, are employed to ensure a homogeneous mixture. The super elastic nitinol tube is then cast into ingots or billets, which serve as the starting material for further processing. Homogenization heat treatments may be applied to these ingots to enhance the uniformity of the alloy's composition throughout its structure.

Primary Shaping and Tube Formation

Hot Working and Extrusion

The nitinol ingots undergo a series of hot working processes to break down their as-cast structure and improve their mechanical properties. This typically involves techniques such as forging or rolling at elevated temperatures. The hot-worked material is then subjected to extrusion, where it is forced through a die to create a cylindrical shape. This process helps to refine the grain structure and begin the formation of the tubular geometry.

Cold Drawing and Intermediate Annealing

Following extrusion, the nitinol is subjected to multiple stages of cold drawing. This process involves pulling the material through progressively smaller dies to reduce its diameter and increase its length. Cold drawing not only shapes the tube but also work-hardens the material, enhancing its strength. Between drawing passes, intermediate annealing steps are performed to relieve internal stresses and maintain the material's ductility. This cyclic process of drawing and annealing continues until the desired tube dimensions are achieved.

Mandrel Drawing for Precision

To achieve the high precision required for super elastic nitinol tubing, mandrel drawing is often employed in the later stages of super elastic nitinol tube. This technique involves drawing the tube over a fixed mandrel, which helps control the inner diameter with exceptional accuracy. The mandrel also supports the tube during drawing, preventing collapse and ensuring uniform wall thickness. Multiple passes of mandrel drawing may be necessary to achieve the final dimensions and tolerances specified for the tubing.

Heat Treatment and Surface Finishing

Shape Setting and Memory Imparting

One of the most critical steps in manufacturing super elastic nitinol tubing is the heat treatment process, which imparts the desired shape memory and superelastic properties. The tubes are carefully fixtured to maintain their intended shape and then subjected to precise heat treatment cycles. This process, often referred to as "shape setting," involves heating the nitinol to temperatures typically ranging from 450°C to 550°C for a specific duration. The exact parameters depend on the desired transformation temperatures and mechanical characteristics of the final super elastic nitinol tube.

Surface Treatment and Passivation

After heat treatment, the nitinol tubes undergo surface treatment processes to enhance their performance and biocompatibility. Chemical etching may be employed to remove any residual surface oxides or contaminants. This is followed by passivation, a process that creates a thin, protective oxide layer on the surface of the nitinol. Passivation not only improves corrosion resistance but also contributes to the biocompatibility of the material, which is crucial for medical applications.

Final Dimensional Control and Polishing

To meet the stringent requirements of various applications, nitinol tubes often undergo final dimensional control processes. This may involve centerless grinding to achieve extremely tight tolerances on the outer diameter. For applications requiring a smooth inner surface, honing or electro-polishing techniques may be employed. These processes not only refine the dimensions but also improve the surface finish, reducing friction and enhancing the overall performance of the tubing.

Conclusion

The manufacture of super elastic nitinol tube is a complex process that combines metallurgical expertise with advanced manufacturing techniques. From careful alloy formulation to precise heat treatments, each step plays a crucial role in creating tubes with exceptional properties. As technology advances, the production of these remarkable components continues to evolve, opening new possibilities across various industries.If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
