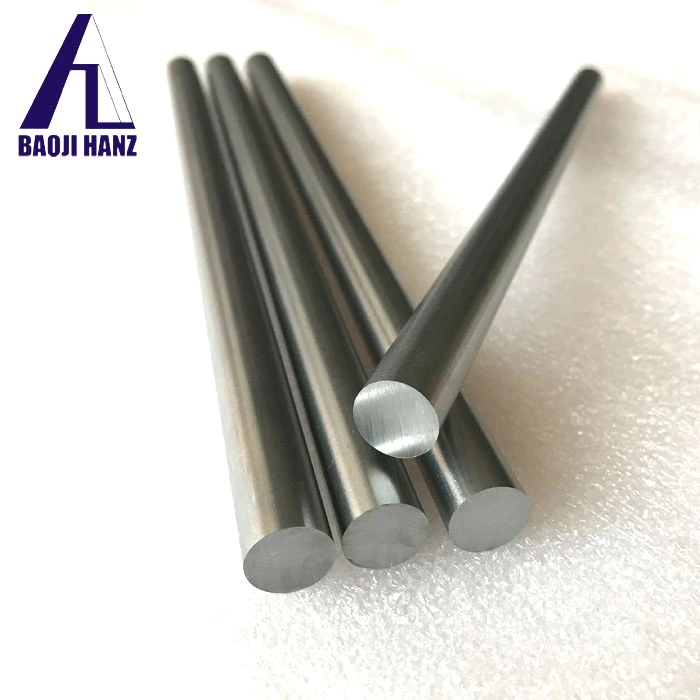

What are tensile Nitinol ingots made of?

Tensile Nitinol ingots are a fascinating material in the world of shape memory alloys. These ingots are composed of a unique blend of nickel and titanium, carefully formulated to exhibit exceptional tensile properties. In this blog, we'll delve into the composition, manufacturing process, and applications of tensile Nitinol ingots. We'll explore how their unique atomic structure contributes to their remarkable tensile strength and superelastic behavior. Additionally, we'll examine the various factors that influence the performance of these ingots and how they're utilized in diverse industries, from medical devices to aerospace engineering.

Composition and Structure of Tensile Nitinol Ingots

Chemical Composition of Nitinol

Tensile Nitinol ingots are primarily composed of nickel and titanium in a near-equiatomic ratio. The typical composition consists of approximately 55% nickel and 45% titanium by weight. This specific ratio is crucial for achieving the desired shape memory and superelastic properties. The exact percentages can be fine-tuned to optimize particular characteristics for specific applications. Trace elements such as copper, iron, or chromium may also be added in small quantities to modify the alloy's behavior. The unique properties of tensile Nitinol ingots stem from this precise composition. The intermetallic compound formed by nickel and titanium creates a crystal structure that can undergo reversible phase transformations. This atomic-level phenomenon is the key to Nitinol's remarkable ability to return to its original shape after deformation, making it an invaluable material in various industries.

Crystal Structure and Phase Transformations

The crystal structure of Nitinol is at the heart of its exceptional tensile properties. At higher temperatures, Nitinol exists in an austenite phase, characterized by a cubic crystal structure. When cooled or subjected to stress, it transforms into a martensite phase with a monoclinic crystal structure. This phase transformation occurs without diffusion, allowing for rapid and reversible changes in the material's shape and properties. The ability of tensile Nitinol ingots to switch between these phases gives rise to two primary behaviors: shape memory effect and superelasticity. The shape memory effect allows the material to return to its original shape when heated above its transformation temperature. Superelasticity, on the other hand, enables the material to undergo large deformations and return to its original shape upon removal of stress, even at constant temperature.

Microstructure and Grain Boundaries

The microstructure of tensile Nitinol ingots plays a crucial role in determining their mechanical properties. The size, orientation, and distribution of grains within the material significantly influence its strength, ductility, and fatigue resistance. Controlled processing techniques are employed during the manufacturing of these ingots to achieve an optimal microstructure. Grain boundaries in Nitinol act as barriers to dislocation movement, contributing to the material's strength. However, they can also serve as potential sites for crack initiation and propagation. Therefore, a balance must be struck between grain size and distribution to achieve the desired combination of strength and toughness in tensile Nitinol ingots.

Manufacturing Process of Tensile Nitinol Ingots

Raw Material Preparation

The first step in the manufacturing of tensile Nitinol ingots involves the careful selection and preparation of raw materials, typically high-purity nickel and titanium. These materials are sourced in forms such as pellets, rods, or wire and must undergo thorough cleaning and inspection to eliminate any contaminants that could impact the alloy’s quality. The materials are then precisely weighed according to the desired alloy composition, ensuring the correct ratio of nickel to titanium. Any additional elements, such as trace elements or specific additives, are also carefully incorporated to achieve the desired material properties.

Melting and Casting Techniques

Nitinol’s manufacturing requires specialized melting techniques to prevent oxidation due to titanium’s high reactivity. Vacuum induction melting (VIM) is commonly used, as it creates a controlled environment by using a vacuum or inert gas to protect the materials from atmospheric contamination. Once the raw materials are melted, the Nitinol alloy is cast into ingot form. The choice of casting method—whether conventional ingot casting, continuous casting, or skull melting—depends on the desired shape and size of the ingot. Each method influences the final microstructure, and the selection of casting technique is critical in ensuring the material’s desired properties.

Heat Treatment and Thermomechanical Processing

After casting, tensile Nitinol ingots undergo a series of heat treatments and thermomechanical processes designed to optimize their microstructure and mechanical properties. Heat treatment typically involves solution annealing, followed by controlled cooling, which helps achieve the desired transformation temperatures and homogenizes the alloy’s microstructure. Further aging treatments can precipitate Ni-rich phases, fine-tuning the material’s characteristics. Thermomechanical processes such as forging, rolling, or extrusion are then employed to shape the ingots and enhance their strength, ductility, and superelastic properties. These processes are key to achieving the required tensile properties for a wide range of applications.

Applications and Properties of Tensile Nitinol Ingots

Medical Applications

Tensile Nitinol ingots have found extensive use in the medical field due to their biocompatibility and unique mechanical properties. In cardiovascular applications, Nitinol stents are widely used to treat blocked arteries. These stents can be compressed into a small diameter for insertion and then expand to their original shape once in place, providing a perfect fit within the blood vessel. Orthodontic archwires made from tensile Nitinol ingots offer constant, gentle forces for tooth movement, reducing patient discomfort and treatment time. In minimally invasive surgery, Nitinol instruments can be designed to navigate through complex anatomical structures, changing shape as needed. The material's superelasticity also makes it ideal for bone staples and orthopedic implants, allowing for secure fixation while accommodating natural bone movement.

Aerospace and Automotive Industries

The aerospace industry has embraced tensile Nitinol ingots for their potential in creating adaptive structures and smart materials. Nitinol-based actuators can be used in aircraft control surfaces, allowing for precise shape changes during flight to optimize aerodynamic performance. The material's high fatigue resistance and ability to withstand extreme temperatures make it suitable for various aerospace components. In the automotive sector, Nitinol is explored for applications in energy-absorbing structures, such as bumpers and crash-absorbing elements. The material's superelasticity allows it to absorb impact energy and return to its original shape, enhancing vehicle safety. Nitinol actuators are also being developed for various automotive systems, including engine valves and adaptive aerodynamic elements.

Consumer Electronics and Robotics

The unique properties of tensile Nitinol ingots have opened up exciting possibilities in consumer electronics and robotics. In smartphones and tablets, Nitinol components can be used in haptic feedback systems, providing users with tactile sensations. The material's shape memory effect is also utilized in thermal management systems for electronic devices, helping to regulate temperature and improve performance. In robotics, tensile Nitinol ingots are employed to create flexible and adaptive structures. Nitinol-based actuators can mimic natural movements, enabling the development of more lifelike and efficient robotic systems. The material's ability to change shape in response to electrical stimuli makes it valuable in creating soft robotics and adaptive gripping mechanisms.

Conclusion

Tensile Nitinol ingots represent a remarkable advancement in material science, offering a unique combination of strength, flexibility, and shape memory properties. Their composition of nickel and titanium, carefully manufactured and processed, results in a material that can revolutionize various industries. From medical devices to aerospace applications, the versatility of tensile Nitinol ingots continues to inspire new innovations and solutions to complex engineering challenges. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1. Otsuka, K., & Ren, X. (2005). Physical metallurgy of Ti–Ni-based shape memory alloys. Progress in Materials Science, 50(5), 511-678.

2. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical uses of nitinol. Materials Science Forum, 327, 63-70.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

4. Elahinia, M. H., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2012). Manufacturing and processing of NiTi implants: A review. Progress in Materials Science, 57(5), 911-946.

5. Lagoudas, D. C. (Ed.). (2008). Shape memory alloys: modeling and engineering applications. Springer Science & Business Media.

6. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: a review. Materials & Design, 33, 577-640.
