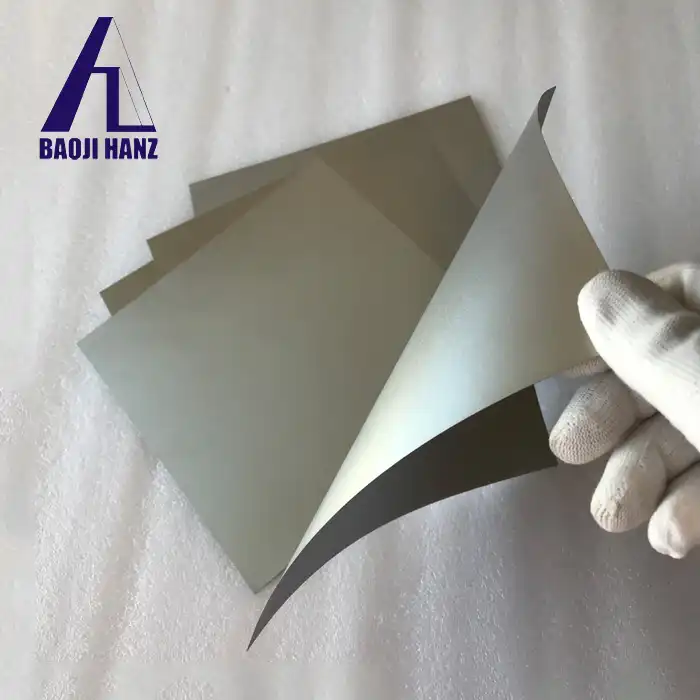

What are the challenges in machining Nitinol sheets?

Nickel titanium shape alloy sheets presents unique challenges due to its superelasticity and shape memory properties. These characteristics, while valuable, contribute to issues like rapid tool wear, work hardening, burr formation, and maintaining dimensional accuracy. Nitinol's high elasticity causes it to spring back after cutting, making precise tolerances difficult. Its low thermal conductivity leads to heat concentration at the cutting zone, complicating machining. Additionally, a hard, abrasive oxide layer may form during processing. Overcoming these challenges requires specialized knowledge, advanced tooling, and optimized machining parameters to maintain the material's properties.

Material Properties and Their Impact on Machining

Superelasticity and Its Effects

The superelastic nature of Nitinol alloys poses significant challenges in machining operations. This unique property allows the material to undergo large deformations and return to its original shape upon unloading. While beneficial in many applications, superelasticity complicates cutting processes by causing the material to spring back after machining. This elastic recovery can lead to dimensional inaccuracies and make it difficult to achieve tight tolerances. Manufacturers must account for this behavior by employing specialized cutting strategies and tool geometries to minimize the effects of elastic recovery during machining.

Work Hardening Characteristics

Nitinol exhibits pronounced work hardening tendencies during machining. As the material is cut or deformed, its hardness and strength increase rapidly, making subsequent cuts more challenging. This phenomenon can lead to accelerated tool wear and reduced surface quality if not properly managed. To mitigate the effects of work hardening, machinists often employ interrupted cutting techniques, vary cutting speeds and feeds, and use tools with specific coatings designed to withstand the increasing hardness of the workpiece.

Thermal Conductivity Challenges

The low thermal conductivity of nickel titanium shape alloy sheets presents another significant hurdle in machining operations. Unlike many other metals, Nitinol does not effectively dissipate heat generated during cutting. This characteristic results in localized heat buildup at the cutting interface, which can cause rapid tool wear, thermal damage to the workpiece, and dimensional instability. To address this issue, manufacturers often implement advanced cooling strategies, such as cryogenic cooling or high-pressure coolant delivery systems, to manage heat generation and maintain machining efficiency.

Tooling and Equipment Considerations

Specialized Cutting Tools

Machining Nitinol sheets requires specialized cutting tools due to the material's unique properties. High-speed steel (HSS) tools are unsuitable because of rapid wear, so manufacturers use carbide tools with specific geometries and coatings optimized for nickel titanium alloys. For high-precision applications, advanced tools like polycrystalline diamond (PCD) or cubic boron nitride (CBN) may be used. These tools provide superior wear resistance and maintain sharp edges longer, essential for handling Nitinol's abrasive nature.

Machine Tool Requirements

The challenges of machining Nitinol sheets extend to the machine tools used in the process. High-rigidity machine tools are essential to minimize deflection and vibration during cutting operations. This is particularly important given the material's tendency to work harden and its elastic properties. Computer Numerical Control (CNC) machines with advanced control systems are often preferred, as they allow for precise control of cutting parameters and tool paths. Additionally, machines equipped with high-pressure coolant systems or cryogenic cooling capabilities can help manage the heat generation issues associated with nickel titanium shape alloy sheet.

Fixturing and Workholding Strategies

Proper fixturing and workholding are crucial when machining Nitinol sheets due to its superelastic properties, which can cause unexpected movement or deformation if not securely held. Manufacturers often use specialized clamping systems or vacuum tables to ensure stable holding throughout the process. In some cases, custom fixtures are designed to accommodate the workpiece's unique characteristics and specific machining operations. Effective workholding is key to maintaining dimensional accuracy and preventing distortion.

Process Optimization and Best Practices

Cutting Parameters Optimization

Optimizing cutting parameters is crucial for successful machining of Nitinol sheets. This involves carefully balancing cutting speeds, feed rates, and depth of cut to minimize tool wear and maintain good surface finish. Generally, lower cutting speeds and higher feed rates are recommended compared to conventional metals. However, these parameters must be fine-tuned based on the specific grade of Nitinol being machined and the desired outcome. Experimental approaches or advanced modeling techniques may be employed to determine the optimal cutting conditions for a given application.

Cooling and Lubrication Strategies

Effective cooling and lubrication are essential when machining Nitinol sheets. Due to the material's low thermal conductivity, heat buildup at the cutting interface can be severe. Advanced cooling methods such as through-tool coolant delivery, minimum quantity lubrication (MQL), or cryogenic cooling with liquid nitrogen may be implemented to manage heat generation. These strategies not only help to extend tool life but also contribute to maintaining the material's properties and dimensional stability during machining. The choice of coolant or lubricant must be carefully considered to avoid any adverse reactions with the nickel titanium shape alloy sheet.

Surface Treatment and Finish Considerations

Achieving the desired surface finish on Nitinol sheets is challenging due to its work hardening and elastic properties. Post-machining treatments, such as electropolishing, are often used to remove the work-hardened layer and improve finish. Other methods like abrasive flow machining or precision grinding may be employed for high-precision applications. However, post-machining treatments must be carefully controlled to prevent altering critical properties, such as transformation temperatures or superelastic behavior.

Conclusion

Machining Nitinol sheets presents a complex set of challenges that require specialized knowledge, advanced tooling, and optimized processes. By understanding the material's unique properties and implementing appropriate strategies, manufacturers can successfully work with this remarkable alloy. Continuous research and development in machining techniques will further enhance our ability to harness the full potential of Nitinol in various applications.If you want to get more information about this nickel titanium shape alloy sheet, you can contact us at baojihanz-niti@hanztech.cn.

References

1. Mehrpouya, M., & Gisario, A. (2021). Challenges in Machining of Nitinol Shape Memory Alloys: A Review. Journal of Materials Engineering and Performance, 30(8), 5741-5762.

2. Elahinia, M. H., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2012). Manufacturing and processing of NiTi implants: A review. Progress in Materials Science, 57(5), 911-946.

3. Kaynak, Y., Karaca, H. E., Noebe, R. D., & Jawahir, I. S. (2013). Tool-wear analysis in cryogenic machining of NiTi shape memory alloys: A comparison of tool-wear performance with dry and MQL machining. Wear, 306(1-2), 51-63.

4. Weinert, K., & Petzoldt, V. (2004). Machining of NiTi based shape memory alloys. Materials Science and Engineering: A, 378(1-2), 180-184.

5. Guo, Y., Klink, A., Fu, C., & Snyder, J. (2013). Machinability and surface integrity of Nitinol shape memory alloy. CIRP Annals, 62(1), 83-86.

6. Piquard, R., D'Acunto, A., Laheurte, P., & Dudzinski, D. (2019). Micro-end milling of NiTi biomedical alloys, burr formation and phase transformation. Precision Engineering, 55, 69-78.
