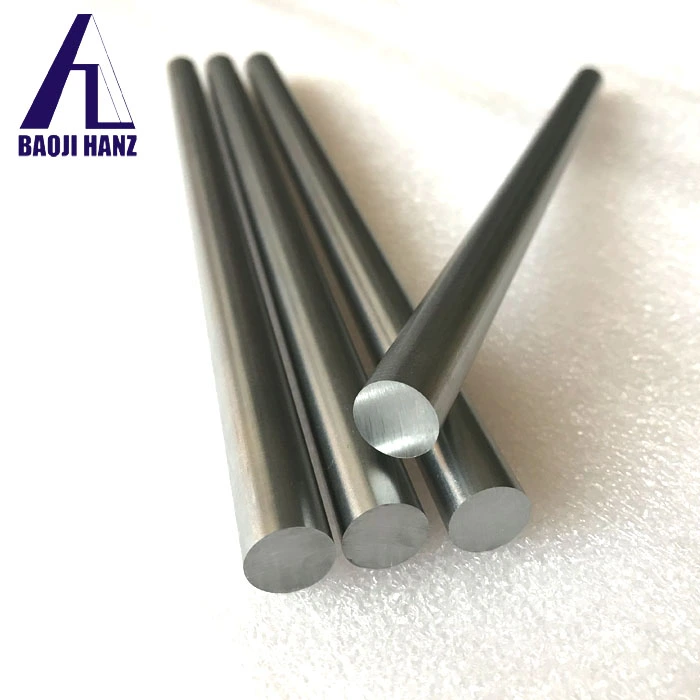

What are the properties of Nitinol ingot bars?

Nitinol ingot bars possess a unique set of properties that make them invaluable in various industries. These remarkable alloys, composed primarily of nickel and titanium, exhibit shape memory and superelasticity. Nitinol ingot bars can undergo significant deformation and return to their original shape when heated above a specific transition temperature. This shape memory effect, combined with their biocompatibility and corrosion resistance, makes nitinol ingot bars ideal for medical devices, aerospace applications, and advanced engineering projects. Their ability to withstand repeated stress cycles without fatigue, high strength-to-weight ratio, and excellent damping characteristics further enhance their appeal. As we delve deeper into the properties of nitinol ingot bars, we'll uncover the fascinating world of this revolutionary material and its transformative potential across diverse sectors.

Mechanical Properties of Nitinol Ingot Bars

Shape Memory Effect

The shape memory effect is perhaps the most renowned property of nitinol ingot bars. This phenomenon allows the material to "remember" and return to a predetermined shape when heated above its transformation temperature. At the microstructural level, this behavior is attributed to the reversible phase transformation between martensite and austenite. When cooled, nitinol transitions to its martensite phase, which can be easily deformed. Upon heating, it reverts to the austenite phase, recovering its original shape with considerable force. This unique ability finds applications in various fields. In the medical industry, nitinol stents can be compressed for minimally invasive insertion and then expand to their functional shape once inside the body. Aerospace engineers utilize this property for deployable structures in satellites, while consumer products like eyeglass frames benefit from the material's ability to return to shape after bending.

Superelasticity

Superelasticity, or pseudoelasticity, is another remarkable characteristic of nitinol ingot bars. This property allows the material to undergo large deformations and return to its original shape upon unloading, without the need for temperature change. Superelastic nitinol can withstand strains up to 8% without permanent deformation, far exceeding the elastic limit of most metals. The superelastic behavior stems from the stress-induced transformation between austenite and martensite phases at temperatures above the material's transformation temperature. This property is particularly valuable in applications requiring high flexibility and resilience, such as orthodontic archwires, surgical instruments, and seismic dampers in buildings.

Fatigue Resistance

Nitinol ingot bars exhibit exceptional fatigue resistance, outperforming many traditional alloys in cyclic loading conditions. This high endurance is attributed to the material's unique microstructure and its ability to accommodate strain through reversible phase transformations rather than dislocation movement. The superior fatigue life of nitinol makes it an excellent choice for applications involving repeated stress cycles, such as cardiovascular stents, vibration damping systems, and actuators in robotics. Its ability to withstand millions of cycles without significant degradation ensures long-term reliability and performance in demanding environments.

Physical Properties of Nitinol Ingot Bars

Thermal Characteristics

The thermal properties of nitinol ingot bars play a crucial role in their functionality and application. The transformation temperature, at which the material transitions between its martensite and austenite phases, can be fine-tuned through precise control of the alloy composition and processing methods. This adjustability allows for the creation of nitinol variants suitable for different operating temperatures, ranging from cryogenic to high-temperature environments. Nitinol also exhibits a low thermal expansion coefficient compared to many metals, which enhances its dimensional stability across a wide temperature range. This property is particularly valuable in precision instruments and space applications where thermal fluctuations could otherwise lead to performance issues.

Electrical and Magnetic Properties

The electrical and magnetic properties of nitinol ingot bars contribute to their versatility in various applications. Nitinol displays relatively high electrical resistivity, which can be advantageous in certain scenarios, such as in resistive heating elements or in applications where electrical insulation is desired. Magnetically, nitinol is generally considered non-magnetic in its austenite phase but can exhibit some magnetic properties in its martensite phase. This characteristic can be exploited in sensor applications or in devices where controlled magnetic behavior is required. The interplay between the material's phase transformations and its magnetic properties opens up interesting possibilities for smart materials and actuator designs.

Biocompatibility

One of the most valuable physical properties of nitinol ingot bars is their exceptional biocompatibility. The material forms a stable titanium oxide layer on its surface, which provides excellent corrosion resistance and prevents the release of potentially harmful ions into the body. This characteristic, combined with its mechanical properties, makes nitinol a preferred choice for many medical implants and devices. The biocompatibility of nitinol extends beyond its chemical inertness. Its ability to match the elastic modulus of bone more closely than many other metallic biomaterials reduces stress shielding effects in orthopedic implants. Furthermore, the material's superelasticity allows for the design of medical devices that can adapt to the body's natural movements, enhancing patient comfort and device efficacy.

Applications and Future Prospects of Nitinol Ingot Bars

Current Industrial Applications

The unique properties of nitinol ingot bars have led to their adoption across a wide range of industries. In the medical field, nitinol is used extensively in minimally invasive surgical tools, cardiovascular stents, orthodontic wires, and orthopedic implants. Its shape memory and superelastic properties allow for the creation of devices that can be compressed for insertion and then expand to their functional shape within the body. In aerospace and automotive industries, nitinol finds applications in vibration damping systems, thermostatic valves, and actuators. The material's high strength-to-weight ratio and fatigue resistance make it ideal for components subjected to repeated stress cycles. Consumer products also benefit from nitinol's properties, with applications ranging from eyeglass frames and cell phone antennas to underwire bras and golf club inserts.

Emerging Technologies and Research

The frontier of nitinol research is expanding rapidly, with scientists and engineers exploring new applications and enhancing existing ones. One area of intense focus is the development of nitinol-based microelectromechanical systems (MEMS) and nanoelectromechanical systems (NEMS). These miniature devices leverage the material's shape memory effect and superelasticity to create ultra-compact actuators and sensors. Another promising field is the integration of nitinol in smart textiles and wearable technology. Researchers are developing fabrics embedded with nitinol wires that can change shape or provide variable compression in response to temperature or electrical stimuli. This technology could revolutionize sportswear, medical compression garments, and even space suits.

Challenges and Future Developments

Despite its remarkable properties, nitinol ingot bars face certain challenges that researchers are actively addressing. One major focus is on improving the material's fatigue life under complex loading conditions, particularly in high-cycle applications. Engineers are also working on enhancing the precision and repeatability of the shape memory effect for more demanding applications. The future of nitinol ingot bars looks promising, with ongoing research into new alloy compositions and processing techniques. Scientists are exploring the addition of ternary elements to nitinol to fine-tune its properties for specific applications. Additionally, advancements in additive manufacturing technologies are opening up new possibilities for creating complex nitinol structures with unprecedented geometric freedom.

Conclusion

Nitinol ingot bars represent a remarkable leap in materials science, offering a unique combination of shape memory, superelasticity, and biocompatibility. From revolutionizing medical devices to enhancing aerospace technologies, nitinol continues to push the boundaries of what's possible in material design and application. As research progresses, we can expect even more innovative uses for this extraordinary alloy in the future. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
