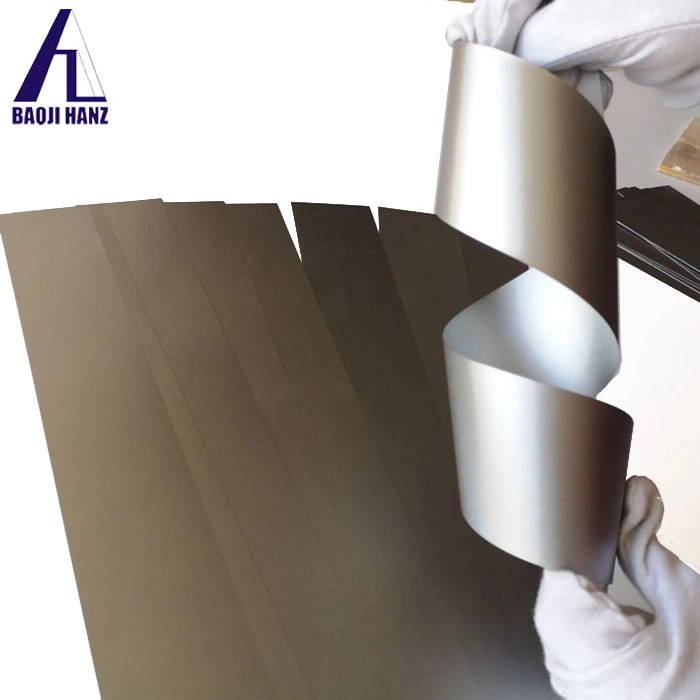

What are the properties of Nitinol sheets?

Nickel titanium shape alloy sheets, composed of nickel-titanium shape memory alloy, possess a remarkable set of properties that make them invaluable in various industries. These unique characteristics stem from the material's ability to undergo reversible phase transformations at specific temperatures. Nitinol sheets exhibit exceptional shape memory and superelasticity, allowing them to return to their original form after deformation. This property is particularly useful in applications requiring adaptive structures or self-expanding devices. Additionally, Nitinol sheets boast excellent biocompatibility, corrosion resistance, and fatigue strength, making them ideal for medical implants and aerospace components. The material's high damping capacity and ability to withstand extreme temperatures further expand its potential applications. Understanding these properties is crucial for engineers and designers looking to harness the full potential of Nitinol sheets in innovative product development and cutting-edge technologies.

Physical Properties of Nitinol Sheets

Shape Memory Effect

The shape memory effect is one of the most distinctive properties of Nitinol sheets. This phenomenon allows the material to "remember" and return to its original shape when heated above a specific temperature. The shape memory effect occurs due to the unique crystalline structure of Nitinol, which can transition between two different phases: martensite and austenite. When cooled, Nitinol exists in its martensite phase, where it can be easily deformed. Upon heating, it transforms into the austenite phase, reverting to its predetermined shape. This property enables Nitinol sheets to be used in actuators, thermal switches, and self-expanding medical devices.

Superelasticity

Superelasticity, also known as pseudoelasticity, is another remarkable characteristic of nickel titanium shape alloy sheets. This property allows the material to undergo large deformations without permanent damage, returning to its original shape upon removal of the applied stress. Superelasticity occurs when Nitinol is above its transformation temperature, where it can reversibly shift between austenite and stress-induced martensite phases. This behavior results in a much higher elastic strain recovery compared to conventional metals, typically up to 8% strain, whereas most metals can only recover about 0.5%. The superelastic nature of Nitinol sheets makes them ideal for applications requiring flexibility and durability, such as orthodontic wires, eyeglass frames, and vibration damping systems.

Thermal and Electrical Conductivity

Nitinol sheets exhibit unique thermal and electrical conductivity properties that set them apart from other metallic materials. The thermal conductivity of Nitinol is relatively low compared to other metals, which can be advantageous in applications where heat dissipation needs to be minimized. This property makes Nitinol sheets suitable for thermal insulation in aerospace and energy sectors. In terms of electrical conductivity, Nitinol possesses a higher electrical resistivity than many common metals, which can be beneficial in certain electrical applications. The resistivity of Nitinol also changes with its phase transformation, allowing it to be used in temperature-sensitive electrical devices and sensors.

Mechanical Properties of Nitinol Sheets

Strength and Ductility

Nitinol sheets demonstrate an impressive combination of strength and ductility, making them suitable for a wide range of applications. In its austenite phase, Nitinol exhibits high yield strength, typically ranging from 195 to 690 MPa, depending on the composition and processing. This strength is comparable to some stainless steels, but with the added benefit of superelasticity. The ductility of Nitinol sheets is also remarkable, with elongation at failure often exceeding 40%. This high ductility allows for significant plastic deformation without fracture, contributing to the material's toughness and resistance to fatigue. The unique balance of strength and ductility in Nitinol sheets enables their use in applications requiring both load-bearing capacity and flexibility, such as cardiovascular stents and orthopedic implants.

Fatigue Resistance

One of the most valuable mechanical properties of nickel titanium shape alloy sheets is their exceptional fatigue resistance. Unlike many conventional metals, Nitinol can withstand millions of loading cycles without significant degradation in its mechanical properties. This high fatigue resistance is attributed to the material's ability to accommodate large strains through reversible phase transformations rather than dislocation movement. Nitinol sheets can typically endure cyclic strains of up to 4% for millions of cycles, far exceeding the capabilities of most other metallic materials. This property makes Nitinol sheets ideal for applications involving repetitive motions or cyclic loading, such as artificial heart valves, vibration dampers, and actuators in aerospace systems.

Damping Capacity

Nitinol sheets possess an extraordinary damping capacity, which refers to their ability to absorb and dissipate mechanical energy. This property stems from the energy dissipation that occurs during the stress-induced martensitic transformation. When subjected to cyclic loading, Nitinol can absorb a significant amount of energy through its phase transformation, converting mechanical energy into heat. This high damping capacity makes Nitinol sheets excellent for vibration control and noise reduction applications. They are often used in seismic protection systems for buildings, automotive components to reduce road noise, and sports equipment to minimize vibrations. The damping properties of Nitinol sheets can be tailored by adjusting the alloy composition and heat treatment, allowing for customization to specific application requirements.

Chemical and Biocompatibility Properties of Nitinol Sheets

Corrosion Resistance

Nitinol sheets exhibit exceptional corrosion resistance, rivaling or even surpassing that of stainless steel in many environments. This resistance is primarily due to the formation of a stable, self-healing titanium oxide layer on the surface of the material. This protective layer prevents further oxidation and corrosion, even in harsh environments such as bodily fluids or seawater. The corrosion resistance of Nitinol sheets can be further enhanced through various surface treatments, such as electropolishing or passivation. This property makes Nitinol sheets particularly suitable for applications in marine environments, chemical processing equipment, and medical implants where long-term stability is crucial.

Biocompatibility

One of the most valuable properties of nickel titanium shape alloy sheets, especially in the medical field, is their excellent biocompatibility. Nitinol demonstrates minimal tissue reactivity and a low tendency to provoke inflammatory responses when implanted in the human body. This biocompatibility is attributed to the stable titanium oxide layer formed on the surface, which is similar to the oxide layer found on pure titanium implants. Nitinol's ability to maintain its mechanical properties under physiological conditions, combined with its biocompatibility, makes it an ideal material for various medical devices and implants. These include cardiovascular stents, orthodontic archwires, spinal vertebrae spacers, and minimally invasive surgical instruments. The biocompatibility of Nitinol sheets can be further improved through surface modifications and coatings to enhance cell adhesion or reduce protein adsorption, depending on the specific medical application.

Magnetic Resonance Imaging (MRI) Compatibility

An important consideration for medical applications of Nitinol sheets is their compatibility with Magnetic Resonance Imaging (MRI) procedures. Nitinol is generally considered MRI-compatible, as it is only weakly ferromagnetic. This means that Nitinol implants or devices typically do not pose significant risks during MRI scans, such as movement or heating. However, the exact MRI compatibility can vary depending on the specific composition and processing of the Nitinol sheet. In some cases, Nitinol may cause minor image artifacts due to its magnetic susceptibility. Despite this, the overall MRI compatibility of Nitinol sheets is a significant advantage in medical applications, allowing patients with Nitinol implants to safely undergo MRI scans. This property, combined with its other favorable characteristics, continues to drive the adoption of Nitinol in various medical devices and implants.

Conclusion

Nickel titanium shape alloy sheets exhibit a remarkable combination of properties that make them invaluable in various industries. From their shape memory effect and superelasticity to their excellent biocompatibility and corrosion resistance, Nitinol sheets offer unique solutions to complex engineering challenges. As research continues, we can expect to see even more innovative applications leveraging the exceptional properties of this versatile material. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1. Lagoudas, D. C. (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science & Business Media.

2. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273-275, 149-160.

3. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape Memory Materials. Cambridge University Press.

4. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical uses of nitinol. Materials Science Forum, 327, 63-70.

5. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

6. Shabalovskaya, S. A. (2002). Surface, corrosion and biocompatibility aspects of Nitinol as an implant material. Bio-Medical Materials and Engineering, 12(1), 69-109.
