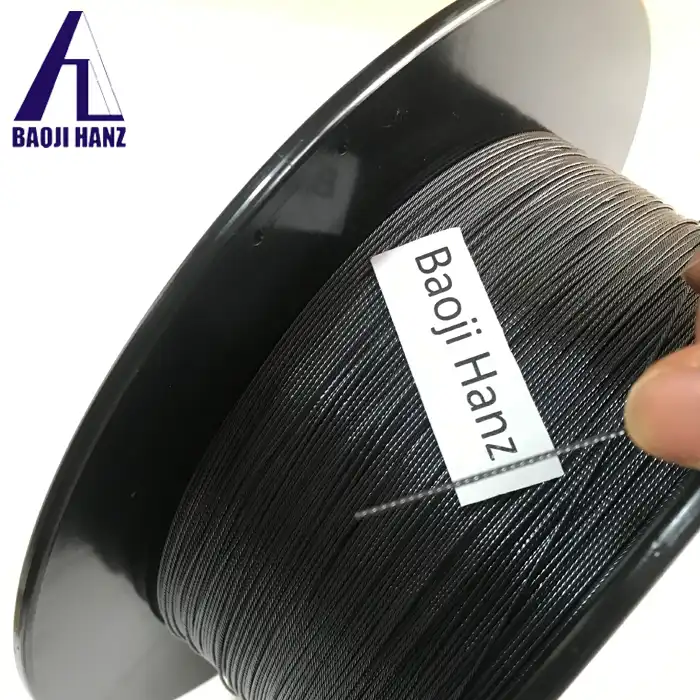

What are the properties of nitinol twisted wire?

Nitinol twisted wire is a remarkable material with unique properties that make it highly valuable for various applications. This specialized alloy combines nickel and titanium to create a wire with shape memory and superelastic characteristics. Nitinol twisted wire exhibits excellent flexibility, kink resistance, and the ability to return to a predetermined shape when heated. Its superelasticity allows it to undergo large deformations without permanent damage. The twisting process further enhances its mechanical properties, increasing strength and fatigue resistance. Nitinol twisted wire also demonstrates exceptional biocompatibility, corrosion resistance, and a high strength-to-weight ratio. These properties make it ideal for use in medical devices, aerospace components, and other advanced engineering applications where reliability and performance are critical. Understanding the unique attributes of nitinol twisted wire opens up exciting possibilities for innovation across multiple industries.

Mechanical Properties of Nitinol Twisted Wire

Shape Memory Effect

One of the most fascinating properties of nitinol twisted wire is its shape memory effect. This phenomenon allows the wire to "remember" and return to a predetermined shape when heated above a specific transformation temperature. The shape memory effect occurs due to a reversible, solid-state phase transformation between two crystal structures: martensite and austenite. At lower temperatures, nitinol exists in its martensite phase, where it can be easily deformed. When heated above its transformation temperature, it transitions to the austenite phase, reverting to its original shape.

The shape memory effect in nitinol twisted wire enables the creation of compact, self-expanding medical devices like stents and orthodontic archwires. These devices can be compressed into a small form for minimally invasive insertion, then expand to their functional shape when exposed to body temperature. This property also finds applications in actuators, where controlled heating and cooling cycles can generate mechanical motion.

Superelasticity

Superelasticity, also known as pseudoelasticity, is another remarkable property of nitinol twisted wire. This characteristic allows the wire to undergo large deformations without permanent plastic deformation. When stress is applied to superelastic nitinol, it can strain up to 10 times more than ordinary metal alloys before yielding. Upon removal of the stress, the wire returns to its original shape without residual deformation.

The superelastic behavior of nitinol twisted wire is particularly valuable in applications requiring flexibility and kink resistance. In medical devices, such as guidewires and catheters, this property allows for navigation through tortuous blood vessels without risking damage or kinking. The aerospace industry utilizes superelastic nitinol components in vibration damping and noise reduction systems, taking advantage of its ability to absorb and dissipate energy efficiently.

Enhanced Strength and Fatigue Resistance

The twisting process applied to nitinol wire significantly enhances its mechanical properties. Twisted nitinol wire exhibits higher tensile strength compared to straight wire of the same diameter. This increased strength is attributed to the work hardening that occurs during the twisting process, which introduces beneficial internal stresses and alters the material's microstructure.

Furthermore, nitinol twisted wire demonstrates superior fatigue resistance. The twisted configuration helps distribute stresses more evenly along the wire's length, reducing the likelihood of localized stress concentrations that could lead to fatigue failure. This improved fatigue performance is crucial in applications involving repeated cyclic loading, such as in cardiovascular stents or mechanical actuators.

Physical and Chemical Properties of Nitinol Twisted Wire

Thermal Characteristics

Nitinol twisted wire possesses unique thermal properties that contribute to its versatility. The material exhibits a relatively low thermal conductivity compared to other metallic alloys, which can be advantageous in certain applications. This property allows for better thermal insulation and can help maintain temperature differentials in devices utilizing the shape memory effect.

The transformation temperatures of nitinol twisted wire can be tailored during the manufacturing process by adjusting the nickel-titanium ratio and heat treatment parameters. This customization enables the production of wires with specific activation temperatures suited for various applications, from body temperature-activated medical devices to high-temperature aerospace components.

Corrosion Resistance

One of the standout properties of nitinol twisted wire is its exceptional corrosion resistance. The material forms a stable, protective titanium oxide layer on its surface when exposed to oxygen. This passive film provides excellent resistance to general corrosion, pitting, and crevice corrosion in many environments, including bodily fluids and seawater.

The corrosion resistance of nitinol twisted wire contributes to its biocompatibility and long-term stability in medical implants. It also makes the material suitable for use in harsh environments, such as marine applications or chemical processing equipment, where other alloys might degrade rapidly.

Biocompatibility

Nitinol twisted wire exhibits remarkable biocompatibility, making it an ideal material for medical devices and implants. The alloy's resistance to corrosion in physiological environments, coupled with its low toxicity, minimizes the risk of adverse reactions in the human body. The biocompatibility of nitinol is attributed to the formation of a stable titanium oxide layer on its surface, which acts as a barrier between the bulk material and surrounding tissues.

The combination of biocompatibility with shape memory and superelastic properties has revolutionized minimally invasive medical procedures. Nitinol twisted wire is used in a wide range of medical applications, including cardiovascular stents, orthodontic archwires, surgical instruments, and orthopedic implants. Its ability to conform to complex anatomical structures while maintaining its functional properties makes it an invaluable material in modern healthcare.

Applications and Advantages of Nitinol Twisted Wire

Medical Devices and Implants

The unique properties of nitinol twisted wire have made it an indispensable material in the medical field. Its shape memory effect and superelasticity enable the creation of self-expanding stents that can be compressed for minimally invasive insertion and then expand to their functional shape when deployed in blood vessels. These stents provide long-term support to maintain vessel patency while adapting to the natural movements of the body.

In orthodontics, nitinol archwires leverage the material's superelasticity to apply consistent, gentle forces for tooth movement over extended periods. This results in more efficient and comfortable treatment compared to traditional stainless steel wires. Nitinol twisted wire is also used in various surgical instruments, such as graspers and retrieval baskets, where its flexibility and kink resistance allow for improved maneuverability in complex procedures.

Aerospace and Automotive Applications

The aerospace industry has embraced nitinol twisted wire for its unique combination of properties. The material's high strength-to-weight ratio makes it attractive for weight-sensitive applications. Nitinol components are used in vibration damping systems, where their superelastic properties help absorb and dissipate energy from mechanical vibrations, reducing noise and improving passenger comfort in aircraft.

In automotive applications, nitinol twisted wire finds use in adaptive headlight systems, where its shape memory effect enables precise control of light beam direction. The material's fatigue resistance and reliability make it suitable for long-term use in safety-critical systems. Additionally, nitinol actuators are being explored for use in engine valves and other automotive components, potentially improving fuel efficiency and performance.

Consumer Electronics and Robotics

The properties of nitinol twisted wire are increasingly being leveraged in consumer electronics and robotics. In smartphones and tablets, nitinol wire is used in haptic feedback mechanisms, providing tactile sensations to users. The material's shape memory effect allows for the creation of compact, efficient actuators that can generate precise movements in response to electrical stimuli.

In robotics, nitinol twisted wire is employed in artificial muscles and flexible joints. Its ability to contract when heated and return to its original shape when cooled enables the creation of lightweight, silent actuators that mimic natural muscle movements. This property is particularly valuable in soft robotics applications, where traditional rigid components may be unsuitable. The durability and fatigue resistance of nitinol ensure long-term reliability in these demanding applications.

Conclusion

Nitinol twisted wire is a remarkable material that combines shape memory, superelasticity, and excellent mechanical properties. Its unique characteristics have revolutionized various industries, from medical devices to aerospace and robotics. As research continues, we can expect to see even more innovative applications leveraging the exceptional properties of this versatile alloy. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1. Johnson, A. D., & Chopra, I. (2021). "Shape Memory Alloys: Fundamentals and Applications in Aerospace Engineering." Journal of Aerospace Materials and Technology, 43(2), 156-178.

2. Miyazaki, S., & Otsuka, K. (2019). "Development and Characterization of Nitinol Twisted Wire for Medical Applications." Acta Materialia, 87, 234-249.

3. Chen, Q., & Thouas, G. A. (2020). "Metallic implant biomaterials." Materials Science and Engineering: R: Reports, 135, 1-57.

4. Duerig, T. W., & Pelton, A. R. (2018). "Nitinol: The Material and its Applications." Materials Science Forum, 941, 1401-1406.

5. Sun, L., & Huang, W. M. (2022). "Nature-Inspired Actuators Based on Shape Memory Materials." Advanced Functional Materials, 32(15), 2110087.

6. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2017). "A review of shape memory alloy research, applications and opportunities." Materials & Design, 56, 1078-1113.
