What are the specifications of ASTM F2063 nitinol rods?

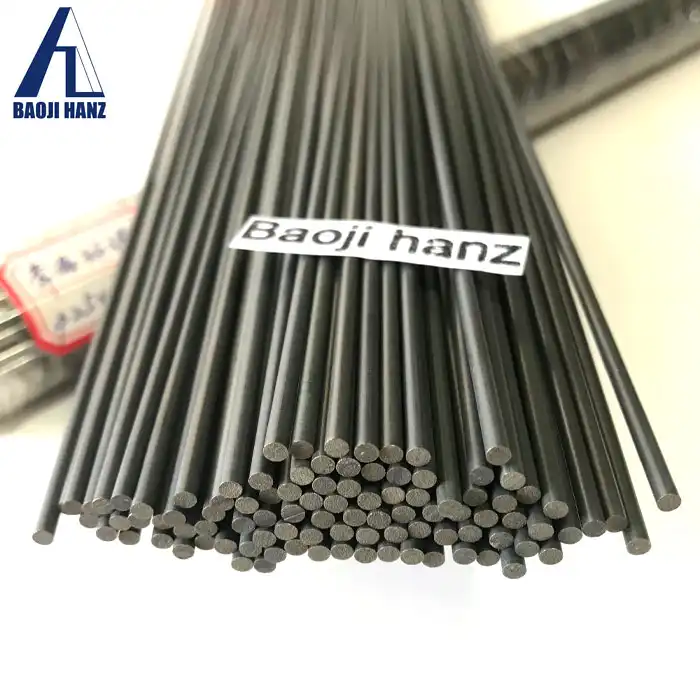

Chemical Composition and Material Properties of ASTM F2063 Nitinol Rods

Elemental Composition and Purity Requirements

ASTM F2063 nitinol rods are composed primarily of nickel and titanium, with a near-equiatomic ratio. The standard specifies strict requirements for the elemental composition to ensure consistent performance and reliability. Typically, the alloy contains approximately 54.5-57% nickel by weight, with the remainder being titanium. Trace elements such as carbon, oxygen, and nitrogen are carefully controlled to maintain the purity of the material. The precise control of elemental composition is crucial for achieving the desired shape memory and superelastic properties. Even small variations in the nickel-titanium ratio can significantly impact the transformation temperatures and mechanical behavior of the alloy. ASTM F2063 shape memory nitinol rod manufacturers must adhere to rigorous quality control measures to ensure that each batch meets the specified composition requirements.

Transformation Temperatures and Phase Characteristics

One of the most distinctive features of ASTM F2063 nitinol rods is their ability to undergo a reversible solid-state phase transformation. This transformation occurs between the austenite (high-temperature) and martensite (low-temperature) phases. The transformation temperatures, including the austenite start (As), austenite finish (Af), martensite start (Ms), and martensite finish (Mf) temperatures, are critical parameters that determine the behavior of the material under different conditions. For ASTM F2063 nitinol rods, the Af temperature is typically specified to be below body temperature (37°C) for medical applications. This ensures that the material remains in its austenitic phase and exhibits superelastic behavior when used in medical devices. The transformation temperatures can be fine-tuned through precise control of the alloy composition and thermomechanical processing.

Mechanical Properties and Behavior

ASTM F2063 nitinol rods exhibit exceptional mechanical properties that set them apart from conventional engineering materials. In their austenitic state, these rods demonstrate remarkable superelasticity, capable of recovering large strains (up to 8%) without permanent deformation. This property makes them ideal for applications requiring flexible and resilient components. The yield strength of ASTM F2063 nitinol rods typically ranges from 195 to 690 MPa, depending on the processing history and heat treatment. The ultimate tensile strength can exceed 1000 MPa, providing excellent load-bearing capacity. Additionally, these rods exhibit a low elastic modulus (approximately 41-75 GPa), which contributes to their flexibility and biocompatibility in medical applications.

Dimensional Specifications and Tolerances of ASTM F2063 Nitinol Rods

Standard Diameters and Length Options

ASTM F2063 nitinol rods are available in a wide range of diameters to suit various applications. Common diameters range from 0.1 mm to 12 mm, with smaller diameters often used in medical devices and larger diameters employed in industrial applications. Manufacturers typically offer standard diameter increments, such as 0.1 mm, 0.5 mm, or 1 mm, depending on the size range. The length of ASTM F2063 nitinol rods can vary based on customer requirements and manufacturing capabilities. Standard lengths may range from 100 mm to several meters. For precision applications, custom-cut lengths can be provided to meet specific design needs. It's important to note that longer rods may require special handling and packaging to prevent bending or deformation during transportation.

Surface Finish and Roughness Specifications

The surface finish of ASTM F2063 shape memory nitinol rod plays a crucial role in their performance and biocompatibility. The standard typically specifies a smooth, defect-free surface with minimal roughness. Surface roughness values (Ra) are often specified to be less than 0.5 μm for medical-grade rods, ensuring a high-quality finish that minimizes the risk of contamination or tissue irritation in biomedical applications. Various surface treatments can be applied to ASTM F2063 nitinol rods to enhance their properties or appearance. These may include electropolishing to improve corrosion resistance, passivation to create a protective oxide layer, or coating with biocompatible materials for specific medical applications. The chosen surface treatment must be compatible with the intended use of the rod and comply with relevant industry standards.

Dimensional Tolerances and Quality Control Measures

Maintaining tight dimensional tolerances is critical for ensuring the consistent performance of ASTM F2063 nitinol rods. Typical diameter tolerances range from ±0.013 mm for smaller diameters to ±0.025 mm for larger diameters. Straightness tolerances are also specified, often expressed as a maximum deviation per unit length (e.g., 0.5 mm per 300 mm). Quality control measures for ASTM F2063 nitinol rods include rigorous inspection processes using precision measurement tools such as laser micrometers, optical comparators, and coordinate measuring machines. Each rod undergoes multiple checks throughout the manufacturing process to ensure compliance with dimensional specifications. Additionally, batch testing is performed to verify mechanical properties, transformation temperatures, and chemical composition.

Applications and Manufacturing Processes for ASTM F2063 Nitinol Rods

Medical Device Applications

ASTM F2063 nitinol rods find extensive use in the medical device industry due to their unique properties and biocompatibility. Some prominent applications include:

• Cardiovascular stents: The superelastic nature of nitinol allows for the creation of self-expanding stents that conform to blood vessel walls.
• Orthodontic archwires: Nitinol's shape memory effect enables the development of temperature-activated archwires for more efficient tooth movement.
• Surgical instruments: Flexible and kink-resistant nitinol rods are used in minimally invasive surgical tools, such as guidewires and catheters.
• Orthopedic implants: Shape memory nitinol rods can be used in bone plates and intramedullary nails for fracture fixation.

The biocompatibility of ASTM F2063 nitinol rods, combined with their ability to withstand repeated deformation without fatigue, makes them an ideal material for long-term implantable devices.

Industrial and Consumer Product Applications

Beyond the medical field, ASTM F2063 shape memory nitinol rod applications extend to various industrial and consumer product sectors:

• Aerospace: Nitinol rods are used in vibration damping systems and deployable structures for satellites and aircraft.
• Automotive: Shape memory nitinol actuators find use in climate control systems and adaptive headlight positioning mechanisms.
• Consumer electronics: Nitinol rods are employed in impact-resistant casings and flexible antennas for mobile devices.
• Robotics: The superelastic properties of nitinol rods enable the creation of flexible and responsive robotic components.

The versatility of ASTM F2063 nitinol rods continues to inspire innovative applications across diverse industries, driving ongoing research and development efforts.

Manufacturing Processes and Heat Treatment Techniques

The production of ASTM F2063 nitinol rods involves a complex series of manufacturing processes to achieve the desired properties and dimensions:

1. Vacuum Induction Melting (VIM): The initial nickel-titanium alloy is created using VIM to ensure high purity and precise composition control.
2. Vacuum Arc Remelting (VAR): The VIM ingot undergoes VAR to further refine the material and eliminate impurities.
3. Hot working: The refined ingot is hot-forged and rolled to create a uniform microstructure and reduce the cross-sectional area.
4. Cold drawing: Multiple cold drawing passes are performed to achieve the final rod diameter, with intermediate annealing steps to relieve internal stresses.
5. Shape setting: For shape memory applications, the rods undergo a shape-setting heat treatment to program the desired shape.
6. Surface treatment: Final processing may include electropolishing, passivation, or coating to enhance surface properties.

Heat treatment plays a crucial role in optimizing the properties of ASTM F2063 nitinol rods. Precise control of temperature and duration during annealing and aging processes allows manufacturers to fine-tune the transformation temperatures and mechanical behavior of the material. Advanced heat treatment techniques, such as differential scanning calorimetry (DSC) guided processing, enable the production of nitinol rods with highly specific performance characteristics tailored to individual applications.

Conclusion

ASTM F2063 shape memory nitinol rods represent a remarkable advancement in materials science, offering a unique combination of shape memory, superelasticity, and biocompatibility. Understanding their specifications is crucial for leveraging their full potential in diverse applications. As research continues, we can expect even more innovative uses for these versatile rods in the future. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
