What are the temperature properties of nitinol foil?
2024-10-18 22:32:37
Super elastic nitinol foil, a remarkable material known for its unique temperature-dependent properties, has revolutionized various industries with its exceptional characteristics. This blog delves into the fascinating world of nitinol foil, exploring its temperature-related behaviors and how they contribute to its versatility. We'll examine the shape memory effect, which allows the material to return to a predetermined shape after deformation, and superelasticity, enabling it to withstand significant stress without permanent distortion. Additionally, we will discuss the crucial transition temperatures, such as the martensite to austenite transformation, that define nitinol's performance and usability. Understanding these properties is essential for engineers, researchers, and innovators seeking to harness the full potential of this extraordinary alloy in applications ranging from medical devices, like stents and guidewires, to aerospace technologies, where reliability and adaptability are paramount. By diving deep into the mechanics of nitinol, we uncover the reasons behind its growing popularity and diverse applications in modern engineering.

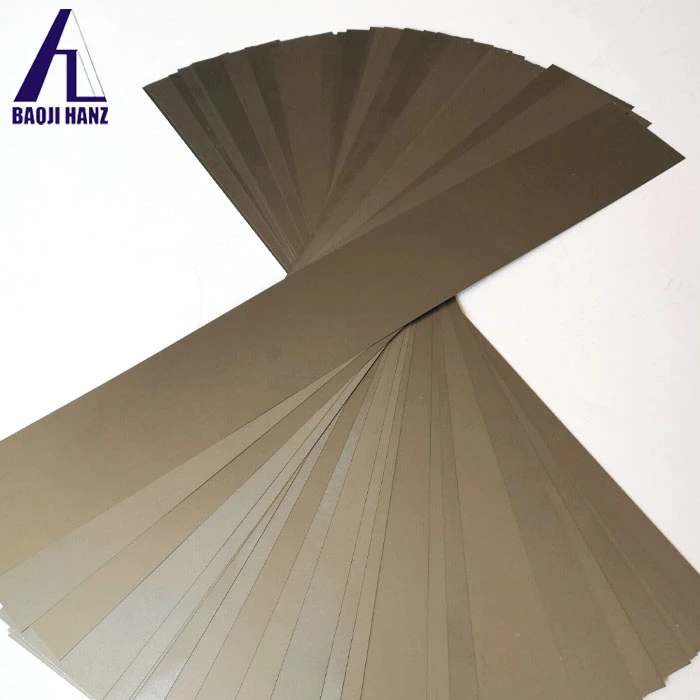

The Fundamentals of Nitinol Foil
Composition and Structure
Nitinol foil is composed of nearly equal atomic percentages of nickel and titanium. This unique composition gives rise to its extraordinary properties. The crystal structure of nitinol undergoes a reversible phase transformation between two solid phases: austenite (high-temperature phase) and martensite (low-temperature phase). This phase transformation is the key to understanding nitinol's temperature-dependent behaviors.
Superelasticity Explained
Super elastic nitinol foil exhibits an extraordinary ability to undergo large deformations and return to its original shape upon unloading. This property, known as superelasticity, is observed when the material is above its austenite finish temperature (Af). In this state, the applied stress induces a phase transformation from austenite to martensite, allowing the material to accommodate large strains without permanent deformation.
Shape Memory Effect
The shape memory effect is another remarkable property of nitinol foil. When the material is cooled below its martensite finish temperature (Mf), it can be deformed into a new shape. Upon heating above its austenite start temperature (As), the foil "remembers" and returns to its original shape. This phenomenon occurs due to the reversible martensitic transformation and is widely utilized in various applications.
Temperature-Dependent Transformations in Nitinol Foil
Austenite-Martensite Transition
The transformation between austenite and martensite phases is the cornerstone of nitinol's temperature properties. This transition occurs over a temperature range, rather than at a single temperature point. As the temperature increases, the material begins to transform from martensite to austenite at the austenite start temperature (As) and completes the transformation at the austenite finish temperature (Af). Conversely, as the temperature decreases, the transformation from austenite to martensite begins at the martensite start temperature (Ms) and finishes at the martensite finish temperature (Mf).
Hysteresis in Nitinol Foil
An important aspect of nitinol's temperature properties is the hysteresis associated with the phase transformation. The temperatures at which the material transforms from martensite to austenite during heating are higher than the temperatures at which it transforms from austenite to martensite during cooling. This temperature difference, known as hysteresis, can range from 20°C to 50°C depending on the specific composition and processing of the nitinol foil. Understanding and controlling this hysteresis is crucial for designing applications that require precise temperature-dependent behavior.
R-Phase Transformation
In some cases, super elastic nitinol foil may exhibit an intermediate phase known as the R-phase during the transformation between austenite and martensite. The R-phase occurs in a narrow temperature range and is characterized by a rhombohedral crystal structure. This additional phase can influence the temperature-dependent properties of nitinol foil and is sometimes utilized in specific applications where precise control over the transformation behavior is required.
Factors Influencing Temperature Properties of Nitinol Foil
Composition Variations
The temperature properties of nitinol foil are highly sensitive to its composition. Even small changes in the nickel-titanium ratio can significantly affect the transformation temperatures. Generally, increasing the nickel content lowers the transformation temperatures, while increasing the titanium content raises them. This sensitivity allows for precise tuning of the material's behavior by adjusting its composition during manufacturing.
Thermomechanical Processing
The temperature properties of super elastic nitinol foil can be further modified through various thermomechanical processing techniques. Cold working, heat treatments, and annealing processes can alter the microstructure of the material, influencing its transformation temperatures and hysteresis. For example, cold working typically increases the stress required for martensite transformation, while appropriate heat treatments can recover the material's properties and adjust its transformation temperatures.
Stress-Induced Effects
Applied stress can have a significant impact on the temperature properties of nitinol foil. Mechanical loading can shift the transformation temperatures, with higher stresses generally leading to higher transformation temperatures. This phenomenon, known as the Clausius-Clapeyron effect, is particularly important in applications where the nitinol foil is subjected to varying stress levels during operation. Understanding these stress-induced effects is crucial for predicting and controlling the material's behavior in real-world applications.
Conclusion
The temperature properties of nitinol super elastic nitinol foil are a testament to its exceptional versatility and potential. From shape memory effects to superelasticity, these unique characteristics open up a world of possibilities across various industries. By understanding and harnessing these properties, engineers and researchers can continue to push the boundaries of what's possible with this remarkable material. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
References
1. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge university press.
2. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273, 149-160.
3. Lagoudas, D. C. (Ed.). (2008). Shape memory alloys: modeling and engineering applications. Springer Science & Business Media.
4. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.
5. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: a review. Materials & Design, 33, 577-640.
6. Yeung, K. W. K., & Poon, R. W. Y. (2015). Superelastic nitinol alloy for biomedical applications. In Shape Memory Alloys for Biomedical Applications (pp. 37-70). Woodhead Publishing.
