What are the typical specifications for OEM Nitinol compression springs?

Design Parameters of OEM Nitinol Compression Springs

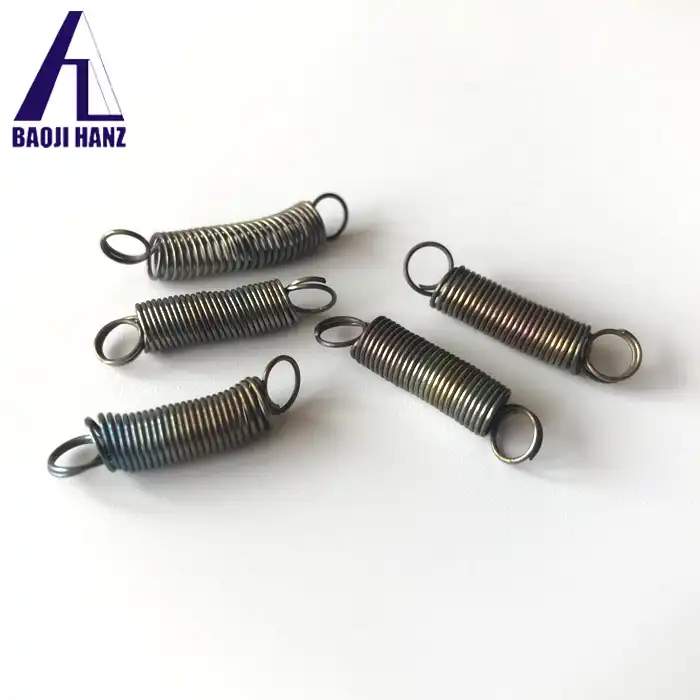

Spring Geometry and Dimensions

The geometry of OEM Nitinol compression springs plays a pivotal role in their performance. These springs are typically cylindrical, with a helical coil structure. The key dimensional specifications include the wire diameter, spring outer diameter, free length, and number of active coils. Wire diameters for Nitinol springs can range from as small as 0.1 mm to several millimeters, depending on the application requirements. The spring outer diameter is usually determined by the space constraints of the intended application, while the free length refers to the spring's uncompressed height. The number of active coils affects the spring's deflection capabilities and spring rate.

Spring Rate and Load Capacity

The spring rate, also known as spring constant, is a crucial specification for OEM Nitinol compression springs. It measures the force required to compress the spring by a unit distance. Nitinol springs exhibit a unique property called superelasticity, which allows them to undergo large deformations without permanent damage. This characteristic results in a non-linear spring rate, particularly at higher stress levels. The load capacity of Nitinol springs is typically higher than that of conventional materials, allowing for more compact designs in high-stress applications. Manufacturers often provide load-deflection curves to illustrate the spring's behavior under various loads.

Working Temperature Range

One of the most remarkable features of OEM Nitinol compression springs is their ability to function across a wide temperature range. The typical working temperature range for these springs spans from -20°C to 80°C (-4°F to 176°F). However, specialized Nitinol alloys can be engineered to operate at even more extreme temperatures. The temperature at which the shape memory effect occurs, known as the transformation temperature, can be tailored during the manufacturing process. This customization allows for springs that activate at specific temperatures, making them ideal for thermal actuators and temperature-sensitive devices.

Material Characteristics of Nitinol for Compression Springs

Composition and Microstructure

The composition of Nitinol used in OEM compression springs typically consists of approximately 55% nickel and 45% titanium by weight. This near-equiatomic composition is crucial for achieving the desired shape memory and superelastic properties. The microstructure of Nitinol undergoes a reversible phase transformation between austenite (high-temperature phase) and martensite (low-temperature phase). This transformation is the basis for the material's unique behavior. Manufacturers can fine-tune the alloy composition and heat treatment processes to adjust the transformation temperatures and mechanical properties to suit specific application requirements.

Mechanical Properties

OEM Nitinol compression springs boast exceptional mechanical properties that set them apart from conventional spring materials. The yield strength of Nitinol can range from 195 to 690 MPa, depending on the heat treatment and processing. The ultimate tensile strength can reach up to 1900 MPa, making it one of the strongest metallic materials available. Nitinol also exhibits remarkable elasticity, with elastic strain limits up to 8%, compared to less than 1% for most metals. This high elasticity allows for springs that can undergo large deformations and still return to their original shape.

Fatigue Resistance and Durability

The fatigue resistance of OEM Nitinol compression springs is superior to that of many traditional spring materials. These springs can withstand millions of cycles without significant degradation in performance, making them ideal for applications requiring long-term reliability. The fatigue limit of Nitinol can exceed 10% of its ultimate tensile strength, compared to about 35-50% for conventional spring steels. This exceptional fatigue resistance is attributed to the material's ability to accommodate large strains without accumulating permanent damage. Additionally, Nitinol's corrosion resistance contributes to the springs' durability, particularly in hostile environments or biomedical applications.

Performance Metrics and Quality Control

Shape Memory and Superelasticity Characterization

The shape memory effect and superelasticity are the defining characteristics of OEM Nitinol compression springs. Manufacturers employ sophisticated testing methods to characterize these properties. Differential Scanning Calorimetry (DSC) is used to determine the transformation temperatures, while stress-strain curves are analyzed to quantify the superelastic behavior. The shape recovery ratio, which measures the spring's ability to return to its original shape after deformation, is typically above 95% for high-quality Nitinol springs. Superelastic plateaus, representing the stress range over which the material exhibits large recoverable strains, are carefully measured and documented to ensure consistent performance.

Biocompatibility and Surface Treatment

For OEM Nitinol compression springs intended for medical applications, biocompatibility is a critical specification. Nitinol demonstrates excellent biocompatibility, with low toxicity and minimal tissue reaction. However, manufacturers often apply surface treatments to further enhance these properties. Electropolishing is a common technique used to create a smooth, oxide-rich surface that improves corrosion resistance and reduces nickel leaching. Some manufacturers also offer specialized coatings, such as titanium nitride (TiN) or diamond-like carbon (DLC), to further improve biocompatibility and wear resistance. These surface treatments are rigorously tested to ensure compliance with standards such as ISO 10993 for biocompatibility.

Quality Assurance and Certification

OEM Nitinol compression springs undergo rigorous quality control processes to ensure consistent performance and reliability. Manufacturers typically employ advanced inspection techniques, including optical and electron microscopy, X-ray diffraction, and automated dimensional measurements. Each batch of springs is subjected to functional testing to verify mechanical properties and shape memory behavior. Many manufacturers adhere to international standards such as ASTM F2063 for wrought nickel-titanium shape memory alloys and ISO 13485 for medical device quality management systems. Certification documents, including material composition analysis, heat treatment records, and performance test results, are often provided with each batch of springs to ensure traceability and compliance with industry standards.

Conclusion

OEM Nitinol compression springs offer a unique combination of properties that make them invaluable in various high-performance applications. Their typical specifications encompass a wide range of design parameters, material characteristics, and performance metrics that can be tailored to meet specific requirements. By understanding these specifications, engineers and manufacturers can harness the full potential of Nitinol springs to create innovative and reliable products across diverse industries. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
