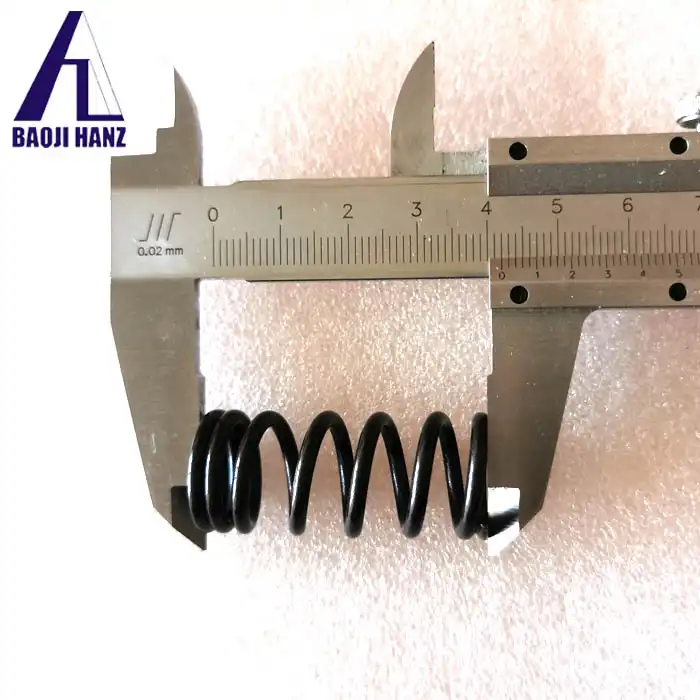

What is a high tension Nitinol spring?

The Composition and Properties of High Tension Nitinol Springs

Chemical Composition of Nitinol

Nitinol, the material used in high tension springs, is an equiatomic alloy consisting of approximately 55% nickel and 45% titanium. This precise composition is crucial for achieving the desired shape memory and superelastic properties. The intermetallic compound formed by these elements creates a unique crystal structure that allows for reversible phase transformations between austenite and martensite states. The exact ratio of nickel to titanium can be fine-tuned to adjust the transformation temperatures and mechanical properties of the alloy. Small variations in composition can significantly impact the behavior of the material, making precise control during manufacturing essential for producing high-quality springs.

Superelasticity and Shape Memory Effect

One of the most remarkable properties of high tension Nitinol springs is their superelasticity. This characteristic allows the springs to undergo large deformations without permanent damage, returning to their original shape when the stress is removed. The superelastic behavior is a result of the stress-induced transformation between the austenite and martensite phases of the alloy. The shape memory effect is another fascinating property of Nitinol springs. When deformed at lower temperatures, the springs can be restored to their original shape by heating them above their transformation temperature. This unique ability enables the creation of springs that can be programmed to change shape or exert force in response to temperature changes.

Mechanical Strength and Fatigue Resistance

High tension Nitinol springs exhibit exceptional mechanical strength, with yield strengths ranging from 500 to 900 MPa, depending on the specific composition and heat treatment. This high strength allows for the creation of compact springs capable of withstanding significant loads and stresses. Additionally, Nitinol springs demonstrate excellent fatigue resistance, outperforming many traditional spring materials. The unique phase transformation mechanism of Nitinol helps distribute stress more evenly throughout the material, reducing the likelihood of crack initiation and propagation. This property makes high tension Nitinol springs ideal for applications requiring long-term reliability and performance under cyclic loading conditions.

Manufacturing Processes for High Tension Nitinol Springs

Melting and Ingot Formation

The production of high tension Nitinol springs begins with the careful melting of high-purity nickel and titanium in precise proportions. This process typically employs vacuum induction melting (VIM) or vacuum arc remelting (VAR) techniques to ensure homogeneity and minimize impurities. The molten alloy is then cast into ingots, which serve as the starting material for subsequent processing steps. To further refine the material and improve its properties, the ingots may undergo additional remelting processes, such as electron beam melting or plasma arc melting. These advanced techniques help eliminate residual impurities and ensure a uniform composition throughout the ingot, which is crucial for achieving consistent performance in the final spring products.

Hot Working and Cold Drawing

The Nitinol ingots are subjected to hot working processes, such as forging or extrusion, to break down the as-cast structure and improve the material's mechanical properties. This step helps refine the grain structure and enhance the overall strength and ductility of the alloy. Following hot working, the material undergoes a series of cold drawing operations to reduce its diameter and achieve the desired wire dimensions for spring manufacturing. Cold drawing also contributes to work hardening, further improving the mechanical properties of the Nitinol wire. Intermediate annealing steps may be necessary to relieve internal stresses and maintain workability during the drawing process.

Shape Setting and Heat Treatment

Once the Nitinol wire has been drawn to the appropriate diameter, it is wound into the desired spring shape using specialized equipment. The spring is then subjected to a critical shape-setting heat treatment process, typically performed at temperatures ranging from 400°C to 550°C. This heat treatment serves to "program" the spring's shape memory and superelastic properties. The specific parameters of the shape-setting process, including temperature, duration, and cooling rate, are carefully controlled to optimize the spring's performance characteristics. Advanced heat treatment techniques, such as differential scanning calorimetry (DSC), may be employed to precisely determine the transformation temperatures and fine-tune the spring's behavior.

Applications and Advantages of High Tension Nitinol Springs

Medical Devices and Implants

High tension Nitinol springs have found extensive use in the medical field, particularly in the development of minimally invasive surgical instruments and implantable devices. Their superelasticity and biocompatibility make them ideal for applications such as stents, guidewires, and orthodontic archwires. In cardiovascular medicine, Nitinol springs are used to create self-expanding stents that can be compressed into a small diameter for insertion into blood vessels and then expand to their programmed shape once deployed. This property allows for less invasive procedures and improved patient outcomes. Similarly, in orthopedics, Nitinol springs are utilized in bone fixation devices and spinal implants, where their ability to maintain constant force over large deformations is particularly advantageous.

Aerospace and Automotive Industries

The aerospace and automotive sectors have embraced high tension Nitinol springs for their exceptional fatigue resistance and ability to operate reliably under extreme conditions. In aircraft, these springs are used in vibration damping systems, actuators, and safety mechanisms, where their compact size and high energy storage capacity offer significant advantages over traditional materials. Automotive applications include engine valve springs, suspension components, and adaptive headlight systems. The temperature-responsive nature of Nitinol springs allows for the creation of smart actuators that can automatically adjust vehicle systems based on environmental conditions, enhancing performance and safety.

Consumer Electronics and Robotics

High tension Nitinol springs have revolutionized the design of compact and responsive mechanisms in consumer electronics and robotics. Their ability to provide large displacements and forces in a small package makes them ideal for applications such as haptic feedback devices in smartphones and tablets, camera autofocus mechanisms, and miniature actuators in robotic systems. In the field of soft robotics, Nitinol springs are being explored for creating flexible, shape-changing structures that can adapt to their environment. This emerging application leverages the shape memory effect to create smart materials that can respond to electrical or thermal stimuli, opening up new possibilities for adaptive and bio-inspired robotic designs.

Conclusion

High tension Nitinol springs represent a remarkable advancement in materials science, offering a unique combination of strength, flexibility, and responsiveness. Their exceptional properties have revolutionized various industries, from medical devices to aerospace applications. As research continues to unlock new potential uses for these innovative components, high tension Nitinol springs are poised to play an increasingly important role in shaping the future of technology and engineering. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
