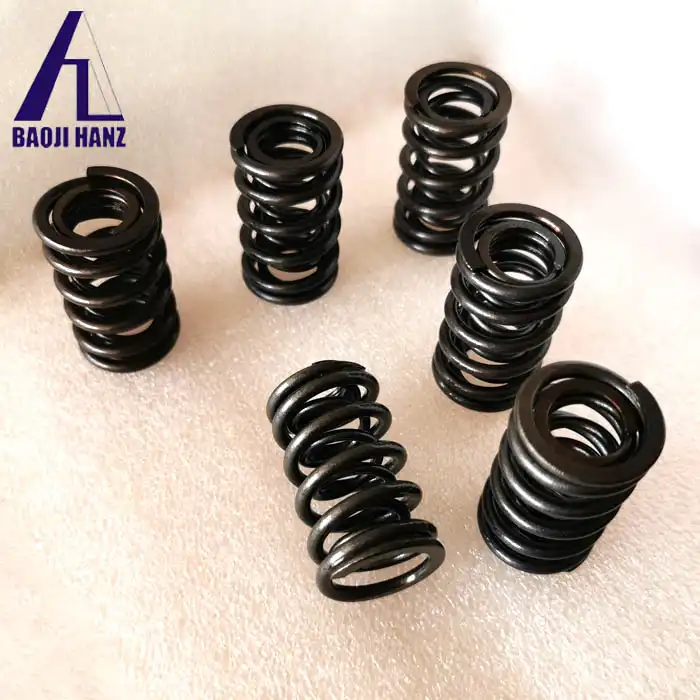

What is a Nitinol compression spring?

Understanding Nitinol and Its Unique Properties

The Composition and Structure of Nitinol

Nitinol, an acronym for Nickel Titanium Naval Ordnance Laboratory, is an extraordinary alloy composed of nearly equal parts nickel and titanium. This equiatomic intermetallic compound possesses a crystal structure that undergoes a reversible solid-state phase transformation. At higher temperatures, Nitinol exhibits an austenitic structure, while at lower temperatures, it transitions to a martensitic phase. This phase transformation is the key to Nitinol's remarkable properties, including shape memory and superelasticity. The unique atomic arrangement in Nitinol allows for a phenomenon known as twinning, where the crystal structure can reorient itself without breaking atomic bonds. This mechanism enables Nitinol to undergo large deformations and subsequently return to its original shape when heated or unloaded. The precise composition and processing of Nitinol can be tailored to achieve specific transformation temperatures and mechanical properties, making it a versatile material for various applications.

Shape Memory Effect and Superelasticity

The shape memory effect is perhaps Nitinol's most captivating characteristic. When deformed below its transformation temperature, Nitinol can retain its new shape until heated above a critical temperature, at which point it "remembers" and returns to its original form. This phenomenon occurs due to the reversible martensitic transformation, where the crystal structure shifts between the low-temperature martensite phase and the high-temperature austenite phase. Superelasticity, another remarkable property of Nitinol, allows the material to undergo large elastic deformations without permanent plastic deformation. This behavior is observed when Nitinol is stressed above its austenite finish temperature. The applied stress induces a phase transformation from austenite to martensite, enabling the material to accommodate significant strain. Upon removal of the stress, Nitinol reverts to its austenitic structure, recovering its original shape. This property enables Nitinol to withstand strains up to 8%, far exceeding the elastic limit of conventional metals.

Advantages of Nitinol Over Traditional Spring Materials

Nitinol offers several distinct advantages over traditional spring materials such as steel or copper alloys. Its superelastic behavior allows for larger deflections and energy storage capacity within a smaller form factor. This property enables the design of more compact and efficient spring systems. Additionally, Nitinol's excellent fatigue resistance and ability to withstand cyclic loading make it ideal for applications requiring long-term reliability and durability. The corrosion resistance of Nitinol surpasses that of many conventional spring materials, particularly in saline or bodily fluid environments. This characteristic, combined with its biocompatibility, has led to widespread adoption in medical devices and implants. Furthermore, Nitinol's unique thermomechanical properties allow for the creation of temperature-activated springs, opening up new possibilities in thermal management and actuation systems.

Design and Manufacturing of Nitinol Compression Springs

Principles of Nitinol Spring Design

Designing Nitinol compression springs requires a nuanced understanding of the material's unique properties and behavior. Unlike conventional springs, Nitinol springs can be engineered to exhibit both superelastic and shape memory characteristics, depending on the intended application. The design process involves careful consideration of factors such as the desired force-deflection characteristics, operating temperature range, and cyclic loading requirements. One crucial aspect of Nitinol spring design is the selection of appropriate transformation temperatures. By manipulating the alloy composition and thermomechanical processing, engineers can tailor the austenite start (As) and finish (Af) temperatures to suit specific application needs. For superelastic springs, the Af temperature is typically set below the operating temperature to ensure the material remains in the austenitic phase during use. Conversely, shape memory springs may be designed with transformation temperatures above ambient conditions to enable temperature-activated actuation.

Manufacturing Techniques for Nitinol Compression Springs

The fabrication of Nitinol compression springs involves specialized manufacturing techniques that differ from those used for conventional spring materials. The process typically begins with Nitinol wire or strip that has been cold-worked to achieve the desired mechanical properties. The material is then wound into the spring shape using precision coiling machines that can accommodate Nitinol's unique stress-strain behavior. Following the coiling process, Nitinol springs undergo a crucial heat treatment step known as shape setting. This process involves fixing the spring in its desired shape and heating it to temperatures typically ranging from 400°C to 550°C, depending on the specific alloy composition and desired properties. The heat treatment serves to relieve internal stresses and set the "memory" shape of the spring. Careful control of temperature and duration during this stage is essential to achieve optimal performance characteristics.

Quality Control and Testing Procedures

Ensuring the consistent performance and reliability of Nitinol compression springs necessitates rigorous quality control and testing procedures. These processes begin with thorough material characterization, including differential scanning calorimetry (DSC) to verify transformation temperatures and X-ray diffraction analysis to confirm crystal structure and phase composition. Mechanical testing, such as tensile and compression tests, is conducted to evaluate strength, elasticity, and load-bearing capacity. Fatigue testing is particularly critical for Nitinol springs, given their frequent use in applications involving cyclic loading. These tests assess the spring's ability to maintain its properties over numerous compression-extension cycles. Additionally, corrosion resistance testing may be performed, especially for springs intended for use in harsh environments or medical applications. Advanced imaging techniques, including scanning electron microscopy (SEM), can be employed to inspect surface quality and detect any microstructural defects that may impact performance.

Applications and Future Prospects of Nitinol Compression Springs

Medical and Dental Applications

The biocompatibility and unique properties of Nitinol have led to its widespread adoption in medical and dental applications. Nitinol compression springs find use in various medical devices, including orthodontic archwires, stents, and catheter guide wires. In orthodontics, Nitinol springs provide constant, gentle forces for tooth movement, improving treatment efficiency and patient comfort. The superelasticity of Nitinol allows these springs to maintain consistent force levels over a wide range of deflections, reducing the need for frequent adjustments. In cardiovascular applications, Nitinol compression springs are utilized in self-expanding stents and heart valve frames. The shape memory effect enables these devices to be compressed into a small diameter for minimally invasive insertion, then expand to their functional shape once deployed in the body. The superelastic behavior of Nitinol springs also allows these implants to flex with the natural movement of blood vessels or heart tissue, reducing the risk of damage or dislodgement.

Aerospace and Automotive Industries

The aerospace and automotive sectors have increasingly embraced Nitinol compression springs for their exceptional fatigue resistance and ability to operate reliably under extreme conditions. In aerospace applications, these springs are used in vibration damping systems, where their high energy absorption capacity helps mitigate mechanical shock and vibration. The temperature-dependent properties of Nitinol also make it valuable for thermal management systems in aircraft, allowing for adaptive control of heat dissipation. In the automotive industry, Nitinol compression springs find applications in advanced suspension systems, where their superelastic behavior can provide variable spring rates depending on load conditions. This property enables the development of more responsive and comfortable ride dynamics. Additionally, Nitinol springs are utilized in engine components and actuators, where their resistance to high temperatures and corrosive environments offers improved durability and performance compared to conventional spring materials.

Emerging Technologies and Future Applications

The unique properties of Nitinol compression springs continue to inspire innovation across various fields. In the realm of robotics and soft actuators, these springs are being explored for their potential to create compact, high-force actuators with variable stiffness characteristics. The ability to control the spring's behavior through temperature changes opens up possibilities for adaptive and responsive robotic systems. In the field of energy harvesting, researchers are investigating the use of Nitinol compression springs to convert thermal energy into mechanical work. By exploiting the shape memory effect, these systems could potentially generate electricity from low-grade heat sources, contributing to more efficient energy utilization. Furthermore, the development of new Nitinol alloys with enhanced properties, such as wider transformation temperature ranges or improved fatigue resistance, promises to expand the application scope of these remarkable springs in the future.

Conclusion

Nitinol compression springs represent a groundbreaking advancement in spring technology, offering unparalleled performance in various applications. Their unique properties, including shape memory and superelasticity, have revolutionized industries ranging from medicine to aerospace. As research continues and new applications emerge, Nitinol compression springs are poised to play an increasingly vital role in shaping the future of engineering and technology. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
