What is a shape memory nitinol ingot?

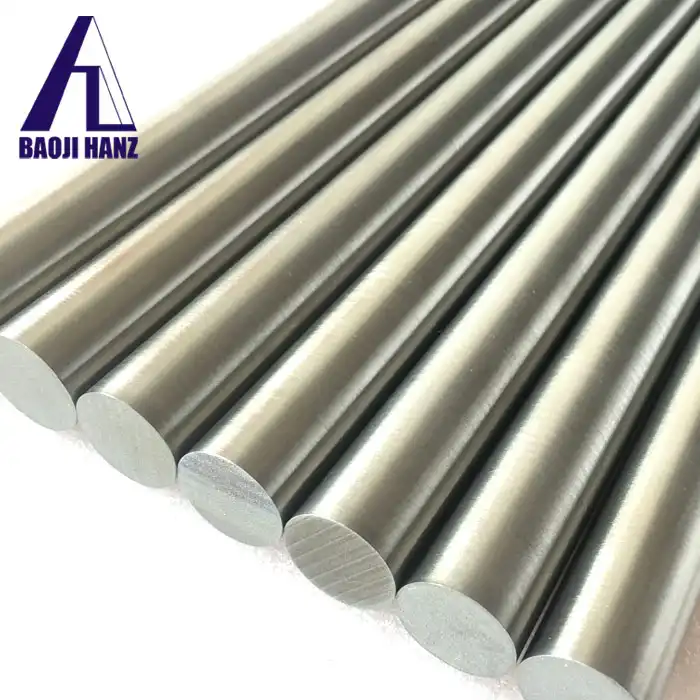

Understanding Shape Memory Nitinol Ingots

Composition and Structure of Nitinol

Shape memory nitinol ingots are composed of a nearly equiatomic alloy of nickel and titanium. This unique combination gives nitinol its exceptional properties, including shape memory and superelasticity. The alloy typically contains about 55-56% nickel by weight, with the remainder being titanium. The precise composition can be adjusted to fine-tune the alloy's properties for specific applications. At the atomic level, nitinol exists in two distinct crystal structures: austenite and martensite. The austenite phase is stable at higher temperatures and has a cubic crystal structure, while the martensite phase is stable at lower temperatures and has a monoclinic crystal structure. The ability of nitinol to switch between these two phases is the key to its shape memory behavior.

The Shape Memory Effect Explained

The shape memory effect in nitinol ingots is a result of a reversible, solid-state phase transformation between the austenite and martensite phases. When a nitinol ingot is cooled from its austenite phase, it transforms into the martensite phase without changing its shape. However, when stress is applied to the martensite, it can be easily deformed. The magic happens when the deformed martensite is heated above its transformation temperature. As the temperature rises, the crystal structure begins to shift back to the austenite phase. During this transformation, the atoms realign themselves to their original positions, causing the ingot to recover its pre-deformed shape. This process can be repeated many times without degradation of the material.

Superelasticity: A Related Phenomenon

In addition to the shape memory effect, nitinol ingots also exhibit superelasticity, sometimes called pseudoelasticity. This property allows the material to undergo large deformations and return to its original shape upon removal of the stress, without the need for temperature changes. Superelasticity occurs when the nitinol is in its austenite phase at a temperature above its transformation temperature. When stress is applied, the austenite transforms into stress-induced martensite. This martensite is unstable at the higher temperature, so when the stress is removed, it immediately reverts to austenite, and the original shape is restored.

Manufacturing Process of Shape Memory Nitinol Ingots

Raw Material Preparation

The production of shape memory nitinol ingots begins with the careful selection and preparation of raw materials. High-purity nickel and titanium are essential to ensure the quality and performance of the final product. These raw materials are typically sourced in the form of pure metal bars or powders. The exact ratio of nickel to titanium is crucial in determining the properties of the nitinol ingot. Even small variations in composition can significantly affect the transformation temperatures and mechanical properties of the alloy. Therefore, precise weighing and mixing of the raw materials are paramount.

Melting and Casting Techniques

Once the raw materials are prepared, they are melted together to form the nitinol alloy. This process is typically carried out in a vacuum or inert atmosphere to prevent oxidation and contamination. Several melting techniques can be used, including vacuum arc remelting (VAR), vacuum induction melting (VIM), or electron beam melting (EBM). After melting, the molten alloy is cast into ingot molds. The casting process must be carefully controlled to ensure uniform composition and minimize defects such as segregation or porosity. Rapid solidification techniques may be employed to achieve a fine-grained structure and improve the homogeneity of the ingot.

Heat Treatment and Processing

Following casting, the nitinol ingots undergo a series of heat treatments and processing steps to optimize their shape memory and mechanical properties. These processes may include homogenization annealing to eliminate compositional variations, hot working to refine the grain structure, and cold working to introduce dislocations and improve strength. The final heat treatment, known as shape-setting, is crucial in determining the "memory" shape of the nitinol ingot. During this process, the ingot is constrained in the desired shape and heated to a specific temperature for a predetermined time. This treatment establishes the austenite crystal structure that the material will return to when heated above its transformation temperature.

Applications and Advantages of Shape Memory Nitinol Ingots

Medical Devices and Implants

Shape memory nitinol ingots have found extensive use in the medical field, particularly in the development of minimally invasive devices and implants. Their unique properties allow for the creation of self-expanding stents, which can be compressed into a small diameter for insertion into blood vessels and then expand to their pre-set shape when deployed. Orthodontic archwires made from nitinol provide a constant, gentle force for moving teeth, reducing the need for frequent adjustments. In orthopedics, nitinol-based bone staples can be cooled for easy insertion and then warm to body temperature, providing compression to aid in fracture healing.

Aerospace and Automotive Industries

The aerospace industry has embraced shape memory nitinol ingots for their potential in creating morphing structures and actuators. These materials can be used to develop adaptive wings that change shape in response to different flight conditions, improving aerodynamic efficiency. In automotive applications, nitinol-based actuators are being explored for use in engine components, suspension systems, and safety devices. The material's ability to operate silently and efficiently makes it an attractive alternative to traditional hydraulic or pneumatic systems.

Consumer Electronics and Robotics

The unique properties of shape memory nitinol ingots are also being harnessed in consumer electronics and robotics. In smartphones and tablets, nitinol wires can be used as compact, reliable actuators for camera focus mechanisms or haptic feedback systems. In robotics, nitinol-based artificial muscles offer the potential for creating more lifelike and efficient movement in humanoid robots. The material's high power-to-weight ratio and ability to mimic natural muscle behavior make it an exciting prospect for advanced robotic systems.

Conclusion

Shape memory nitinol ingots represent a remarkable advancement in materials science, offering a unique combination of properties that continue to inspire innovation across numerous industries. From life-saving medical devices to cutting-edge aerospace technologies, the potential applications of these extraordinary alloys seem boundless. As research and development in this field progress, we can expect to see even more exciting and transformative uses for shape memory nitinol ingots in the future. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
