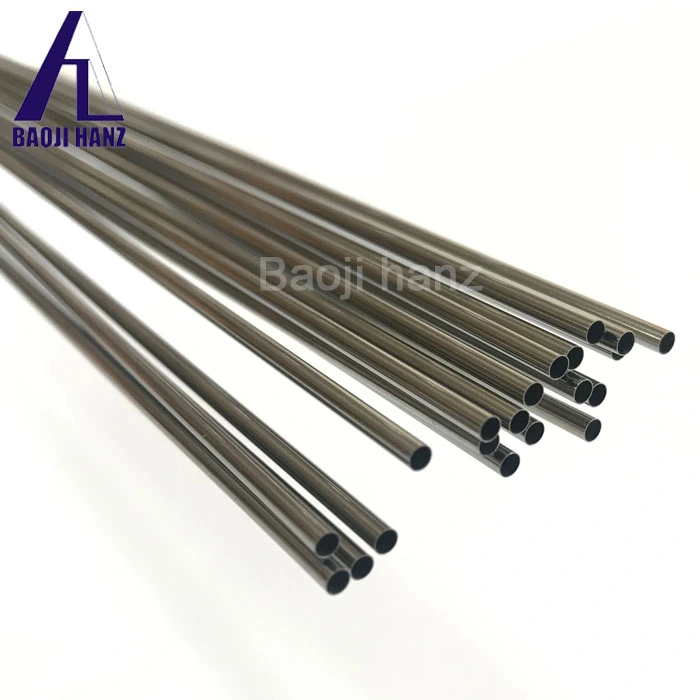

What is a shape memory nitinol tube?

Understanding Shape Memory Nitinol Tubes

Composition and Structure of Nitinol

Nitinol, the material at the heart of shape memory nitinol tube, is a nickel-titanium alloy renowned for its extraordinary properties. This alloy typically consists of approximately 55-56% nickel and 44-45% titanium, though exact compositions can vary depending on the desired characteristics. The unique atomic structure of nitinol allows for two distinct crystal phases: austenite and martensite. The transition between these phases is key to the shape memory effect. At higher temperatures, nitinol exists in its austenite phase, characterized by a cubic crystal structure. As the temperature decreases, it transitions to the martensite phase, which has a more flexible, twinned monoclinic structure. This phase transformation is reversible and occurs without a change in the macroscopic shape of the material, a phenomenon known as thermoelastic martensitic transformation.

The Shape Memory Effect Explained

The shape memory effect in nitinol tubes is a remarkable phenomenon that sets them apart from conventional materials. When a nitinol tube is deformed in its lower-temperature martensite phase, it retains this deformed shape. However, upon heating above its transformation temperature, the tube "remembers" and returns to its original austenite shape. This process occurs due to the reversible, diffusionless transformation between the two crystal structures. When heated, the atoms in the nitinol lattice rapidly rearrange themselves, reverting to their original austenite configuration. This transformation can generate significant force, allowing nitinol tubes to perform mechanical work as they return to their memorized shape..

Superelasticity: A Complementary Property

In addition to the shape memory effect, nitinol tubes also exhibit superelasticity, sometimes referred to as pseudoelasticity. This property allows the material to undergo large deformations and then return to its original shape upon unloading, without the need for temperature change. Superelasticity occurs when nitinol is in its austenite phase but at a temperature close to its transformation temperature. When stress is applied, the material undergoes a stress-induced transformation to martensite. This allows the tube to bend or compress significantly without permanent deformation. Once the stress is removed, the material immediately reverts to austenite, recovering its original shape.

Manufacturing Processes for Shape Memory Nitinol Tubes

Melting and Casting

The journey of a shape memory nitinol tube begins with the careful melting and casting of the nickel-titanium alloy. This process is crucial as the precise composition of the alloy determines its final properties. Vacuum induction melting is often employed to ensure high purity and homogeneity of the alloy. The molten nitinol is cast into ingots, which are then subjected to multiple remelting processes to further improve homogeneity and reduce impurities. The control of oxygen and carbon content during this stage is particularly critical, as these elements can significantly affect the shape memory properties of the final product.

Tube Drawing and Extrusion

The creation of nitinol tubes from the processed ingots involves sophisticated drawing or extrusion techniques. In the drawing process, the nitinol is pulled through a series of dies with progressively smaller diameters. This not only shapes the material into a tubular form but also work-hardens it, enhancing its strength and superelastic properties. Extrusion, on the other hand, involves forcing the nitinol through a die to create the tubular shape. This method is particularly useful for producing tubes with complex cross-sections or those with very thin walls. Both drawing and extrusion require precise control of temperature and deformation rates to maintain the desired microstructure and properties of the nitinol.

Heat Treatment and Shape Setting

The final and perhaps most crucial step in manufacturing shape nitinol tubes is heat treatment. This process, also known as shape setting, imparts the "memory" that allows the tube to return to its predetermined shape when heated. The nitinol tube is first constrained in the desired final shape using custom fixtures or mandrels. It is then subjected to a carefully controlled heat treatment process, typically at temperatures ranging from 400°C to 550°C. The exact temperature and duration of this treatment depend on the specific composition of the nitinol and the desired transformation temperatures.

Applications of Shape Memory Nitinol Tubes

Medical Devices and Implants

The biocompatibility and unique properties of shape memory nitinol tubes have revolutionized the field of medical devices and implants. In cardiovascular applications, these tubes are used to create self-expanding stents. These stents can be compressed into a small diameter for minimally invasive insertion into blood vessels. Once in place, the stent expands to its pre-set shape, opening the vessel and restoring blood flow. Nitinol tubes also find extensive use in orthopedic implants. Their superelasticity allows for the creation of bone plates and intramedullary rods that can flex with the natural movement of bones while providing necessary support. In dentistry, nitinol archwires made from these tubes apply consistent, gentle forces for orthodontic treatment, reducing patient discomfort and treatment time.

Aerospace and Automotive Industries

The aerospace industry has embraced nitinol tubes for their potential in creating morphing structures. These tubes can be used in aircraft wings or helicopter rotor blades, allowing them to change shape in response to different flight conditions, thereby optimizing performance and efficiency. In satellite technology, nitinol tubes are employed in deployable structures such as antennas and solar panels. These components can be compactly stored during launch and then expand to their full size once in orbit, significantly reducing payload volume and weight.

Consumer Products and Robotics

Nitinol tubes have found their way into numerous consumer products, adding functionality and durability. In eyewear, they are used to create flexible, nearly indestructible frames that can bend without breaking and return to their original shape. The field of robotics has also benefited from these smart materials. Nitinol tubes are used to create actuators and artificial muscles in soft robotics applications. Their ability to contract and expand in response to electrical stimuli or temperature changes allows for the creation of robots with more natural, fluid movements.

Conclusion

Shape memory nitinol tubes represent a remarkable fusion of material science and engineering ingenuity. Their unique ability to remember and return to a predetermined shape, combined with superelasticity, opens up a world of possibilities across various industries. From life-saving medical devices to innovative consumer products, these smart materials continue to push the boundaries of what's possible in product design and functionality. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
