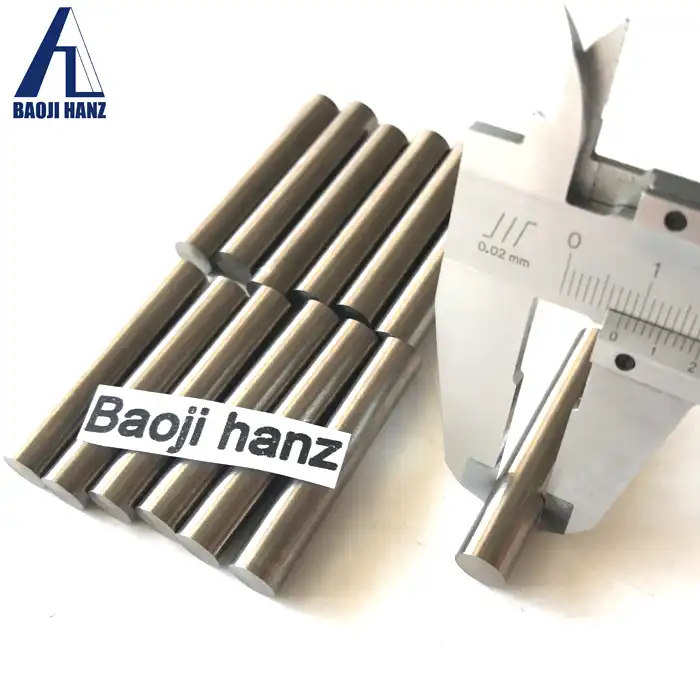

What is Nitinol ingot bar made of?

Nitinol ingot bar is a fascinating material composed primarily of nickel and titanium in nearly equal atomic percentages. This unique alloy, also known as NiTi or Ni-Ti, typically contains about 55-56% nickel and 44-45% titanium by weight. The precise composition of a nitinol ingot bar can be fine-tuned to achieve specific properties, such as transformation temperatures or superelasticity. These ingot bars serve as the raw material for various nitinol products, including wires, sheets, and tubes. The production of nitinol ingot bars involves sophisticated melting techniques like vacuum induction melting or vacuum arc remelting to ensure high purity and homogeneity. This careful manufacturing process results in a material that exhibits remarkable shape memory and superelastic properties, making nitinol ingot bars invaluable in industries ranging from medical devices to aerospace applications.

Composition and Properties of Nitinol Ingot Bars

Chemical Composition

The chemical composition of nitinol ingot bars is meticulously engineered to ensure that the alloy achieves the desired mechanical and functional properties. Nitinol is primarily composed of nickel and titanium, with the ratio of these two elements being the most critical factor influencing the alloy’s characteristics. Typically, the nickel content ranges from 50 to 60 percent, with the remainder being titanium. However, the addition of trace elements such as copper, iron, or niobium can further refine the material’s properties. For example, copper can influence the transformation temperature of nitinol, while iron and niobium can enhance its strength and resistance to oxidation. Even small variations in the nickel-to-titanium ratio can result in significant changes in the alloy’s transformation temperatures and mechanical behavior, making precise control of the composition essential for the desired performance.

Crystalline Structure

Nitinol’s remarkable properties are primarily attributed to its unique crystalline structure. At elevated temperatures, nitinol exists in a phase known as austenite, where it adopts a cubic crystal structure. Upon cooling, it transforms into a martensite phase with a monoclinic crystal structure. This phase change is fundamental to nitinol’s shape memory effect, where the material “remembers” its original shape and returns to it upon heating or application of stress. The transition between austenite and martensite is reversible and is driven by temperature and mechanical stress, which makes nitinol highly versatile. The microstructure of nitinol bars plays a crucial role in determining their mechanical properties, including their strength, elasticity, and ability to undergo the phase transition effectively.

Mechanical Properties

Nitinol ingot bars exhibit exceptional mechanical properties, which make them highly valuable in various engineering applications. One of the most notable properties is their high strength-to-weight ratio, which enables them to perform well in situations where traditional materials might be too heavy or ineffective. Nitinol also demonstrates excellent corrosion resistance, making it suitable for use in harsh environments, such as medical implants and marine applications. Additionally, nitinol is biocompatible, meaning it does not cause adverse reactions when in contact with biological tissue, making it an ideal material for medical devices such as stents, orthodontic wires, and surgical instruments. Furthermore, nitinol’s superelasticity allows it to undergo significant deformations under stress, yet return to its original shape once the stress is released. Combined with its shape memory effect, these mechanical properties make nitinol an indispensable material in industries ranging from aerospace to biomedical engineering, where traditional materials might fail to meet specific performance requirements.

Manufacturing Process of Nitinol Ingot Bars

Raw Material Selection

The production of high-quality nitinol ingot bars begins with the careful selection of raw materials. Ultra-pure nickel and titanium are essential to ensure the final product meets stringent quality standards. The purity of these base metals directly influences the performance and consistency of the nitinol alloy. Manufacturers often use electron beam melted titanium and electrolytically refined nickel to achieve the required purity levels.

Melting and Alloying Techniques

The melting process for nitinol ingot bars is critical and requires specialized equipment. Vacuum induction melting (VIM) is commonly used to create a homogeneous mixture of nickel and titanium. This process involves melting the raw materials in a vacuum or inert gas environment to prevent oxidation and ensure purity. Some manufacturers employ multiple melting cycles or combine VIM with vacuum arc remelting (VAR) to further refine the alloy and improve its homogeneity.

Solidification and Post-Processing

After melting, the nitinol alloy is carefully solidified into ingot form. The cooling rate and conditions during solidification significantly impact the ingot's microstructure and, consequently, its properties. Once solidified, the nitinol ingot bars undergo various post-processing steps. These may include homogenization heat treatments to ensure uniform composition throughout the ingot, as well as surface treatments to remove any impurities or oxides that may have formed during the manufacturing process.

Applications and Advantages of Nitinol Ingot Bars

Medical Devices

Nitinol ingot bars serve as the starting material for numerous medical devices. Their biocompatibility and unique properties make them ideal for applications such as stents, guidewires, and orthodontic arches. The superelasticity of nitinol allows for the creation of self-expanding stents that can be compressed for insertion and then expand to their predetermined shape once in place. This characteristic significantly reduces the invasiveness of many medical procedures.

Aerospace and Automotive Industries

In aerospace and automotive applications, nitinol ingot bars are transformed into components that leverage their shape memory and superelastic properties. These include actuators, vibration dampers, and thermal management systems. The high fatigue resistance and ability to operate across a wide temperature range make nitinol-derived parts valuable in these demanding environments. For instance, nitinol-based couplings and fasteners can simplify assembly processes and provide reliable, temperature-activated connections.

Consumer and Industrial Products

The versatility of nitinol ingot bars extends to various consumer and industrial products. Eyeglass frames that return to their original shape after bending, kink-resistant cellphone antennas, and temperature-responsive safety devices are just a few examples. In industrial settings, nitinol is used in pipe couplings, seals, and valves that can operate in extreme conditions. The material's ability to undergo large deformations without permanent damage makes it an excellent choice for applications requiring repeated stress cycles or shape changes.

Conclusion

Nitinol ingot bars represent a remarkable fusion of nickel and titanium, resulting in a material with extraordinary properties. Their unique composition and structure enable a wide range of applications across multiple industries. As research continues, the potential for new uses of nitinol ingot bars continues to expand, promising innovative solutions to complex engineering challenges. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
