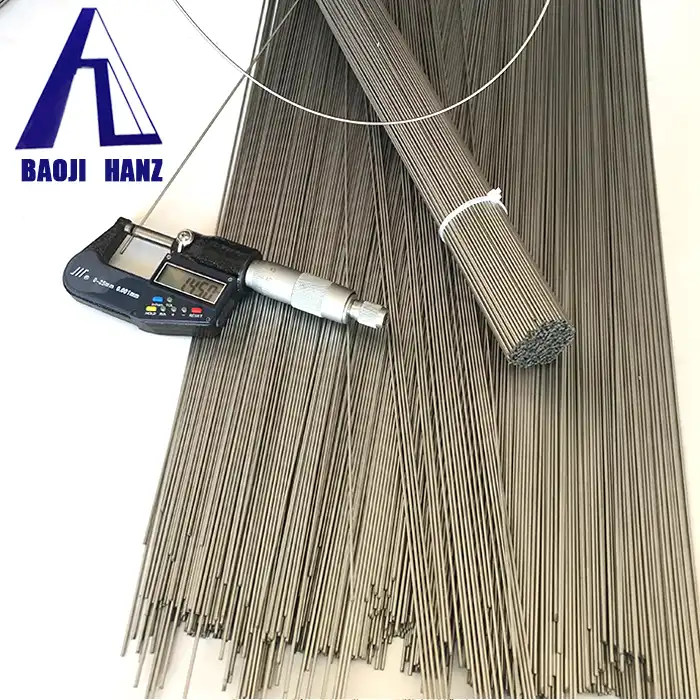

What is shape memory Nitinol straight wire?

The Science Behind Shape Memory Nitinol Straight Wire

Composition and Crystal Structure

Shape memory Nitinol straight wire is composed of nearly equal atomic percentages of nickel and titanium. This unique composition gives rise to its extraordinary properties. At the atomic level, Nitinol exists in two distinct crystal structures: austenite and martensite. The transition between these phases is the key to understanding the shape memory effect. Austenite, the high-temperature phase, has a cubic crystal structure. This phase is stable at higher temperatures and is associated with the wire's "remembered" shape. Martensite, on the other hand, is the low-temperature phase with a more complex crystal structure. In this phase, the wire can be easily deformed without permanent damage to the atomic bonds.

The Shape Memory Effect

The shape memory effect in Nitinol straight wire is a result of the reversible solid-state phase transformation between austenite and martensite. When the wire is cooled from its austenitic state, it transforms into martensite without changing its shape. This process is called twinning. The martensitic Nitinol can then be easily deformed. Upon heating, the deformed martensite begins to transform back into austenite. As this transformation occurs, the wire "remembers" its original shape and returns to it. This process can be repeated numerous times without degradation of the material, making shape memory Nitinol straight wire an ideal choice for applications requiring repeated shape changes.

Superelasticity

Another fascinating property of shape memory Nitinol straight wire is superelasticity. This phenomenon occurs when the wire is in its austenitic phase at a temperature above its transformation temperature. In this state, the wire can undergo large deformations and still return to its original shape upon unloading, without the need for temperature change. Superelasticity is a result of stress-induced martensite formation. When stress is applied to austenitic Nitinol, it transforms into martensite. This transformation allows the wire to accommodate large strains. When the stress is removed, the martensite reverts to austenite, and the wire returns to its original shape.

Applications of Shape Memory Nitinol Straight Wire

Medical Devices

The biocompatibility and unique properties of shape memory Nitinol straight wire have made it an invaluable material in the medical field. Its ability to change shape in response to body temperature has led to numerous innovative applications. In orthodontics, Nitinol wires are used as arch wires in braces. These wires exert a constant, gentle force to move teeth, reducing the need for frequent adjustments. The superelasticity of Nitinol allows for large deflections without permanent deformation, making it ideal for this application. Cardiovascular devices have also benefited from shape memory Nitinol straight wire. Stents made from Nitinol can be compressed into a small diameter for insertion into blood vessels. Once in place, the stent expands to its pre-set shape, opening the blocked vessel. The superelasticity of Nitinol allows these stents to flex with the natural movement of blood vessels, reducing the risk of damage or re-blockage.

Aerospace and Actuators

The aerospace industry has embraced shape memory Nitinol straight wire for its potential in creating morphing structures and smart materials. These wires can be used to create actuators that change shape or position in response to temperature changes, offering lightweight and compact alternatives to traditional hydraulic or pneumatic systems. In aircraft, Nitinol-based actuators have been explored for use in variable geometry airfoils, allowing for real-time adjustment of wing shape to optimize performance under different flight conditions. The high power-to-weight ratio of Nitinol actuators makes them particularly attractive for aerospace applications where weight is a critical factor. Shape memory Nitinol straight wire has also found applications in spacecraft. Its ability to deploy structures in a controlled manner has been utilized in the design of solar arrays and antennas that can be compactly stored during launch and then expanded once in orbit.

Consumer Products and Robotics

The unique properties of shape memory Nitinol straight wire have led to innovative applications in consumer products and robotics. In the realm of consumer goods, Nitinol has been used in everything from eyeglass frames to underwire bras, providing durability and comfort through its superelastic properties. In robotics, shape memory Nitinol straight wire offers exciting possibilities for creating soft, flexible robots that can navigate complex environments. These wires can act as artificial muscles, contracting when heated and relaxing when cooled. This property allows for the creation of robots that can change shape and adapt to their surroundings, opening up new frontiers in fields such as search and rescue operations and minimally invasive surgery. The fashion industry has also found uses for Nitinol wire in creating smart textiles. Garments incorporating Nitinol can change shape or texture in response to temperature changes, leading to clothing that can adapt to different weather conditions or create interesting visual effects.

Manufacturing and Processing of Shape Memory Nitinol Straight Wire

Alloy Production

The production of shape memory Nitinol straight wire begins with the careful preparation of the alloy. The exact ratio of nickel to titanium is crucial in determining the transformation temperature and properties of the final product. Typically, the alloy consists of approximately 55-56% nickel and 44-45% titanium by weight. The raw materials are melted together in a vacuum or inert gas environment to prevent oxidation. This process often uses vacuum induction melting or vacuum arc remelting techniques to ensure high purity and homogeneity of the alloy. The molten alloy is then cast into ingots. These ingots undergo further processing to refine the microstructure and remove any impurities. Hot working techniques such as forging or rolling are employed to break down the cast structure and improve the material's properties.

Wire Drawing Process

The transformation of Nitinol ingots into straight wire involves a series of carefully controlled steps. The process begins with hot working to reduce the ingot to a smaller diameter rod. This is typically done through rotary swaging or hot rolling. Once the rod reaches a certain diameter, it undergoes cold drawing. In this process, the rod is pulled through a series of progressively smaller dies to reduce its diameter. Between drawing steps, the wire may be annealed to relieve internal stresses and maintain workability. The final stages of wire production involve precise control of the wire's diameter and surface finish. Fine drawing and straightening processes are used to achieve the desired dimensions and straightness. Surface treatments such as chemical etching or electropolishing may be applied to improve the wire's surface quality and biocompatibility.

Heat Treatment and Shape Setting

Heat treatment is a crucial step in the production of shape memory Nitinol straight wire. This process sets the wire's "memory" shape and determines its transformation temperature. The wire is constrained in the desired shape and then heated to a high temperature, typically between 400°C and 550°C, for a specific duration. The exact parameters of the heat treatment process depend on the desired properties of the final product. Factors such as heating temperature, duration, and cooling rate all influence the wire's performance. Precise control of these parameters is essential to achieve consistent and reliable shape memory behavior. For applications requiring complex shapes, the wire may undergo multiple shape-setting procedures. This allows for the creation of Nitinol components with intricate geometries that can transform between different predetermined shapes.

Conclusion

Shape memory Nitinol straight wire represents a remarkable advancement in materials science, offering unique properties that have revolutionized numerous industries. Its ability to remember and return to a predetermined shape, combined with its superelasticity, biocompatibility, and durability, makes it an invaluable material in fields ranging from medicine to aerospace. As research continues, we can expect to see even more innovative applications of this extraordinary alloy in the future. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
