What is superelastic nitinol foil?

Understanding Superelastic Nitinol Foil

Composition and Structure of Superelastic Nitinol

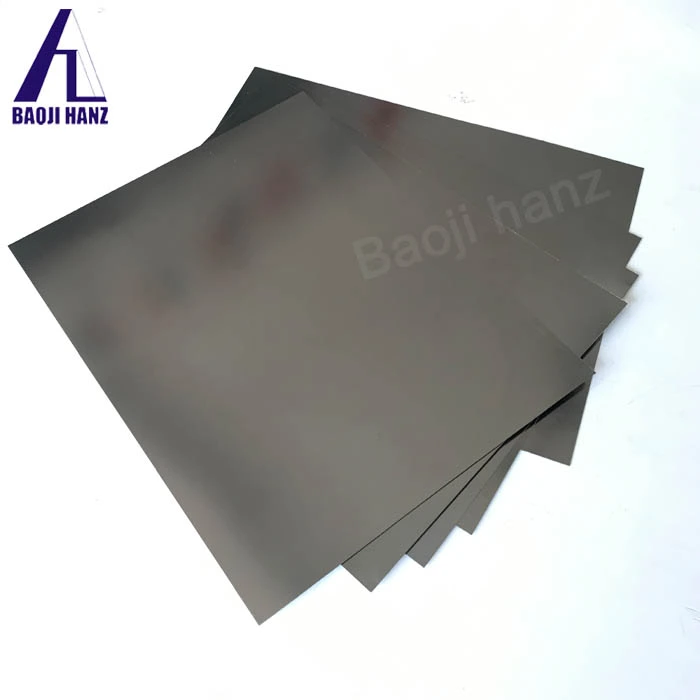

Super elastic nitinol foil is composed of a nearly equiatomic mixture of nickel and titanium. This unique composition gives rise to its extraordinary properties. The crystal structure of nitinol undergoes a reversible phase transformation between austenite and martensite, which is the key to its superelastic behavior. At higher temperatures, the austenite phase dominates, while at lower temperatures or under stress, the material transforms into the martensite phase. The precise ratio of nickel to titanium can be adjusted to fine-tune the transformation temperatures and mechanical properties of the alloy. Typically, the composition ranges from 50.6% to 51.0% nickel by atomic percentage. This slight variation can have a significant impact on the material's behavior, allowing manufacturers to tailor the foil for specific applications.

Unique Properties of Superelastic Nitinol Foil

Superelastic nitinol foil possesses an array of exceptional properties that set it apart from conventional materials:

- Superelasticity: The ability to undergo large deformations and return to its original shape upon unloading.

- Shape Memory Effect: The capability to recover its pre-deformed shape when heated above its transformation temperature.

- High Fatigue Resistance: The capacity to withstand repeated loading and unloading cycles without failure.

- Biocompatibility: Excellent compatibility with human tissues, making it ideal for medical implants.

- Corrosion Resistance: Superior resistance to various corrosive environments.

- Thermal Memory: The ability to remember and return to a pre-set shape when heated.

Manufacturing Processes for Superelastic Nitinol Foil

The production of superelastic nitinol foil involves several sophisticated processes:

Melting and Alloying: High-purity nickel and titanium are precisely combined in a vacuum arc remelting furnace to ensure homogeneity and minimize impurities.

- Hot Working: The ingot is then hot-forged and rolled to achieve the desired thickness and improve its microstructure.

- Cold Rolling: Multiple passes of cold rolling further reduce the thickness and enhance the mechanical properties of the foil.

- Heat Treatment: Carefully controlled heat treatments are applied to set the shape memory and superelastic properties.

- Surface Treatment: The foil may undergo electropolishing or other surface treatments to improve its finish and performance.

Applications of Superelastic Nitinol Foil

Medical and Dental Applications

The biocompatibility and unique mechanical properties of superelastic nitinol foil make it an invaluable material in the medical field:

- Stents: Super elastic nitinol foil is used to create self-expanding stents that can be compressed for insertion and then expand to their pre-set shape once in place.

- Orthodontic Archwires: The superelasticity of nitinol foil allows for the creation of braces that apply consistent, gentle force over extended periods.

- Surgical Instruments: Flexible and durable nitinol tools enable minimally invasive procedures.

- Implantable Devices: Shape memory properties are utilized in devices like atrial septal defect occluders.

Aerospace and Automotive Applications

In the aerospace and automotive industries, superelastic nitinol foil finds numerous applications:

- Actuators: Nitinol-based actuators can replace complex mechanical systems for tasks like adjusting wing flaps or controlling car mirrors.

- Vibration Damping: The high energy absorption capacity of nitinol foil makes it excellent for reducing vibrations in aircraft and vehicles.

- Thermal Management: Shape memory properties are used in temperature-activated louvers and heat exchangers.

- Seals and Gaskets: Nitinol foil can create adaptive seals that maintain their effectiveness under varying conditions.

Consumer Electronics and Robotics

The unique properties of superelastic nitinol foil are increasingly being leveraged in consumer electronics and robotics:

- Antennas: Compact, deployable antennas for mobile devices can be created using nitinol foil.

- Haptic Feedback: The rapid shape change capabilities of nitinol enable advanced tactile interfaces.

- Microactuators: Tiny nitinol actuators power miniature robotic systems and microelectromechanical systems (MEMS).

- Flexible Displays: Nitinol foil can be used as a substrate for bendable and rollable screens.

Challenges and Future Prospects of Superelastic Nitinol Foil

Current Limitations and Ongoing Research

Despite its remarkable properties, super elastic nitinol foil faces several challenges:

- Cost: The complex manufacturing process and high-purity raw materials make nitinol foil relatively expensive.

- Processing Difficulties: Achieving consistent properties across large batches can be challenging.

- Limited High-Temperature Performance: The superelastic properties diminish at elevated temperatures.

- Fatigue in Extreme Conditions: While highly fatigue-resistant, nitinol can still fail under certain extreme cyclic loading conditions.

Emerging Applications and Industries

The unique properties of superelastic nitinol foil continue to inspire new applications across various industries:

- Energy Harvesting: Nitinol-based devices that convert thermal energy into mechanical work for power generation.

- Smart Textiles: Integration of nitinol foil into fabrics for adaptive clothing and protective gear.

- Architectural Uses: Self-adjusting shading systems and earthquake-resistant structures utilizing nitinol's properties.

- Space Exploration: Deployable structures and adaptive components for spacecraft and satellites.

Environmental and Sustainability Considerations

The environmental impact and sustainability of superelastic nitinol foil are important considerations:

- Recyclability: While nitinol can be recycled, the process is complex due to the tight control required over the alloy composition.

- Energy Efficiency: The shape memory effect of nitinol can be harnessed for energy-saving applications in buildings and industrial processes.

- Longevity: The durability and fatigue resistance of nitinol foil contribute to longer-lasting products, potentially reducing waste.

- Raw Material Sourcing: Efforts are being made to develop more sustainable methods of extracting and processing nickel and titanium.

Conclusion

Super elastic nitinol foil stands at the forefront of materials science, offering a unique combination of properties that continue to drive innovation across industries. As research advances and new applications emerge, this remarkable alloy is poised to play an increasingly vital role in shaping the technologies of tomorrow. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
