What is the difference between Ti-Ni1 Super Elastic Nitinol and other Nitinol alloys?

Composition and Microstructure of Ti-Ni1 Super Elastic Nitinol

Elemental Composition

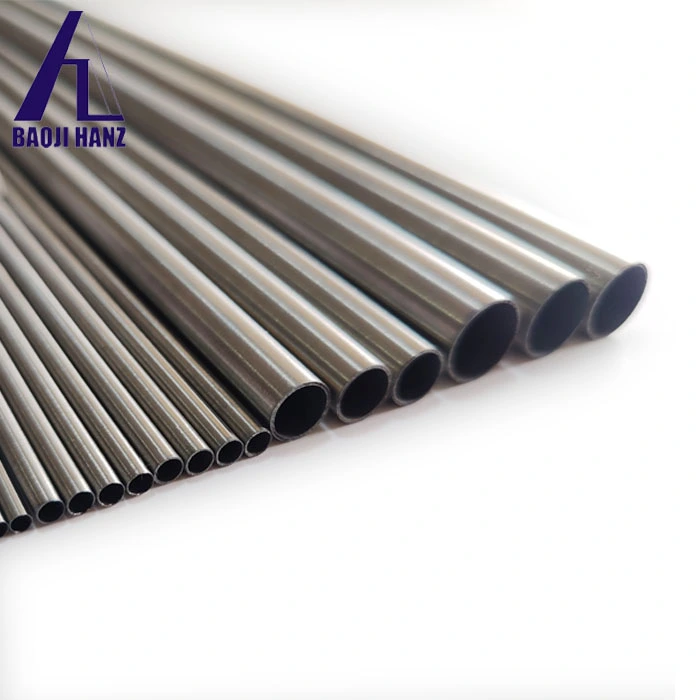

Ti-Ni1 Super Elastic Nitinol Tubeis a meticulously engineered alloy with a precise balance of titanium and nickel. The composition of this alloy typically consists of approximately 55.8% nickel and 44.2% titanium by weight. This specific ratio is crucial for achieving the desired superelastic properties that make Nitinol a unique and versatile material.The careful control over the elemental composition is essential to ensure the alloy's exceptional characteristics. While the primary constituents are titanium and nickel, the inclusion of trace elements, such as copper, iron, or niobium, may be intentionally incorporated to fine-tune the alloy's properties for specific applications. These minor additions can influence the transformation temperatures, mechanical behavior, and corrosion resistance of the Nitinol material, allowing engineers to tailor it to meet the unique requirements of different industries and end-uses.

Crystal Structure

The unique properties of Ti-Ni1 Super Elastic Nitinol Tube from its distinctive crystal structure. At room temperature, the alloy exists in an austenite phase, which is characterized by a cubic crystal structure. However, when subjected to stress or changes in temperature, the alloy undergoes a reversible martensitic transformation, transitioning to a monoclinic crystal structure.This phase transformation is the key mechanism behind the alloy's superelasticity and shape memory effect. The ability of the material to reversibly transform between the austenite and martensite phases, in response to external stimuli, is what gives Nitinol its remarkable abilities to store and recover deformation, as well as to remember and return to its original shape.The precise control over the crystal structure of it is crucial for optimizing its performance characteristics. By carefully managing the conditions during processing and heat treatment, manufacturers can ensure the alloy's crystal structure is tailored to the specific application requirements, enhancing its superelastic behavior, thermal response, or other desired properties.

Grain Size and Morphology

The grain size and morphology of Ti-Ni1 Super Elastic Nitinol play a crucial role in determining its mechanical properties. Through carefully controlled processing techniques, manufacturers are able to achieve a fine-grained microstructure with equiaxed grains in the alloy.This refined microstructure, characterized by a uniform distribution of small, equiaxed grains, contributes to the enhanced strength, fatigue resistance, and superelastic behavior of the Ti-Ni1 Super Elastic Nitinol. The smaller grain size and equiaxed morphology create a more homogeneous material structure, which helps to distribute stresses more evenly and reduces the likelihood of localized deformation or crack initiation.The optimization of the grain size and morphology is particularly important for the Ti-Ni1 Super Elastic Nitinol Tube, which is utilized in various applications that require flexibility and durability. The controlled microstructural features of the tubing allow for improved flexibility, kink resistance, and overall mechanical integrity, making it well-suited for medical devices, aerospace components, and other demanding applications.

Mechanical Properties and Performance Characteristics

Superelasticity and Stress-Strain Behavior

Ti-Ni1 Super Elastic Nitinol exhibits exceptional superelasticity, allowing it to undergo large deformations and return to its original shape upon unloading. This behavior is characterized by a unique stress-strain curve, featuring a plateau region during loading and unloading. The superelastic strain can reach up to 8% in Ti-Ni1 alloys, surpassing the capabilities of conventional Nitinol compositions. This remarkable property makes Ti-Ni1 Super Elastic Nitinol Tube an ideal choice for applications requiring extreme flexibility and shape recovery.

Fatigue Resistance and Durability

One of the standout features of Ti-Ni1 Super Elastic Nitinol is its superior fatigue resistance. The alloy can withstand millions of loading cycles without significant degradation in its mechanical properties. This exceptional durability is attributed to the alloy's unique microstructure and the reversible nature of its phase transformation. Ti-Ni1 Super Elastic Nitinol Tube components demonstrate remarkable longevity in applications subjected to repeated stress cycles, making them ideal for use in medical implants and aerospace actuators.

Temperature-Dependent Behavior

Ti-Ni1 Super Elastic Nitinol exhibits a wider temperature range for superelastic behavior compared to other Nitinol alloys. This expanded operational window allows for greater versatility in various environmental conditions. The alloy's austenite finish temperature (Af) can be precisely tailored during manufacturing to suit specific application requirements. This temperature-dependent behavior enables Ti-Ni1 Super Elastic Nitinol to maintain its superelastic properties across a broader range of temperatures, enhancing its reliability in diverse operating environments.

Applications and Advantages in Various Industries

Medical Devices and Implants

Ti-Ni1 Super Elastic Nitinol has revolutionized the medical device industry, particularly in the realm of minimally invasive procedures. The alloy's biocompatibility, combined with its superelastic properties, makes it an excellent choice for various medical applications. Ti-Ni1 Super Elastic Nitinol Tube is widely used in the manufacturing of stents, guidewires, and catheter systems. These devices benefit from the alloy's ability to navigate through complex anatomical structures while maintaining their shape and functionality. Additionally, Ti-Ni1 Super Elastic Nitinol's excellent corrosion resistance in bodily fluids ensures long-term implant stability and patient safety.

Aerospace and Automotive Engineering

The aerospace and automotive industries have embraced Ti-Ni1 Super Elastic Nitinol for its unique combination of lightweight properties and exceptional mechanical performance. In aerospace applications, Ti-Ni1 Super Elastic Nitinol Tube is utilized in hydraulic and pneumatic systems, where its resistance to vibration and fatigue is crucial. The alloy's ability to dampen vibrations and absorb energy makes it an ideal material for noise reduction components in aircraft engines. In the automotive sector, Ti-Ni1 Super Elastic Nitinol finds applications in adaptive headlight systems, self-adjusting mirrors, and advanced suspension components, enhancing vehicle performance and safety.

Consumer Electronics and Wearable Technology

The miniaturization trend in consumer electronics and the rise of wearable technology have created new opportunities for Ti-Ni1 Super Elastic Nitinol. The alloy's flexibility and shape memory properties make it an excellent choice for compact antennas, microactuators, and flexible display components. Ti-Ni1 Super Elastic Nitinol Tube is used in the production of ultra-thin, bendable electronic devices that can withstand repeated deformations without compromising functionality. In wearable technology, the alloy's biocompatibility and durability make it suitable for smart clothing applications, where it can be integrated into fabrics to provide sensing and actuation capabilities.

Conclusion

Ti-Ni1 Super Elastic Nitinol Tube stands out as a superior alloy among Nitinol compositions, offering unparalleled superelasticity, fatigue resistance, and versatility. Its unique properties make it invaluable across various industries, from medical devices to aerospace engineering. As research continues, Ti-Ni1 Super Elastic Nitinol promises to drive innovation in materials science and engineering applications. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
