What is the process for shaping or machining nitinol ingots?

Hot Working of Shape Memory Nitinol Ingots

Hot working is a fundamental process in shape memory nitinol ingots, allowing for significant deformation and forming of the material at elevated temperatures. This method takes advantage of nitinol's increased malleability when heated, enabling more extensive shaping operations.

Temperature Considerations for Hot Working

The temperature range for hot working nitinol typically falls between 600°C and 950°C. This elevated temperature reduces the material's yield strength and increases its ductility, facilitating easier deformation. However, precise temperature control is crucial to prevent undesirable microstructural changes or oxidation that could compromise the alloy's shape memory properties.

Hot Forging Techniques

Hot forging is a prevalent method for shaping nitinol ingots. This process involves applying compressive forces to the heated material using specialized dies or hammers. The forging operation can be performed using hydraulic presses, mechanical presses, or hammer forges, depending on the desired shape complexity and production volume. Hot forging allows for the creation of near-net-shape components, reducing the need for extensive machining later in the production process.

Extrusion of Nitinol Ingots

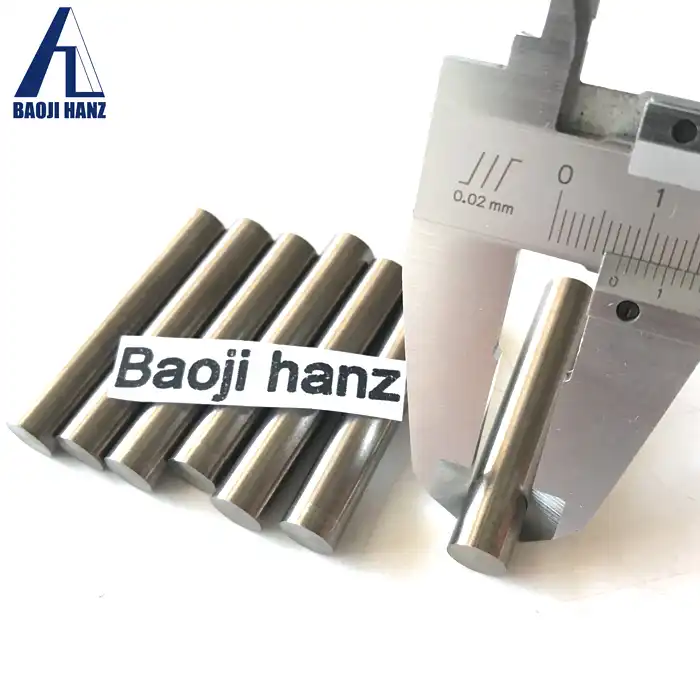

Extrusion is another hot working technique used to shape nitinol ingots into long, continuous profiles. In this process, the heated ingot is forced through a die with a specific cross-sectional shape. Extrusion is particularly useful for producing nitinol rods, tubes, and wires, which serve as starting materials for many applications. The extrusion process requires careful control of temperature, pressure, and die design to ensure uniform material flow and maintain the desired microstructure.

Cold Working and Heat Treatment of Nitinol

Cold working is an essential step in the shape memory nitinol ingots, often following hot working operations. This method involves deforming the material at temperatures below its recrystallization point, typically at room temperature or slightly elevated temperatures.

Cold Drawing of Nitinol Wire

Cold drawing is a widely used technique for producing nitinol wire with precise dimensions and enhanced mechanical properties. The process involves pulling the material through a series of progressively smaller dies, reducing its cross-sectional area and increasing its length. Cold drawing imparts work hardening to the nitinol, improving its strength and altering its superelastic behavior. However, careful control of the drawing parameters is necessary to prevent excessive work hardening, which could lead to brittleness.

Shape Setting and Heat Treatment

Shape setting is a crucial process in the production of shape memory nitinol components. After cold working, the nitinol is constrained in the desired final shape and subjected to a heat treatment process. This heat treatment, typically performed at temperatures between 400°C and 550°C, allows the material to "remember" its new shape. The specific temperature and duration of the heat treatment depend on the desired properties and the extent of prior cold work. Proper shape setting is essential for achieving the desired shape memory effect in the final product.

Annealing and Stress Relief

Annealing and stress relief heat treatments play a vital role in optimizing the properties of cold-worked nitinol. These processes help to relieve internal stresses, adjust the transformation temperatures, and fine-tune the superelastic behavior of the material. Annealing temperatures typically range from 300°C to 800°C, with the specific temperature and duration tailored to achieve the desired balance of strength, ductility, and shape memory characteristics.

Machining and Surface Finishing of Nitinol Components

Machining nitinol presents unique challenges due to its superelastic properties and work hardening tendency. Specialized techniques and tools are often required to achieve precise dimensions and surface finishes in nitinol components.

Electrical Discharge Machining (EDM)

Electrical Discharge Machining (EDM) is a non-contact machining process well-suited for shaping nitinol components. This technique uses electrical discharges to erode material from the workpiece, allowing for the creation of complex geometries without applying mechanical forces. EDM is particularly useful for producing intricate nitinol parts for medical devices, such as stents or orthodontic archwires. The process offers high precision and minimal distortion, making it ideal for working with shape memory nitinol ingots that have already undergone shape setting.

Laser Cutting and Welding

Laser technology has emerged as a valuable tool in the fabrication of nitinol components. Laser cutting allows for the rapid and precise shaping of thin nitinol sheets or tubes, enabling the production of complex patterns and structures. This technique is commonly used in the manufacturing of self-expanding stents and other medical implants. Additionally, laser welding provides a means of joining nitinol components with minimal heat-affected zones, preserving the material's shape memory properties in the weld area.

Surface Finishing and Passivation

The final surface treatment of nitinol components is crucial for enhancing their performance and biocompatibility. Electropolishing is a common technique used to improve the surface finish of nitinol parts, removing surface imperfections and creating a smooth, corrosion-resistant layer. This process also helps to remove the heat-affected zone created during machining operations. Following surface finishing, nitinol components often undergo passivation treatments to further enhance their corrosion resistance and biocompatibility. These treatments typically involve chemical processes that create a stable oxide layer on the surface of the material.

Conclusion

The process of shaping and machining nitinol ingots involves a complex interplay of hot working, cold working, heat treatment, and specialized machining techniques. By understanding and optimizing these processes, manufacturers can harness the full potential of shape memory nitinol ingots to create innovative components for a wide range of applications. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
