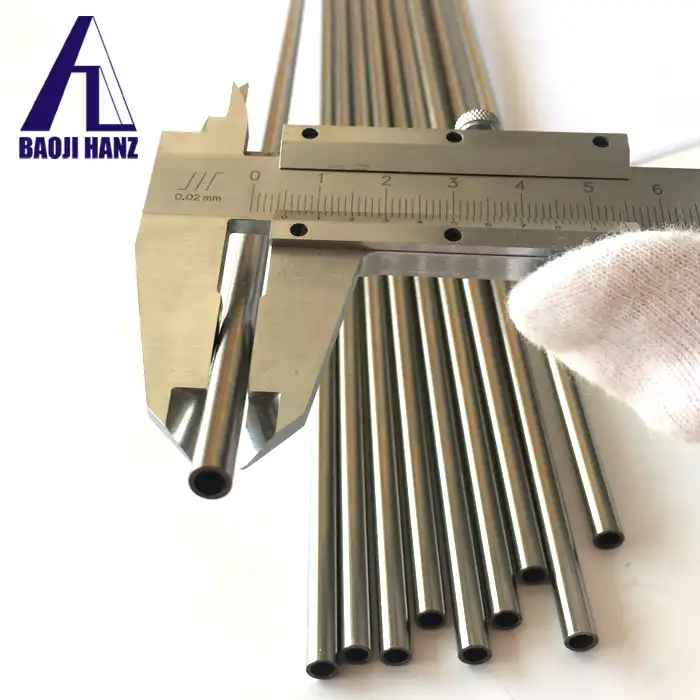

What is Ti-Ni1 Super Elastic Nitinol Tube?

Ti-Ni1 Super Elastic Nitinol Tube is an advanced material that combines the unique properties of nickel-titanium alloys with exceptional elasticity and shape memory characteristics. This innovative tube, composed of a specific ratio of titanium and nickel, exhibits remarkable flexibility and the ability to return to its original shape after significant deformation. The Ti-Ni1 Super Elastic Nitinol Tube represents a breakthrough in materials science, offering unparalleled performance in various applications ranging from medical devices to aerospace engineering. Its superelastic nature allows for extreme bending and twisting without permanent deformation, making it ideal for minimally invasive surgical instruments, orthodontic wires, and high-performance actuators. The tube's biocompatibility, corrosion resistance, and fatigue strength further enhance its versatility across industries. As we delve deeper into the world of Ti-Ni1 Super Elastic Nitinol Tube, we'll explore its composition, unique properties, and the myriad of applications that are revolutionizing multiple sectors.

Composition and Properties of Ti-Ni1 Super Elastic Nitinol Tube

Atomic Structure and Alloy Composition

The Ti-Ni1 Super Elastic Nitinol Tube is crafted from a precisely balanced alloy of nickel and titanium. This unique composition typically consists of approximately 55-56% nickel and 44-45% titanium by weight. The specific ratio is crucial in determining the tube's superelastic properties and transformation temperatures. At the atomic level, the alloy exhibits a crystal structure that can shift between two distinct phases: austenite and martensite. This phase transformation is the key to the material's extraordinary behavior.

Superelasticity Mechanism

The superelastic nature of Ti-Ni1 Nitinol tubes stems from their ability to undergo a reversible, stress-induced phase transformation. When subjected to mechanical stress, the austenitic crystal structure transforms into a martensitic structure, allowing for significant deformation. Upon removal of the stress, the material reverts to its original austenitic structure and shape. This process can occur repeatedly without fatigue, granting the tube its remarkable elasticity and shape recovery capabilities.

Thermal and Mechanical Characteristics

Ti-Ni1 Super Elastic Nitinol Tubes boast an impressive array of mechanical and thermal properties. They exhibit high strength-to-weight ratios, excellent fatigue resistance, and superior corrosion resistance compared to many conventional alloys. The tubes can withstand strains of up to 8% without permanent deformation, far surpassing the elastic limit of most metals. Additionally, their unique phase transformation characteristics allow for temperature-dependent shape memory effects, enabling the tubes to remember and return to a predetermined shape when heated above their transformation temperature.

Manufacturing Processes for Ti-Ni1 Super Elastic Nitinol Tube

Alloy Melting and Ingot Formation

The production of Ti-Ni1 Super Elastic Nitinol Tubes begins with the careful melting and alloying of high-purity nickel and titanium. This process typically employs vacuum induction melting or vacuum arc remelting techniques to ensure homogeneity and minimize impurities. The molten alloy is then cast into ingots, which serve as the raw material for subsequent processing steps. Precise control of the melting and casting conditions is crucial to achieve the desired composition and avoid contamination that could compromise the tube's properties.

Hot Working and Cold Drawing

The Nitinol ingots undergo a series of hot working processes, including forging and hot rolling, to break down the as-cast structure and refine the grain size. This step is critical in developing the alloy's mechanical properties and preparing it for further processing. The material is then subjected to multiple stages of cold drawing, which involves pulling the alloy through progressively smaller dies to reduce its diameter and increase its length. This cold working process not only shapes the material into a tubular form but also enhances its strength and superelastic characteristics.

Heat Treatment and Surface Finishing

The final stages of Ti-Ni1 Super Elastic Nitinol Tube production involve precise heat treatments to fine-tune the material's properties. These treatments, which may include annealing and aging processes, are carefully controlled to set the transformation temperatures and optimize the superelastic behavior. Surface finishing techniques such as electropolishing or chemical etching are often employed to improve the tube's surface quality, remove any oxide layers, and enhance its biocompatibility for medical applications. The combination of these manufacturing processes results in Ti-Ni1 Super Elastic Nitinol Tubes with exceptional performance and reliability.

Applications and Innovations of Ti-Ni1 Super Elastic Nitinol Tube

Medical Device Advancements

The Ti-Ni1 Super Elastic Nitinol Tube has revolutionized the field of medical devices, particularly in minimally invasive procedures. Its superelastic properties allow for the creation of self-expanding stents that can be compressed into a small diameter for insertion into blood vessels and then expand to their original shape once in place. These tubes are also used in guidewires for catheterization procedures, offering excellent flexibility and kink resistance. In orthodontics, Nitinol archwires provide consistent, gentle forces for tooth movement, improving patient comfort and treatment efficiency.

Aerospace and Automotive Innovations

The unique properties of Ti-Ni1 Super Elastic Nitinol Tubes have found innovative applications in the aerospace and automotive industries. In aircraft design, these tubes are utilized in vibration damping systems and adaptive wing structures that can change shape in response to varying flight conditions. Automotive engineers have incorporated Nitinol tubes into impact absorption systems and actuators for smart suspension systems, enhancing vehicle safety and performance. The material's high fatigue resistance and ability to withstand extreme temperatures make it ideal for these demanding applications.

Emerging Technologies and Future Prospects

As research into Ti-Ni1 Super Elastic Nitinol Tubes continues, new and exciting applications are emerging. In the field of robotics, these tubes are being explored for use in artificial muscles and flexible actuators, enabling more lifelike and responsive robotic movements. Environmental engineers are investigating Nitinol tubes for energy harvesting applications, utilizing their shape memory properties to convert small temperature differences into mechanical energy. The potential for Ti-Ni1 Super Elastic Nitinol Tubes in next-generation wearable technology, smart textiles, and adaptive structures promises to open up new frontiers in material science and engineering.

Conclusion

Ti-Ni1 Super Elastic Nitinol Tube represents a remarkable advancement in materials science, offering a unique combination of flexibility, strength, and shape memory properties. Its widespread adoption across medical, aerospace, and emerging technological fields underscores its versatility and potential for future innovations. As research continues, we can expect to see even more groundbreaking applications of this extraordinary material. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

References

1.Duerig, T. W., & Pelton, A. R. (2019). "Nitinol: The Material and its Properties." In Nitinol Devices and Components (pp. 1-35). Woodhead Publishing.

2.Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). "A review of shape memory alloy research, applications and opportunities." Materials & Design, 56, 1078-1113.

3.Yoneyama, T., & Miyazaki, S. (Eds.). (2019). "Shape Memory Alloys for Biomedical Applications." Woodhead Publishing.

4.Bansiddhi, A., Sargeant, T. D., Stupp, S. I., & Dunand, D. C. (2008). "Porous NiTi for bone implants: A review." Acta Biomaterialia, 4(4), 773-782.

5.Elahinia, M. H., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2012). "Manufacturing and processing of NiTi implants: A review." Progress in Materials Science, 57(5), 911-946.

6.Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). "Stimulus-responsive shape memory materials: A review." Materials & Design, 33, 577-640.
